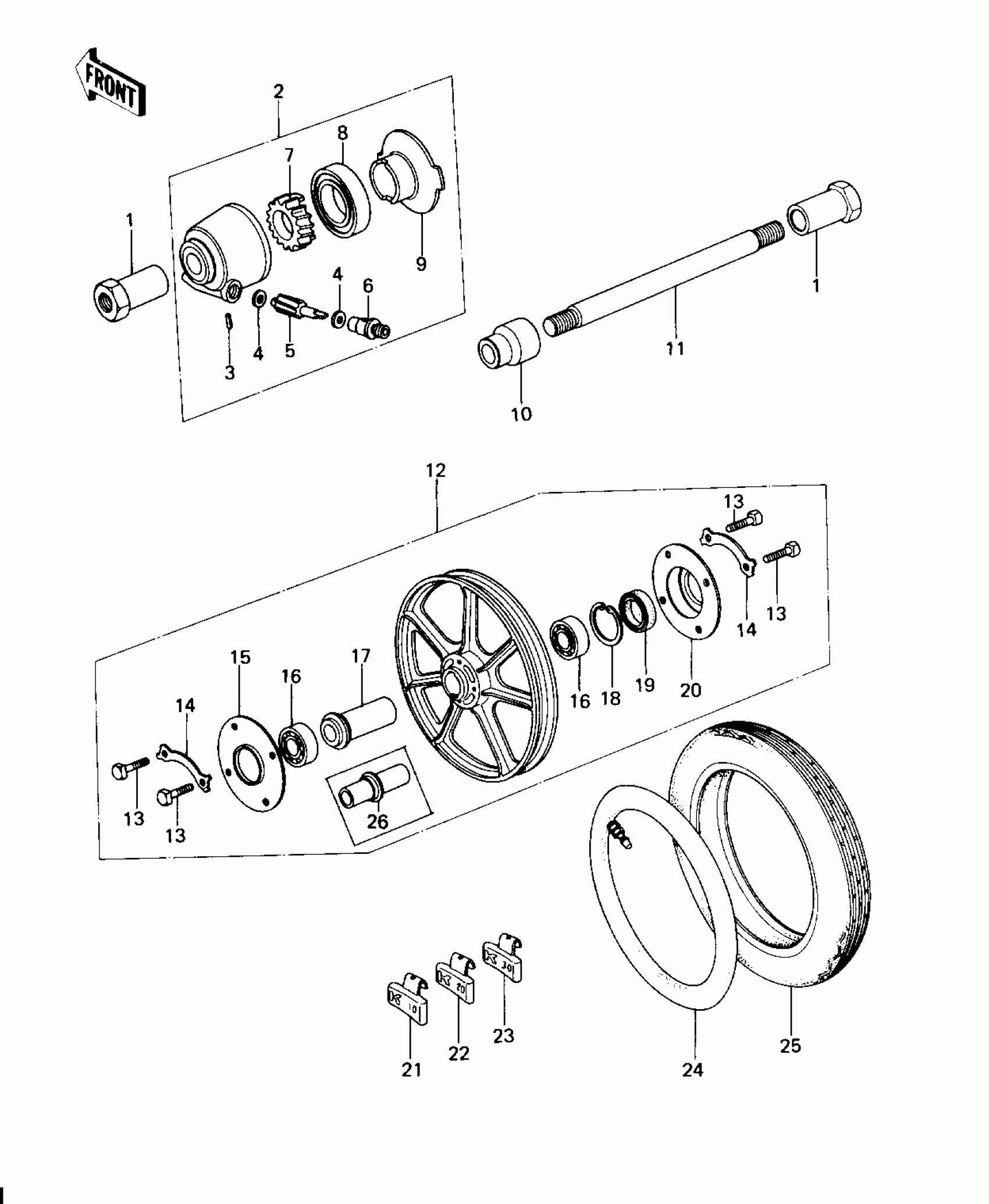

Kawasaki SR FRONT WHEEL/TIRE/HUB Diagram

#

Description
Price

1

COLLAR,FRONT AXLE

41069-033

Unavailable

2

GEAR BOX ASSY

41078-008

Unavailable

3

BUSH SPEEDMETER CABLE

41062-001

$10.00

4

WASHER,5.1X9X0.4

41063-001

$4.17

5

PINION,SPEEDOMETER

41060-017

Unavailable

6

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66

7

GEAR-METER SCREW,26T

41059-026

$43.35

8

UNAVAILABLE IN PRICE BOOK

654A304206

Unavailable

9

RECEIVER,GEAR

41064-013

Unavailable

10

COLLAR,FRONT AXLE

41069-032

Unavailable

11

AXLE,FRONT

41068-049

$135.58

12

SOLID WHEEL ASSY,FRNT

41073-1067

$847.80

12

SOLID WHEEL ASSY,FRNT

41073-1067

$847.80

13

BOLT

92001-158

Unavailable

14

WASHER,LOCK

92088-023

$10.87

15

DUST COVER

41042-014

Unavailable

16

BEARING-BALL,#6203ZZC3

601B6203ZZ

Unavailable

16

BEARING-BALL,#6203ZC3

601B6203Z

$26.08

17

COLLAR,FR HUB BEARIN

92027-1043

Unavailable

18

RING-SNAP,40MM

92033-1040

$4.45

19

OIL SEAL

654A254008

$24.19

20

DUST COVER

41042-015

Unavailable

21

BALANCER-WHEEL,10G

41075-1011

Unavailable

22

BALANCER-WHEEL,20G

41075-1012

Unavailable

23

BALANCER-WHEEL,30G

41075-1013

Unavailable

24

*** N.L.A.*** (Canada)

41022-030

Unavailable

25

TIRE 350H-19 F6 4PR

41002-1019

$136.80

26

COLLAR,BRG

41039-028

Unavailable
