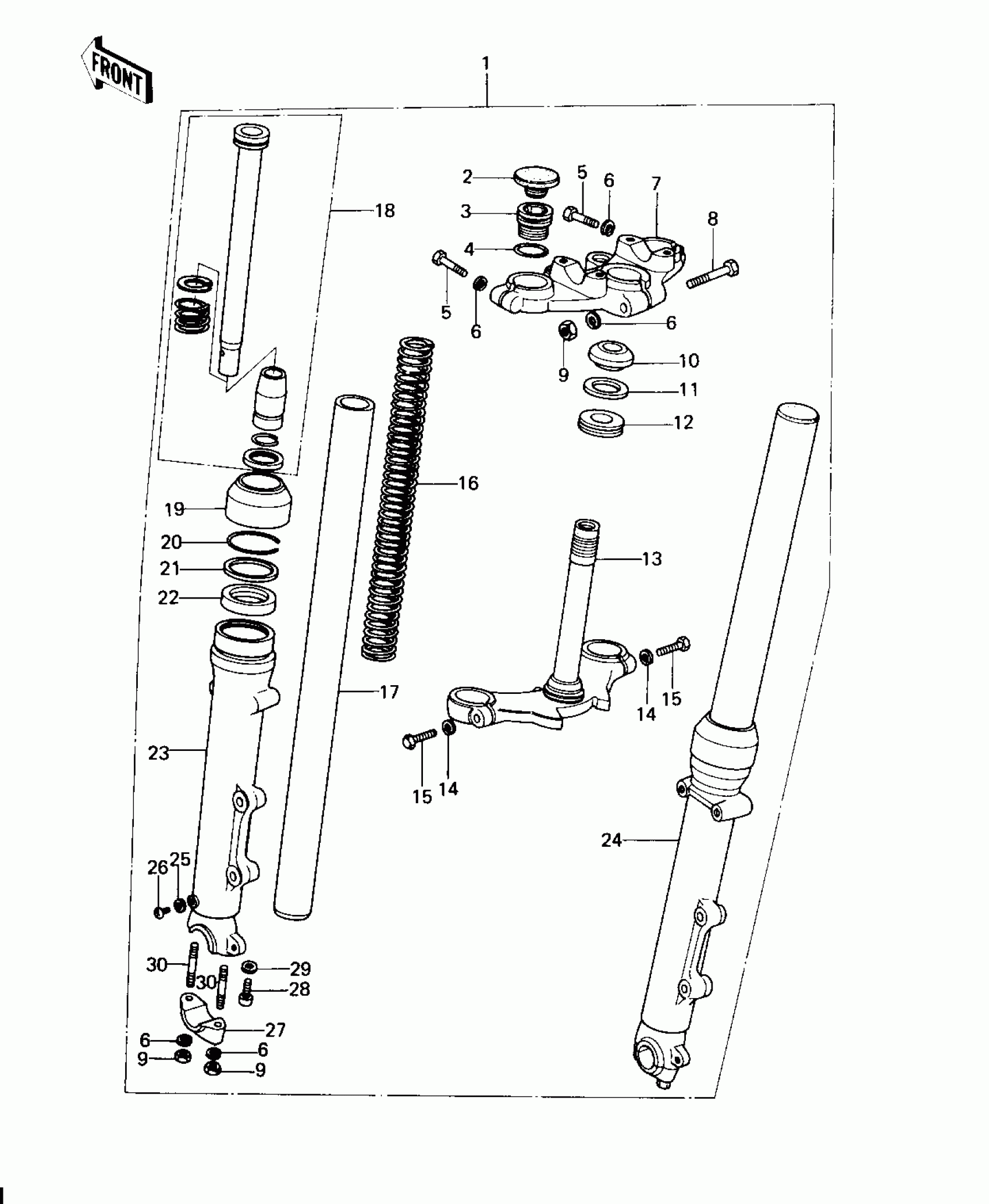

Kawasaki SR FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT

44001-1200

$945.07

2

CAP,RUBBER

11012-1017

$11.49

3

SEAT-FORK SPRING

44029-1046

$20.24

4

RING-O,FORK TOP

92055-1012

$8.50

5

BOLT-HEX HEAD.8M/M

44041-045

$23.27

6

WASHER SPRING 8MM

461F0800

Unavailable

7

HEAD,STEERING STEM

44039-076

$214.50

8

BOLT-STEERING STEM HD

44041-042

Unavailable

9

NUT,LOCK,8MM

92015-1124

$5.42

10

RACE,STEERING STEM BEARING

92047-012

$13.24

11

WASHER,30.5X50X0.6

92022-231

$4.69

12

SEAL-OIL,STEERING STEM

92056-003

$8.86

13

STEM,STEERING

44037-107

$453.37

14

WASHER-SPRING,12MM

461F1200

Unavailable

15

BOLT-HEX HEAD,12X36

92003-064

$23.27

16

SPRING,FORK

44026-1012

$73.92

17

TUBE,FORK INNER

44013-1011

$291.02

18

CYLINDER-FORK

44022-1009

$94.97

19

DUST SHEILD,FORK

44010-032

$39.46

20

CIRCLIP-OIL SEAL FIT

44044-012

$29.44

21

WASHER-OIL SEAL FIT

44043-044

$12.29

22

SEAL-OIL,FORK OUTER PIPE

92049-1216

$23.21

23

TUBE,LH,FORK OUTER

44005-1012

$220.81

24

TUBE,RH,FORK OUTER

44006-1012

$214.03

25

GASKET,FORK DRAIN PLUG

44045-002

$5.18

26

SCREW PAN HEAD 4X8

220B0408

Unavailable

27

HOLDER,FRONT AXLE

44063-014

Unavailable

28

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

29

GASKET

44045-057

$4.86

30

STUD,8X35

92004-1009

$6.38
