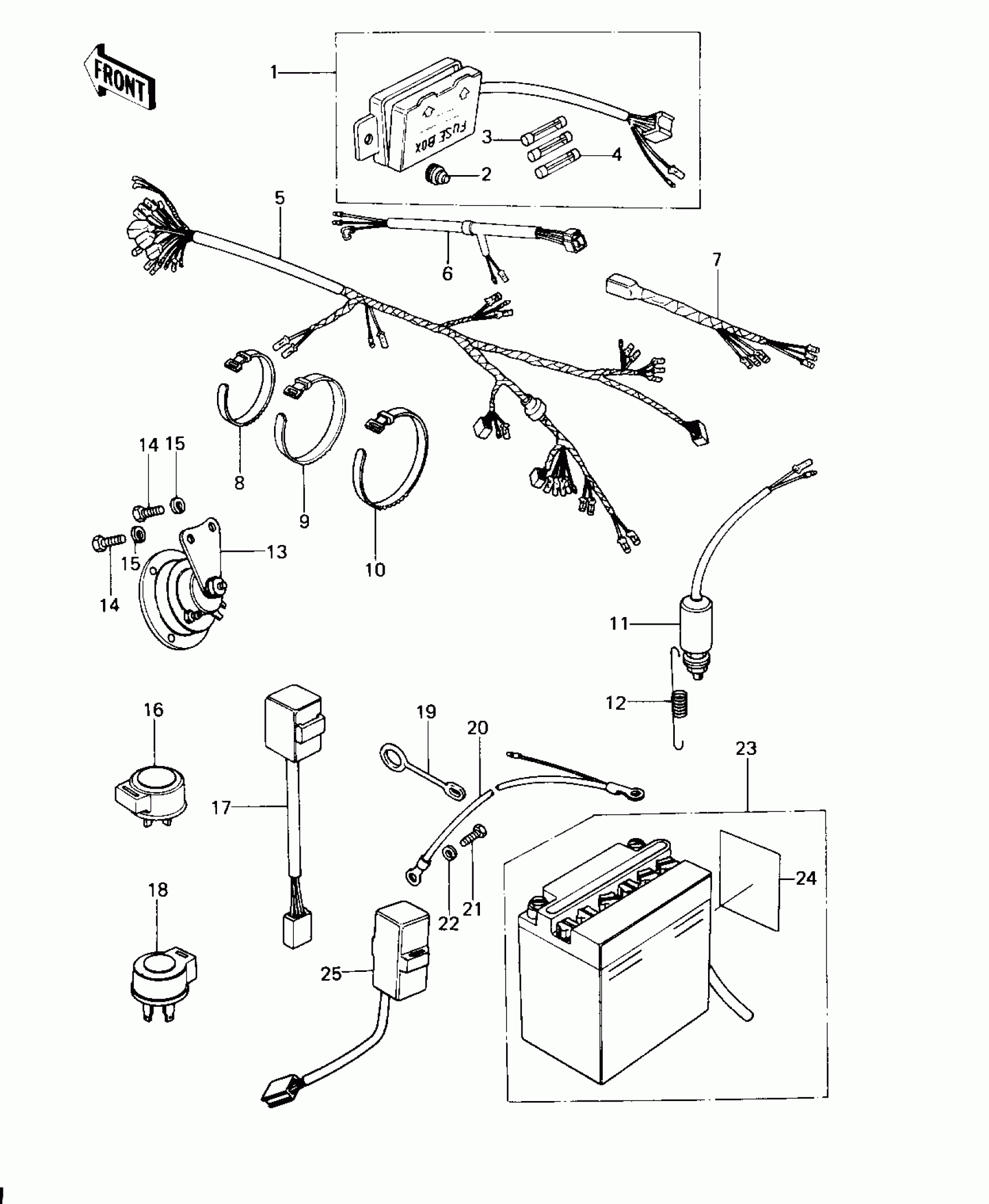

Kawasaki SR CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

FUSE ASSY

26004-1002

$103.17

2

DAMPER,FUSE

92075-279

Unavailable

3

FUSE,20A,L=25

26006-005

$3.86

4

FUSE,10A,L=25

26006-003

$3.59

5

HARNESS,MAIN

26001-1027

$342.88

5

HARNESS,MAIN

26001-1061

Unavailable

6

HARNESS,CENTER

26001-1022

$28.12

7

WIRING HARNESS,REAR

26002-063

$27.49

8

BAND,L=123

92072-030

$3.81

8

BAND,L=123

92072-030

$3.81

9

BAND,L=149

92072-031

$3.81

10

BAND,L=186

92072-056

$3.81

11

SWITCH-BRAKE LAMP

27010-017

Unavailable

12

SPRING BRAKE LAMP SW

27011-009

Unavailable

13

HORN

27003-076

Unavailable

14

BOLT-UPSET,6X16

112G0616

Unavailable

15

WASHER SPRING 8MM

461F0800

Unavailable

16

RELAY,TURN SIGNAL

27002-016

Unavailable

17

SWITCH,OUTAGE,INDICTR

28019-001

Unavailable

18

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

19

CLAMP,OVER FLOW PIPE

92037-134

$11.03

20

WIRE,BATTERY GROUND

26010-049

Unavailable

21

BOLT,6X10

92001-137

$5.66

22

WASHER SPRING 6MM

461F0600

Unavailable

23

YUA BAT YB10L-A2

26012-041

$55.23

24

LABEL-WARNING,BATTERY

56040-1036

Unavailable

25

SWITCH,FUEL CHECK

27010-1015

$64.58
