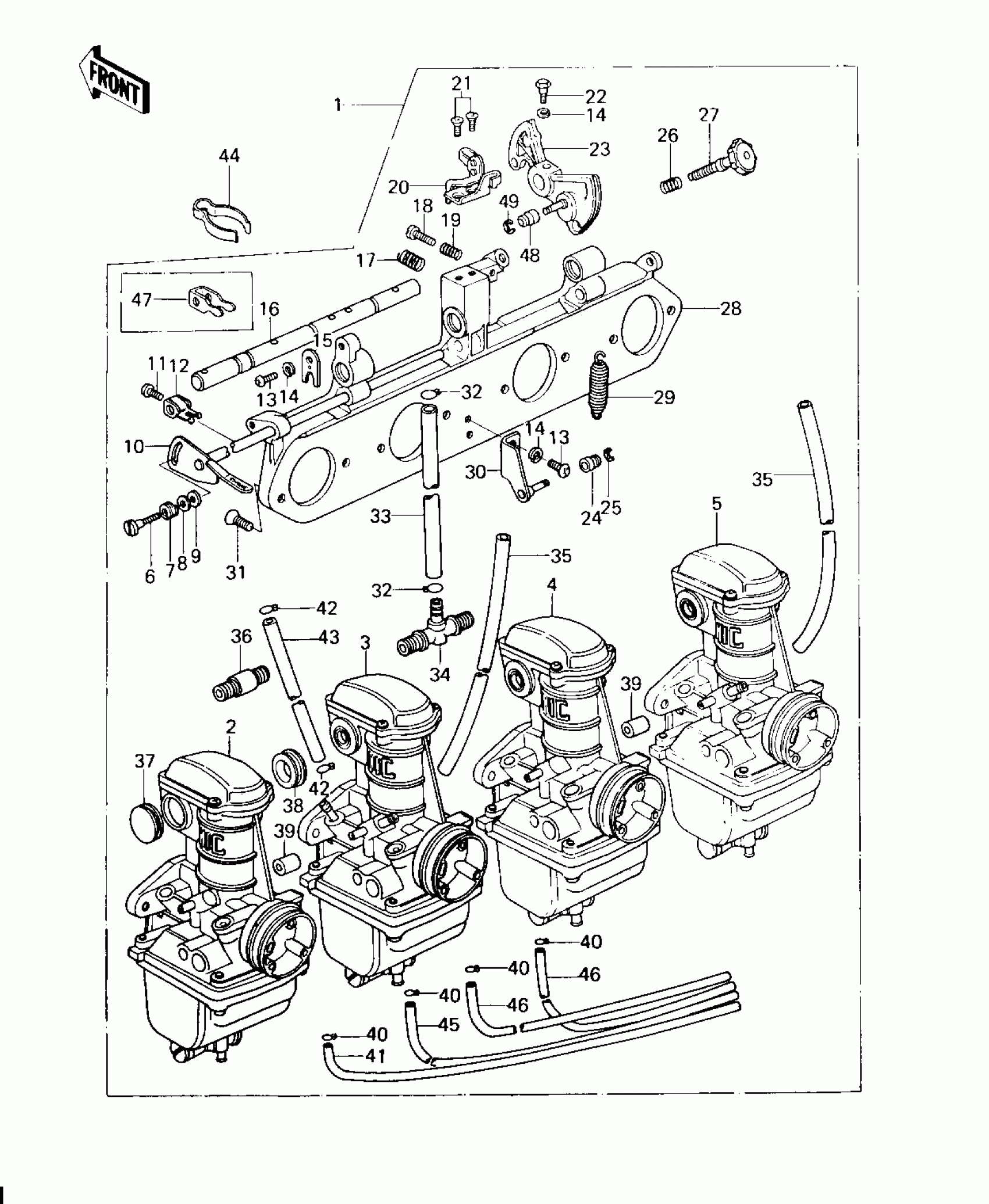

Kawasaki SR CARBURETOR ASSY Diagram
#
Description
Price
6
SCREW
16046-005
Unavailable
7
SPRING,F
16040-009
Unavailable
8
WASHER PLAIN 5MM
410B0500
Unavailable
9
WASHER,PLAIN,NYLON
16039-019
Unavailable
11
SCREW,PAN HEAD,5X7
16046-007
Unavailable
12
LEVER,STARTER PLUNGE
13168-1026
Unavailable
13
SCREW-PAN-CROS
220B0514
Unavailable
14
WASHER SPRING 5MM
461F0500
Unavailable
15
PLATE,SHAFT STOPPER
16055-012
Unavailable
16
SHAFT,CARB CONNECTIO
16041-017
Unavailable
17
SPRING,CABLE PULLY
16040-022
Unavailable
19
SPRING,THROTTLE ADJST
16022-010
Unavailable
22
BOLT,HEX HEAD,5X14
16067-006
Unavailable
24
RING
16073-016
Unavailable
25
CIRCLIP 3MM
482K3000
Unavailable
26
SPRING,THROTTLE STOP
16022-017
Unavailable
27
SCREW,THROTTLE STOP
16021-1010
Unavailable
29
SPRING,THROTTLE PULL
92081-1028
Unavailable
31
SCREW,6X14
16033-029
Unavailable
32
CLAMP,CARB CONECT HOS
92037-056
Unavailable
34
FITTING
92005-1010
Unavailable
35
HOSE,AIR VENT,5X8X250
92059-1045
Unavailable
35
HOSE,AIR VENT,5X8X250
92059-1045
Unavailable
36
FITTING
92005-1009
Unavailable
37
CAP,RUBBER
16039-042
Unavailable
38
GROMMET,CARBURETOR
92071-104
Unavailable
40
CLAMP,OVERFLOW HOSE
92037-173
Unavailable
41
HOSE,FUEL OVERFLOW
92059-147
Unavailable
43
TUBE,5.3X10.5X140
92059-1019
Unavailable
45
HOSE,FUEL OVERFLOW
92059-147
Unavailable
46
UNAVAILABLE IN PRICE BOOK
97059-134
Unavailable
48
RING
16073-016
Unavailable
49
CIRCLIP 3MM
482K3000
Unavailable
