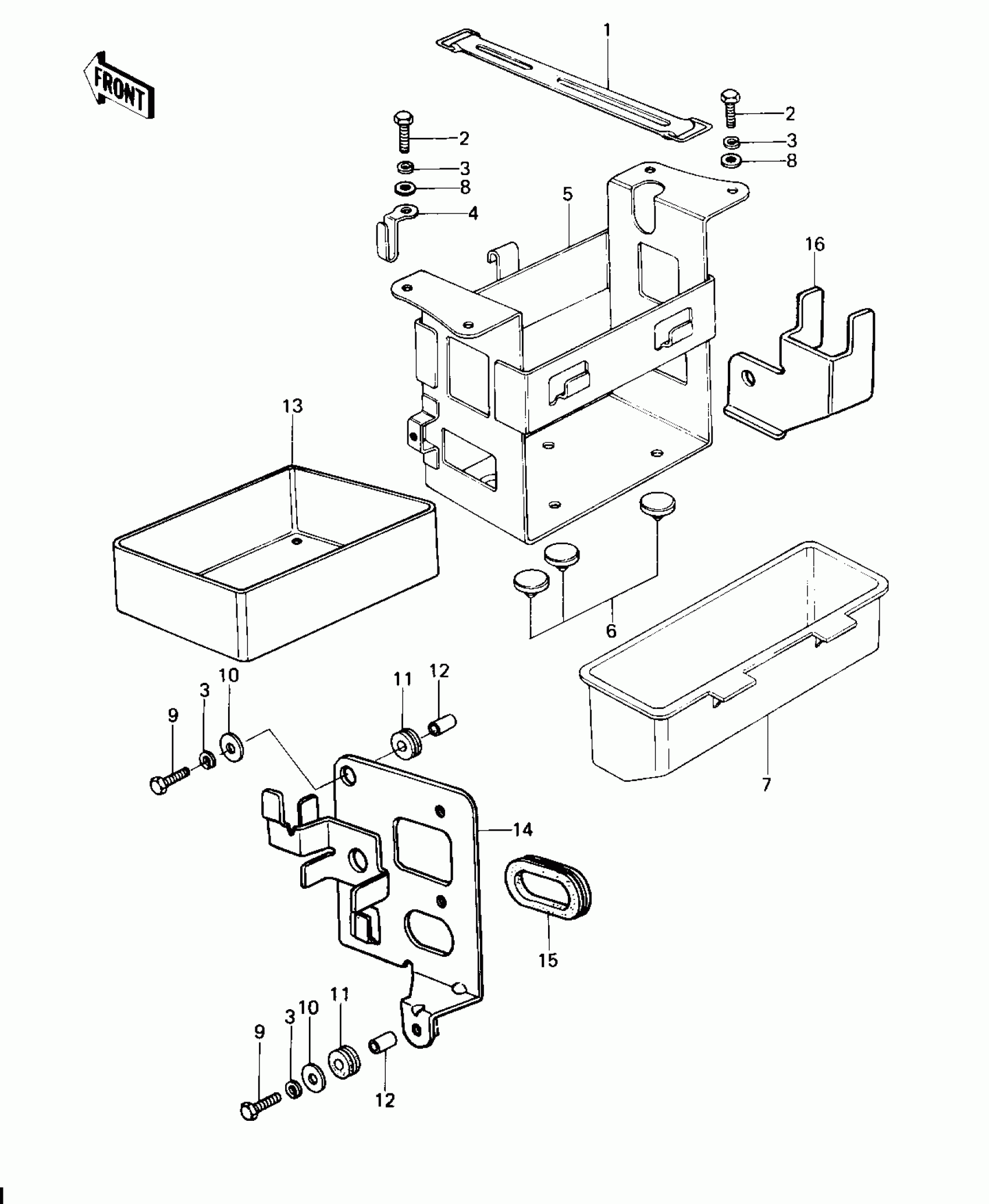

Kawasaki SR BATTERY CASE/TOOL CASE Diagram

#

Description

Price

1

BAND,L=146.9

92072-054

$14.53

2

BOLT-UPSET,6X12

112G0612

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

BRACKET,HELMET HOLDER

32122-057

Unavailable

5

CASE,BATTERY

32097-1005

Unavailable

6

DAMPER,RUBBER

92075-078

$3.35

7

CASE,TOOL

32098-028

Unavailable

8

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

9

BOLT-UPSET

112G0625

Unavailable

10

WASHER,7X24X1.6

92022-228

$2.99

11

DAMPER

92075-317

Unavailable

12

COLLAR-CLAMP

92027-291

Unavailable

13

CASE,BATTERY

32099-015

Unavailable

14

BRACKET,ELECTRO BASE

11036-1089

Unavailable

15

GROMMET,ELECTO BASE

92071-1007

Unavailable

16

BRACKET,SWITCH

11034-1158

Unavailable
