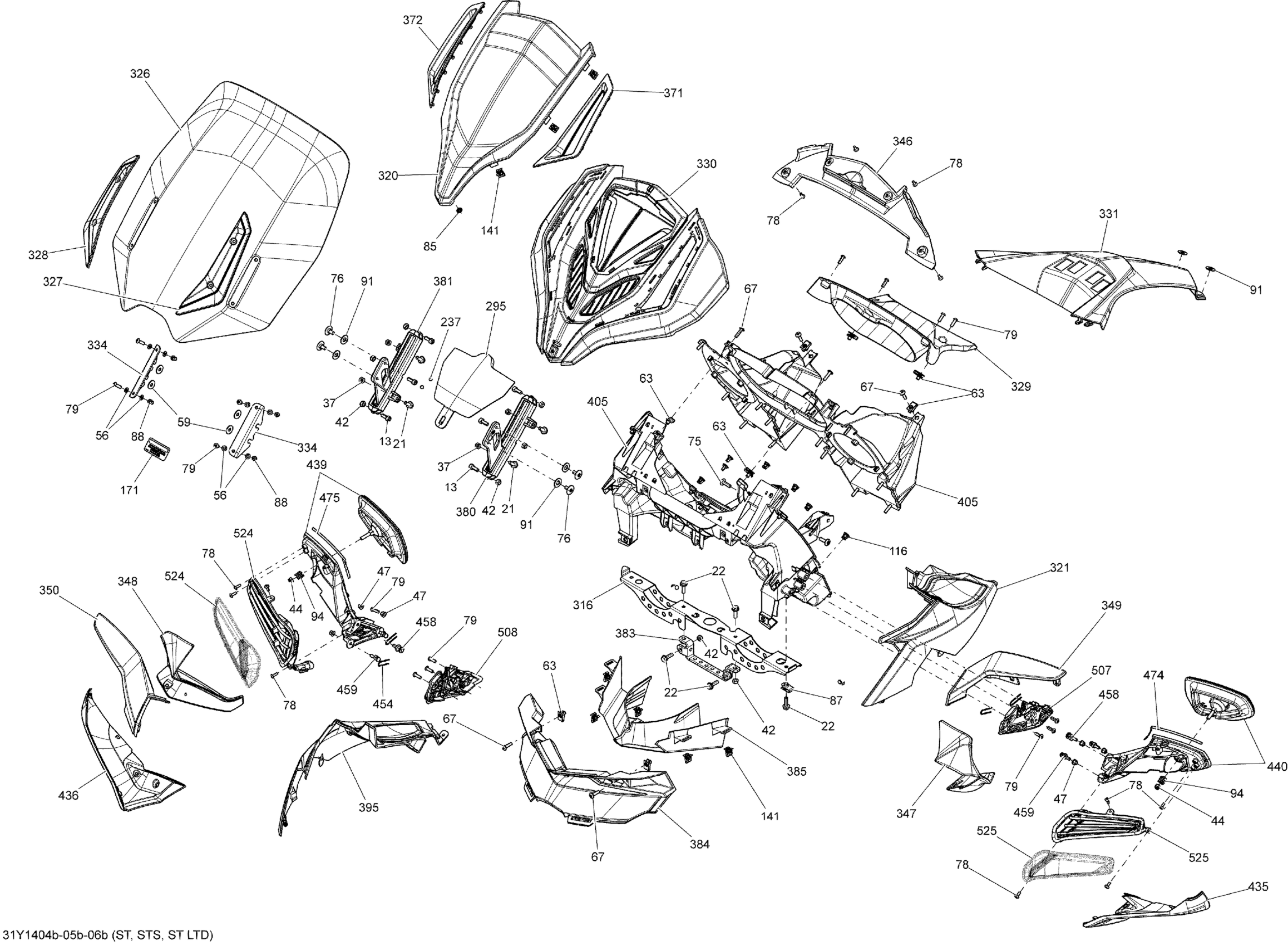

Can-Am Spyder STS SE5, 2014 Body And Accessories Windshield_31Y1405b Diagram

#

Description
Price

13

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

$1.03

21

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

22

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

37

Hex. Nut M6

232061414

$0.44

42

Elastic Stop Nut M6

232561434

$1.55

44

Hex. Elastic Stop Nut M6

232561600

$0.92

47

Flange Elastic Nut M5

233251434

$1.66

56

Flat Washer M5

234051670

$1.74

59

Stainless Steel Flat Washer

234062670

$1.74

63

Panel Nut M5 X 0.8

250000958

$3.48

67

Torx Screw M5 X 20

250000724

$1.39

75

Torx Truss Screw M6 X 20

250000488

$1.74

76

TORX SCREW M6 X 13.5 - Call your local BRP dealership

250000551

Unavailable

78

Torx Truss Screw K40 X 12

250000577

$1.74

79

Torx Truss Screw M5 X 16, T25

250000578

$1.74

85

Push Nut

250100034

$1.11

87

Panel Nut M6 X 1.0

250100198

$1.73

88

Cap Nut M5

250100152

$2.00

91

RUBBER WASHER - Call your local BRP dealership

293830164

$2.00

94

Mirror Spring

269500453

$7.97

116

Tie Rap Mount

293750044

$2.00

141

Edge Clip

517302785

$0.70

171

CAUTION DECAL, WINDSHIELD - Call your local BRP dealership

704903339

Unavailable

237

Ball

705001705

$6.00

295

Guide Chart

705009360

$28.00

316

CROSS SUPPORT CONSOLE - Call your local BRP dealership

705004950

Unavailable

320

Upper Console

705004954

$175.00

321

DASHBOARD - Call your local BRP dealership

705009560

Unavailable

326

Windshield

705004960

$255.00

327

LH WINDSHIELD MOULDING - Call your local BRP dealership

705004961

Unavailable

328

RH Windshield Moulding

705004962

$38.00

329

Moulding Dash Board

705007460

$54.00

330

Carbon Black Front Console

705006842

$260.00

331

CENTER PANNEL - Call your local BRP dealership

705004971

Unavailable

334

Windshield Support

705004982

$13.00

346

UPPER CONSOLE MOULDING - Call your local BRP dealership

705005320

Unavailable

347

LH Upper Air Deflector

705005323

$46.00

348

RH Upper Air Deflector

705005324

$46.00

349

Mirror Sheel

705005325

$130.00

350

Mirror Sheel

705005326

$44.00

371

LH SLIDER PROTECTOR - Call your local BRP dealership

705005411

Unavailable

372

RH SLIDER PROTECTOR - Call your local BRP dealership

705005412

Unavailable

380

LH RAIL ASS'Y - Call your local BRP dealership

705005460

Unavailable

381

RH Rail Ass'y

705005461

$96.00

383

CONSOLE SUPPORT BRACKET - Call your local BRP dealership

705005476

Unavailable

384

Headlamp Moulding

705005582

$39.00

385

Center Air Intake

705005586

$93.00

395

DASHBOARD - Call your local BRP dealership

705009561

Unavailable

405

CONSOLE SUPPORT ASS'Y - Call your local BRP dealership

705006016

$180.00

435

LH LOWER SHELL - Call your local BRP dealership

705006479

Unavailable

436

RH LOWER SHELL - Call your local BRP dealership

705006480

Unavailable

439

RH MIRROR ASS'Y - Call your local BRP dealership

705008660

Unavailable

440

LH MIRROR ASS'Y - Call your local BRP dealership

705008659

Unavailable

454

Spring

705006661

$3.00

458

Flat Head Stud M5

705006733

$21.00

459

Stud Ball M5

708400538

$18.00

474

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

475

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

507

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$28.00

508

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$28.00

524

RH FLASHER - Call your local BRP dealership

710004030

Unavailable

525

LH Flasher

710004029

$201.00
