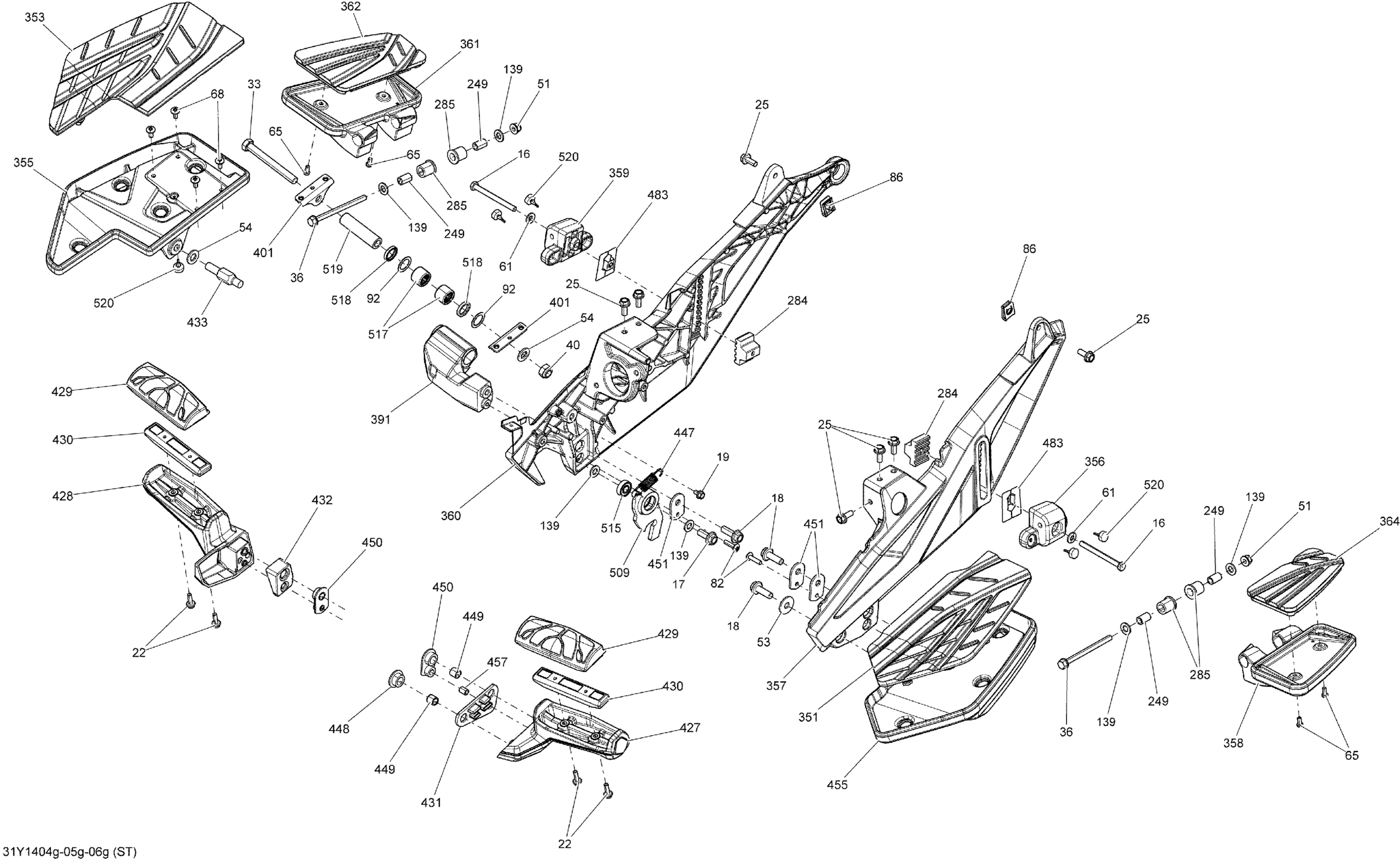

Can-Am Spyder STS SE5, 2014 Body And Accessories Footrest_31Y1405g Diagram

#

Description
Price

16

Hex. Screw M8 x 90

207189060

$3.68

17

Hex. Flange Screw M10 X 25

207502546

$1.74

18

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

19

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

22

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

33

Hexagonal Screw M12 X 105

230020586

$7.28

36

Hex. Flange Screw M8 X 110

230681034

$4.28

40

Elastic Stop Nut M12

232521416

$1.40

51

Hex. Flange Elastic Nut M8

233281434

$1.74

53

Flat Washer 10 mm, Stainless

234002600

$1.85

54

Flat Washer

234021430

$2.06

61

Spring Washer M8

234281704

$2.00

65

Allen Plastite Screw #12

250000099

$2.31

68

Torx Screw M6 X 16

250000223

$1.74

82

Torx Truss Screw M6 X 25

250000807

$1.74

86

Panel Nut M8 X 1.25

250100069

$4.00

92

Plastic Washer 20MM | Model-RT LTD SE6

250200136

$8.00

139

Washer

503183800

$3.20

249

Bushing

705002153

$11.06

284

Adjuster Block

705003013

$44.00

285

Rubber Bushing

705003018

$10.00

351

LH FRONT RUBBER PAD - Call your local BRP dealership | Model-ST LTD SE5

705005329

$85.00

353

RH Front Rubber Pad | Model-ST LTD SE5

705005333

$94.00

355

RH FRONT FOOTREST ASS'Y - Call your local BRP dealership | Model-ST LTD SE5

705005334

Unavailable

356

Black LH Sliding Block | Model-ST LTD

705006799

$61.00

357

LH REAR FOOT SUPPORT - Call your local BRP dealership | Model-ST LTD SE5

705006796

Unavailable

358

LH REAR FOOTREST - Call your local BRP dealership | Model-ST LTD SE5

705006798

$150.00

359

BLACK RH SLIDING BLOCK - Call your local BRP dealership | Model-ST LTD

705006801

Unavailable

360

BLACK RH FOOTREST SUPPORT - Call your local BRP dealership | Model-ST LTD SE5

705007976

Unavailable

361

Black RH Footrest Support | Model-ST LTD SE5

705006800

$135.00

362

RH REAR RUBBER PAD - Call your local BRP dealership | Model-ST

705005350

Unavailable

364

LH REAR RUBBER PAD - Call your local BRP dealership | Model-ST

705005351

Unavailable

391

Pivot Support | Model-RT LTD SE6

705005723

$94.00

401

Pivot Bracket | Model-RT LTD SE6

705005861

$21.00

427

LH Front Footrest Ass'y | Model-ST LTD SE5

705005330

$205.00

427

LH FRONT FOOTREST ASS'Y - Call your local BRP dealership | Model-ST S SM5

705006793

Unavailable

428

RH FRONT FOOTREST ASS'Y - Call your local BRP dealership | Model-ST S SM5

705006797

Unavailable

429

LH FRONT RUBBER PAD - Call your local BRP dealership | Model-ST STD

705006297

Unavailable

430

VIBRATION DAMPENER - Call your local BRP dealership | Model-ST STD

705006388

Unavailable

431

LH RUBBER BUSHING - Call your local BRP dealership | Model-ST STD

705006423

Unavailable

432

RH RUBBER BUSHING - Call your local BRP dealership | Model-ST STD

705006424

Unavailable

433

Latch Pin M12 X 30 | Model-RT LTD SE6

705006428

$28.00

447

Spring

705006533

$18.00

448

CUSHION - Call your local BRP dealership | Model-ST STD

705006554

Unavailable

449

BUSHING - Call your local BRP dealership | Model-ST STD

705006555

Unavailable

450

CUSHION - Call your local BRP dealership | Model-ST STD

705006556

Unavailable

451

Retaining Plate | Model-RT LTD SE6

705006557

$10.00

455

LH Front Footrest Ass'y | Model-ST LTD SE5

705005330

$205.00

457

Bushing | Model-ST STD

705006696

$18.00

483

Lock Plate | Model-ST

705007473

$19.00

509

LATCH ASS'Y - Call your local BRP dealership | Model-ST LTD SE5

705008439

Unavailable

515

Bearing

705600458

$7.03

517

Bearing

706000447

$11.83

518

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

519

Bushing

706000731

$14.75

520

Rubber Stopper

708000759

$3.61
