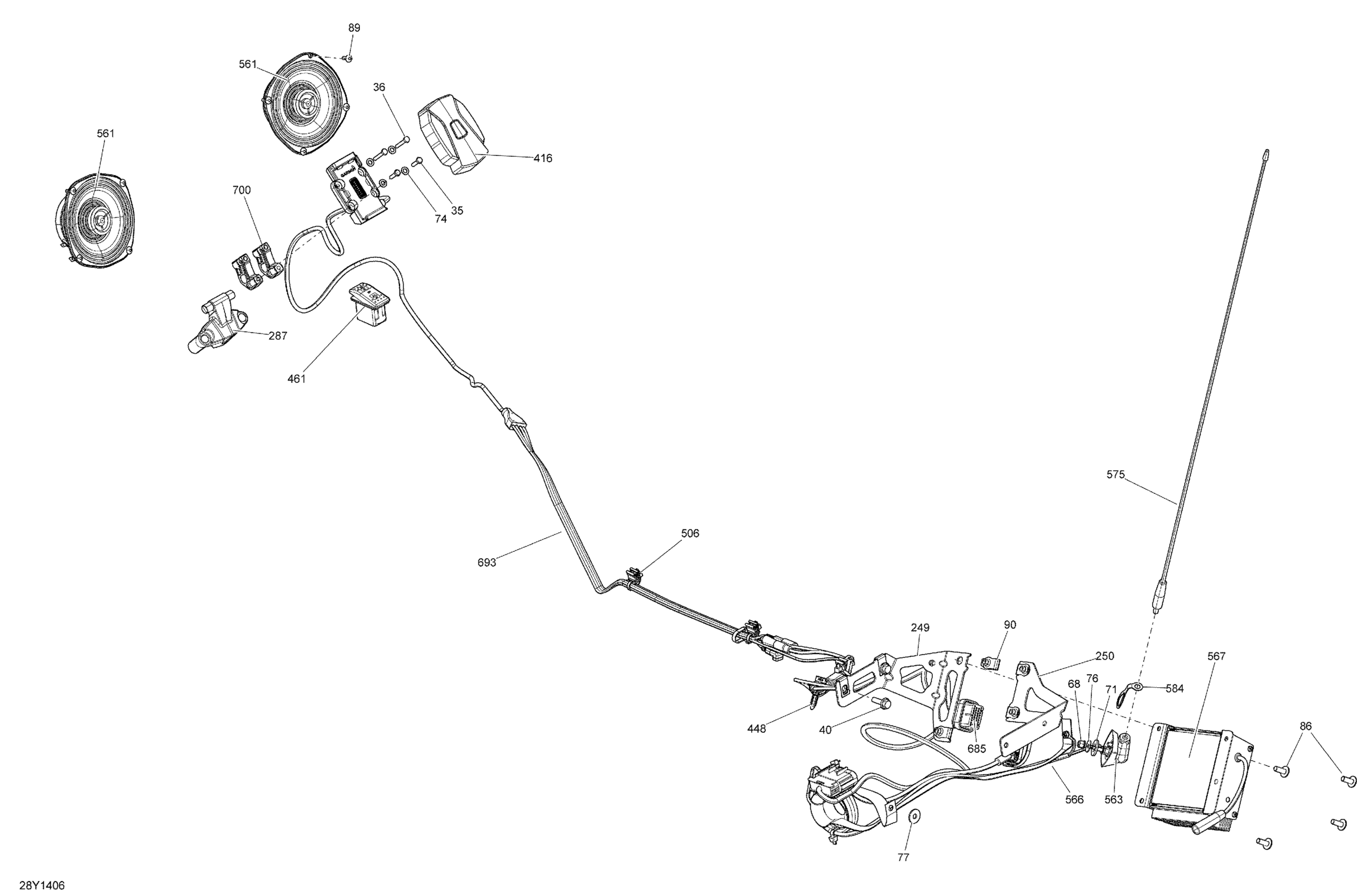

Can-Am Spyder ST Limited SE5, 2014 Electrical Harness Accessories_28Y1406 Diagram

#

Description
Price

35

HEX. SCREW M4 X 16 - Call your local BRP dealership

207141644

Unavailable

36

Hex. Screw M4 X 25

207142544

$1.63

40

Hex. Flange Screw M6 X 25

207562544

$1.39

68

Hex. Flange Elastic Nut M5

233251414

$1.66

71

Flat Washer 10 mm

234001410

$0.98

74

Flat Washer M5, Stainless

234051600

$0.64

76

Flat Washer 5 mm, Stainless

234052600

$0.64

77

Flat Washer 6 mm

234062410

$0.64

86

Torx Screw M6 X 16

250000755

$0.72

89

Torx Truss Screw K40 X 12

250000577

$1.74

90

Panel Nut M6 X 1.0

250100198

$1.73

249

RH RADIO SUPPORT - Call your local BRP dealership

705202617

Unavailable

250

LH RADIO SUPPORT - Call your local BRP dealership

705202618

Unavailable

287

GPS SUPPORT, BLACK - Call your local BRP dealership

709401318

Unavailable

416

GPS Protector Support

710001538

$15.00

448

Connector Holder

710002033

$3.22

461

Switch, Heat Grip

710002354

$41.00

506

Tie-Rap Clip

710002896

$4.60

561

Rear Speaker

710003232

$140.00

563

Antenna Support

710003248

$59.00

566

ANTENNA CABLE ASS'Y - Call your local BRP dealership

710003249

Unavailable

567

Rebuilt Radio Module 5V Ipod

219800399

$710.00

575

ANTENNA - Call your local BRP dealership

710003304

Unavailable

584

ANTENNA STOPPER - Call your local BRP dealership

710003347

Unavailable

685

Radio Harness

710003811

Unavailable

693

GPS HARNESS - Call your local BRP dealership

710003822

Unavailable

700

Clamp

710003848

$11.00
