Description

Price

1

Hex Flange Screw M10 X 20

207502044

$4.28

2

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$7.00

3

Hex. Flange Screw M10 X 55, Scotch Grip

207505544

$4.00

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

5

Hex. Flange Screw M6 X 16

207661644

$0.61

6

Hex. Flange Screw M6 X 20

207662084

$0.83

7

Not Available As Spare Parts

XXX

Unavailable

8

Hex. Flange Screw M8 X 20

207682046

$1.82

9

Carriage Bolt M8 X 20

207782046

$2.00

10

Hex. Flange Elastic Nut M10

233201436

$1.74

11

Hex. Screw M10 X 100, Scotch Grip

230500046

$6.11

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Hex. Flange Nut M8

233081416

$1.63

14

Hex. Flange Elastic Nut M10

233201436

$1.74

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17a

Torx Screw M5 X 20

250000724

$1.39

17b

Torx Screw M5 X 20

250000724

$1.39

19

Hex. Flange Screw M10 X 220

250000507

$8.00

20

Panel Nut M6 X 1.0

250100198

$1.73

21

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

21a

Hex. Elastic Stop Nut M6

232561600

$0.92

22

Clip

270000141

$8.33

23

Not Available As Spare Parts

XXX

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

25

Tie Wrap 368 mm

293750008

$0.85

26

Pop Rivet 3/16"

390402300

$0.64

27

Pop Rivet 3/16"

390402400

$0.25

28

Tie-Rap 180 mm

414115200

$0.09

30

Not Available As Spare Parts

XXX

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Foam Filter

707000586

$6.00

38

Front Engine Support

707001561

$105.00

39

Rubber Mount

707000876

$135.00

40

Frame Extension

707000877

$95.00

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Connecting Rod

707001918

$64.00

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

45a

Not Available As Spare Parts

XXX

Unavailable

45b

Not Available As Spare Parts

XXX

Unavailable

45c

Not Available As Spare Parts

XXX

Unavailable

45d

Not Available As Spare Parts

XXX

Unavailable

45e

Not Available As Spare Parts

XXX

Unavailable

46

Rubber Mount

707000973

$90.00

47

Pressure And Temperature Sensor

707000995

$70.82

48

Not Available As Spare Parts

XXX

Unavailable

49

Attach

707001292

$19.00

50

LH Engine Support

707001293

$22.00

51

RH Engine Support

707001294

$22.00

52

Connector Support

707001353

$15.00

53

SPACER - Call your local BRP dealership

707001423

Unavailable

54

Upper Heat Deflector

707601057

$24.00

55

Not Available As Spare Parts

XXX

Unavailable

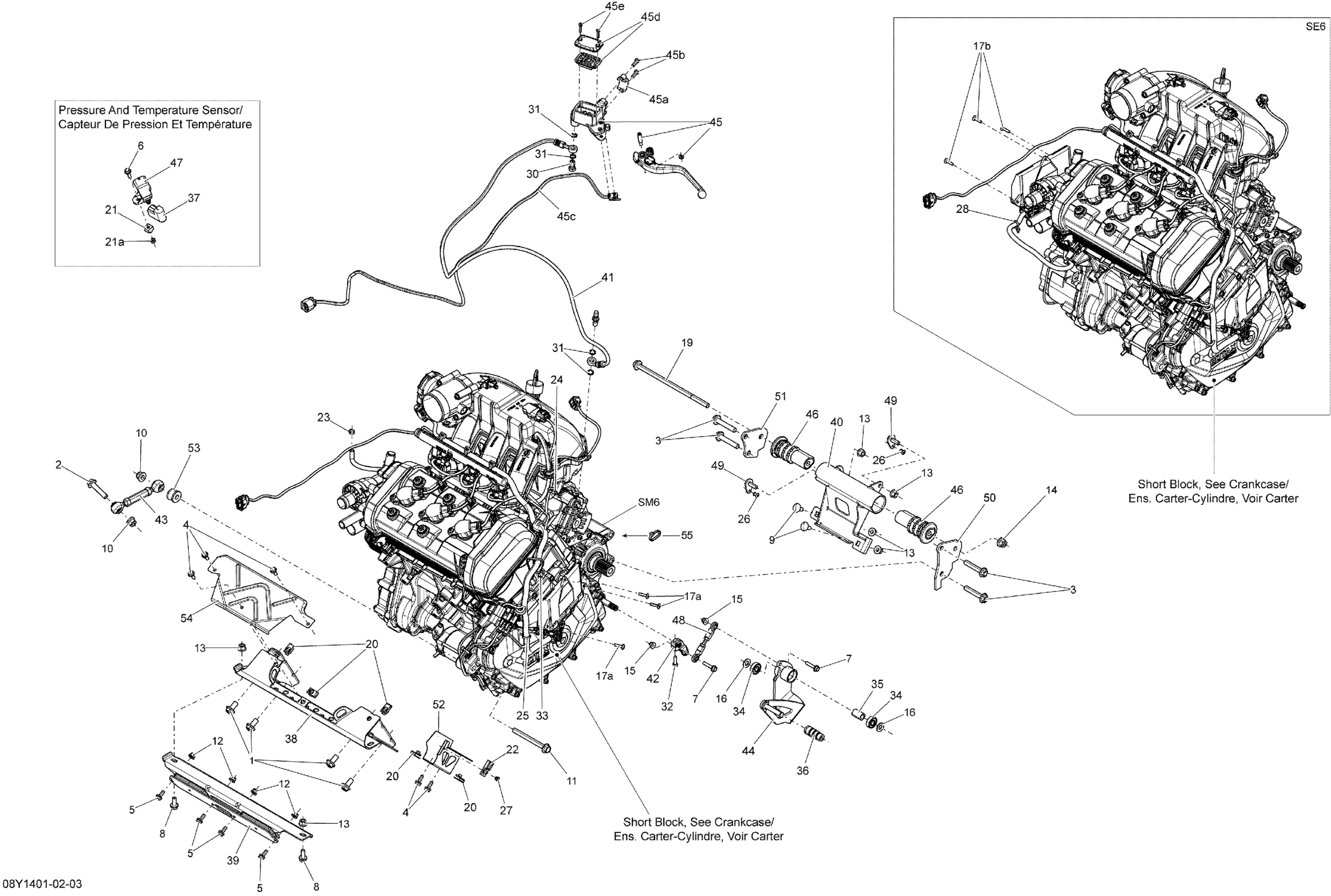

Can-Am Spyder RTS SE6, 2014 Engine SE6_08Y1402 Diagram

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

SPACER - Call your local BRP dealership

Not Available As Spare Parts
