Description

Price

41

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

51

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

52

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

72

Flat Washer

224060201

$1.15

77

Hex. Jam Nut M14

232170411

$1.25

107

Torx Screw K50 X 16

250000720

$1.39

108

Torx-truss M/s M6 X 10

250000995

$3.61

111

Flange Torx Screw K40 X 16

250000287

$1.74

112

Torx Truss Screw M6 X 16

250000348

$1.74

113

Stainless, Torx Screw M6 X 30

250000842

$1.74

115

TORX SCREW M4 X 20 - Call your local BRP dealership

250000405

$1.55

117

Panel Nut M6 X 1.0

250100198

$1.73

130

Clip

270000141

$8.33

153

Grommet

293720095

$8.00

191

Pop Rivet 3/16"

390402400

$0.25

216

Tie-Rap 180 mm

414115200

$0.09

258

Clip

414227300

$1.45

268

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

271

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

319

Well Rubber Nut M4 X 0.7

705003635

$6.00

325

Front Sensor Wheel

705601512

$44.00

333

Speed Sensor

706202361

$165.00

460

SWITCH COVER - Call your local BRP dealership

710001194

Unavailable

469

DC Outlet

710001248

$31.17

496

Switch Support

710001365

$21.00

525

License Light | Includes 0an to 0an1

710001451

$76.00

532

Antenna Support

710001532

$59.00

594

Hose Support

710002145

$8.00

619

Switch, Heat Grip

710002354

$41.00

648

RH Housing Passenger Switch

710002464

$100.00

660

RH Rear Tail Light | Includes 357 to 359, All Models Except Japan

710002501

$423.00

661

LH Rear Tail Light | Includes 354 to 356, All Models Except Japan

710002502

$423.00

696

Antenna

710002740

$78.00

717

Tie-Rap Clip

710002896

$4.60

740

Ignition Module Switch | Includes 18 to 20b

710002968

$286.00

753

CARGO HARNESS - Call your local BRP dealership

710003024

Unavailable

759

Speed-Prog | Includes 529 à 530

710004722

$1,140.00

760

Lens | XTP

415129349

$23.05

766

RH Support Wire

710004861

$2.00

778

Kit Speed Sensor

219800456

$87.00

779

Kit Speed Sensor

219800456

$87.00

788

SWITCH HARNESS - Call your local BRP dealership

710003110

Unavailable

798

KIC PENTALOCK HARNESS - Call your local BRP dealership

710003112

Unavailable

886

CONNECTOR HARNESS, DIN - Call your local BRP dealership

710003218

Unavailable

893

Rear Speaker

710003232

$140.00

894

Front Speaker

710003233

$86.12

902

ANTENNA CABLE ASS'Y - Call your local BRP dealership

710003249

Unavailable

904

Rebuilt Radio Module 5V Ipod

219800399

$710.00

922

Housing Switch

710003921

$487.00

959

PRS Bracket

710003487

Unavailable

525a

Bulb

219800128

$2.99

661a

Bulb

520000758

$7.49

661b

Flasher Bulb

219800122

$7.00

740a

Key Set with Cover (1 key)

710002969

$26.00

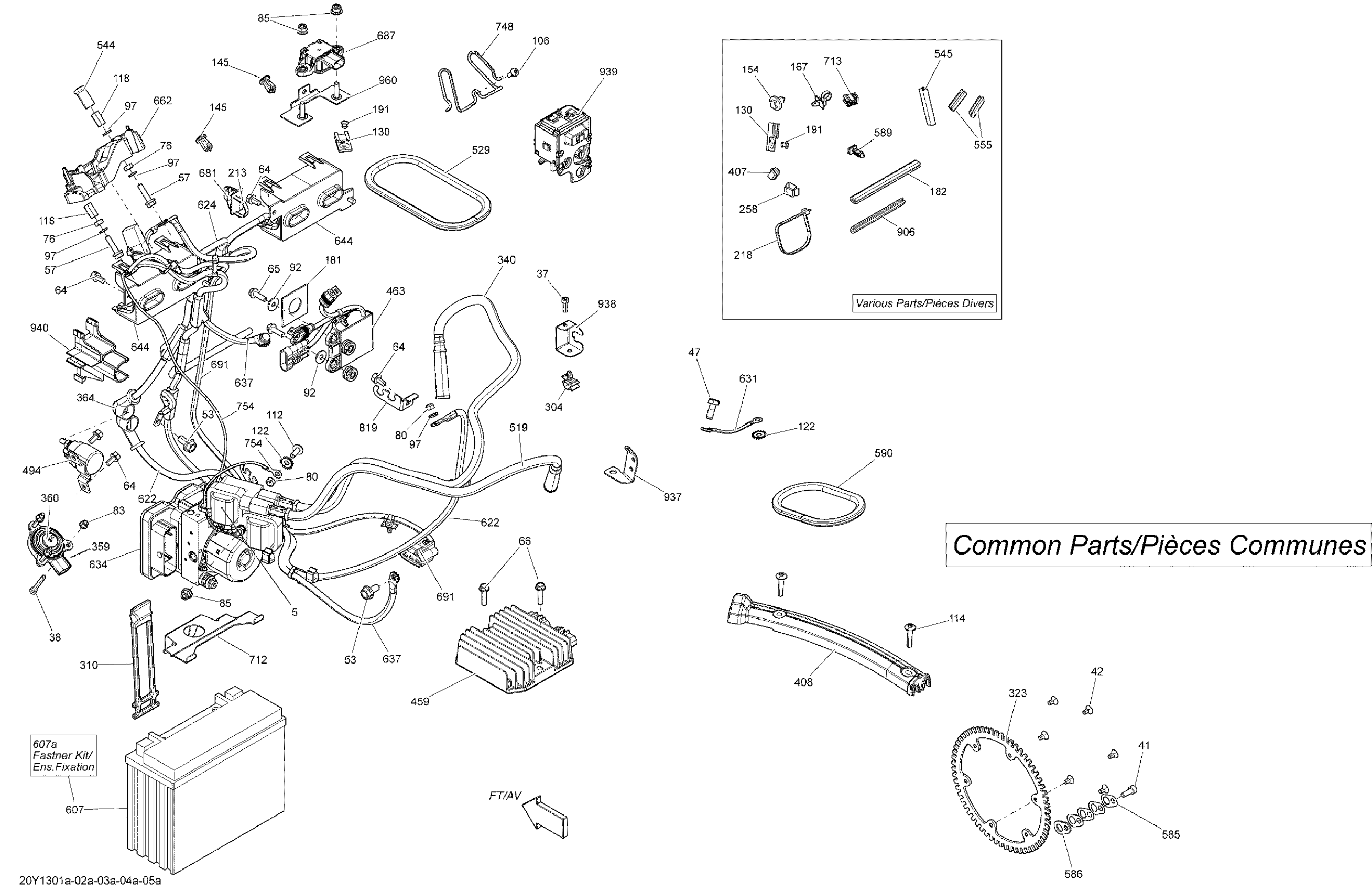

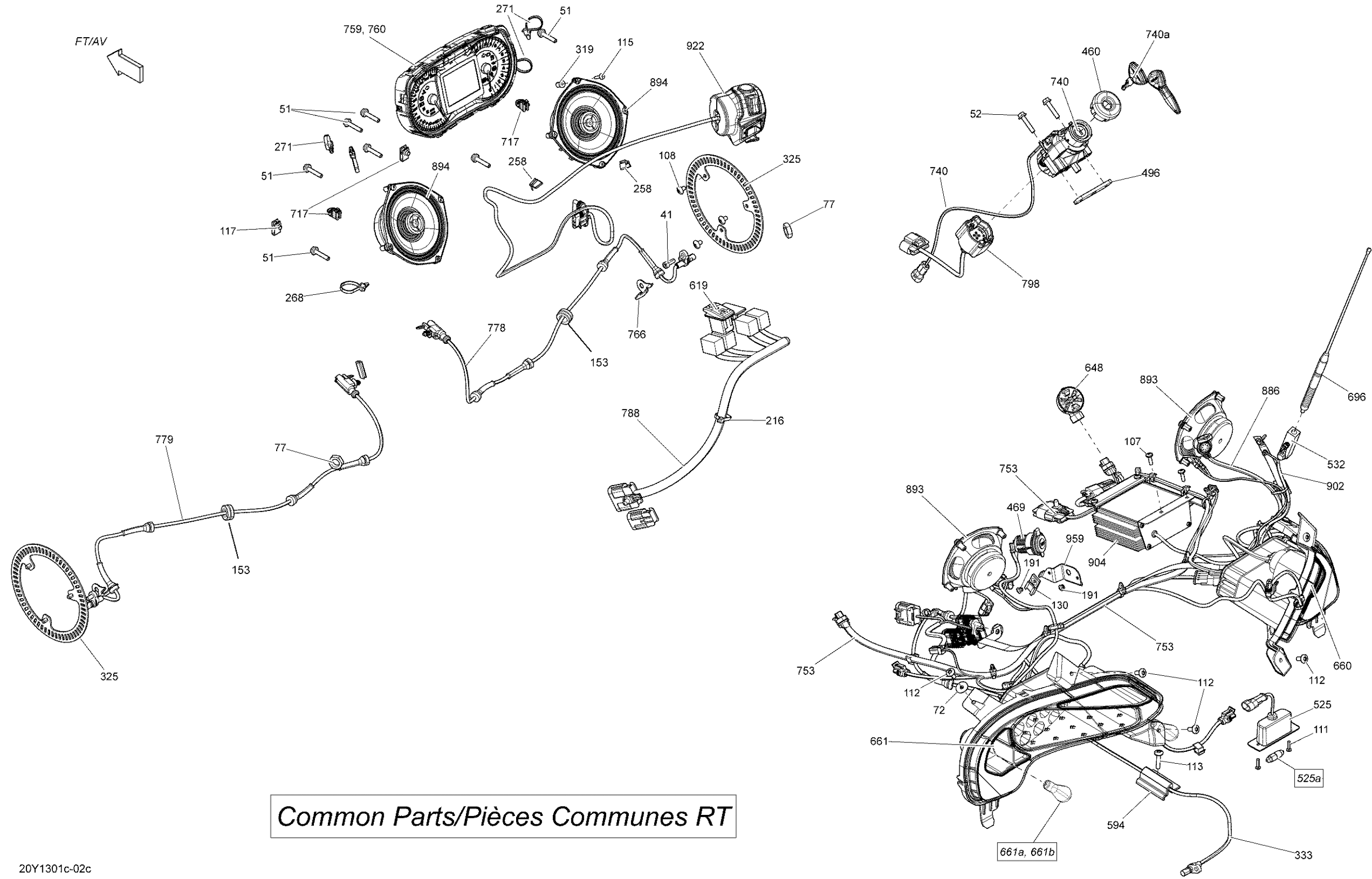

Can-Am Spyder RT_RTS SE5, 2013 Electrical System Common Parts RT Diagram

SWITCH COVER - Call your local BRP dealership

CARGO HARNESS - Call your local BRP dealership

SWITCH HARNESS - Call your local BRP dealership

KIC PENTALOCK HARNESS - Call your local BRP dealership

CONNECTOR HARNESS, DIN - Call your local BRP dealership

ANTENNA CABLE ASS'Y - Call your local BRP dealership

PRS Bracket
