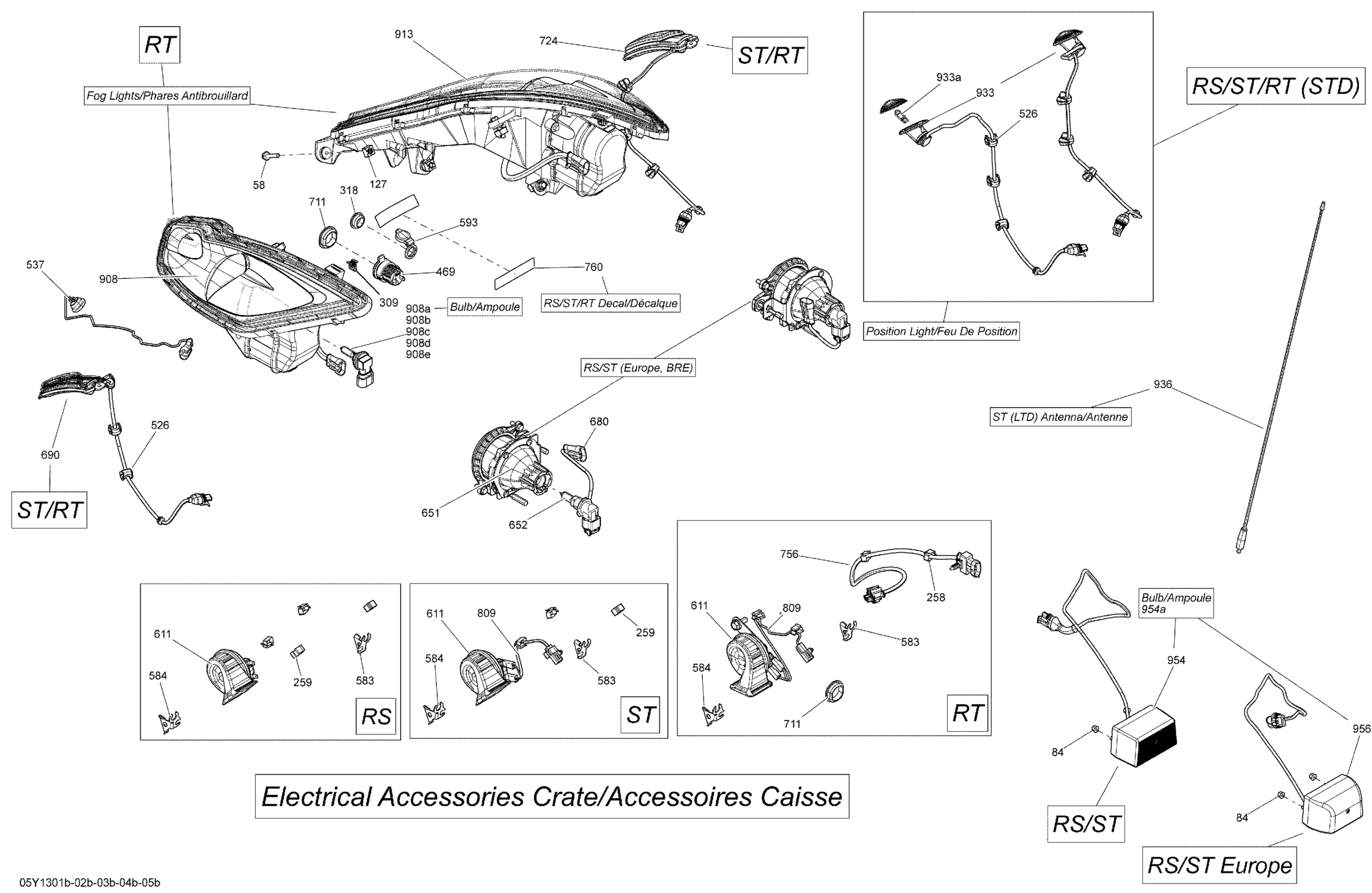

Can-Am Spyder RT_RTS SE5, 2013 Electrical Accessories Crate Lighting Diagram

#

Description
Price

58

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

84

Not Available As Spare Parts

XXX

Unavailable

127

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

258

Clip

414227300

$1.45

259

Clip

414227300

$1.45

309

Edge Clip

517302785

$0.70

318

Cap

705003464

$10.42

469

Not Available As Spare Parts

XXX

Unavailable

526

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

537

Trunk Light

710001533

$68.00

583

RH WIRE SUPPORT - Call your local BRP dealership

710002018

Unavailable

584

LH WIRE SUPPORT - Call your local BRP dealership

710002019

Unavailable

593

Not Available As Spare Parts

XXX

Unavailable

611

HORN - Call your local BRP dealership

710004229

$29.00

651

Not Available As Spare Parts

XXX

Unavailable

651

Not Available As Spare Parts

XXX

Unavailable

652

Halogen Bulb

415129249

$39.97

680

Not Available As Spare Parts

XXX

Unavailable

690

LH Position Light

710002691

$80.00

690

Position Light | STD Model

710003295

$62.00

711

Rubber Plug

710002858

$2.75

724

RH Position Light

710004033

$83.00

724

Position Light | STD Model

710003295

$62.00

756

AAPTS Harness

710003032

Unavailable

760

RH/LH Fuse Box Decal

710003077

$1.00

809

Not Available As Spare Parts

XXX

Unavailable

908

LH Fog Light Ass'y, Chrome | Includes 439 to 442, North America

710003256

$408.00

908

LH Low Beam Ass'y, Chrome | Includes 442 to 446, Europe, Brazil, Australia, Japan

710003259

$490.00

913

RH Fog Light Ass'y, Chrome | Includes 439 to 442, North America

710003257

$408.00

913

RH Low Beam Ass'y, Chrome | Includes 442 to 446, Europe, Brazil, Australia, Japan

710003258

$490.00

933

LH Position Light

710002691

$80.00

933

RH Position Light

710004033

$83.00

936

Antenna

710002740

$78.00

954

Not Available As Spare Parts

XXX

Unavailable

954

Not Available As Spare Parts

XXX

Unavailable

956

Not Available As Spare Parts

XXX

Unavailable

908a

Halogen Bulb H8 12V 35W

219800149

$41.51

908a

Halogen Bulb HB3 65W

219800136

$24.00

908b

Cover With Seal

219800174

$19.00

908c

Rubber Vent

219800101

$21.00

908c

Chromed Screw 4X13

219800110

$13.00

908d

Anti-Vibration Bushing

219800100

$11.00

908d

Adjustement Cable

219800105

$84.00

908e

Rubber Vent

219800101

$21.00

933a

BULB 5W. - Call your local BRP dealership

410922994

Unavailable

954a

Bulb 12V 10W | Not Shown

415129261

$2.00
