Description

Price

1

Hexagonal Head Screw

210262050

$1.74

2

Hex. Jam Nut M8

232180600

$0.56

7

Hex. Flange Elastic Nut M8

233281414

$1.14

9

Flat Washer 8 mm

234082410

$1.11

10

Torx Screw K50 X 16

250000720

$1.39

11

Hex. Flange Screw M6 X 60

250000778

$3.61

12

Torx Truss Screw M6 X 20

250000488

$1.74

13

Ball Head Stud

250300039

$6.15

14

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

15

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

16

Lug

705002223

$26.00

17

Latch

705007379

$29.00

19

Seat Cable

708001743

$54.00

26

Gaz Shock

708000658

$84.00

27

Spacer

708000664

$6.00

29

Rubber Stopper

708000759

$3.61

30

Siege Assemble *Seat Ass'Y | Includes 1 to 3

708001659

$490.00

34

BACKREST ASS'Y, BLACK - Call your local BRP dealership | Includes 15 to 16

708000907

Unavailable

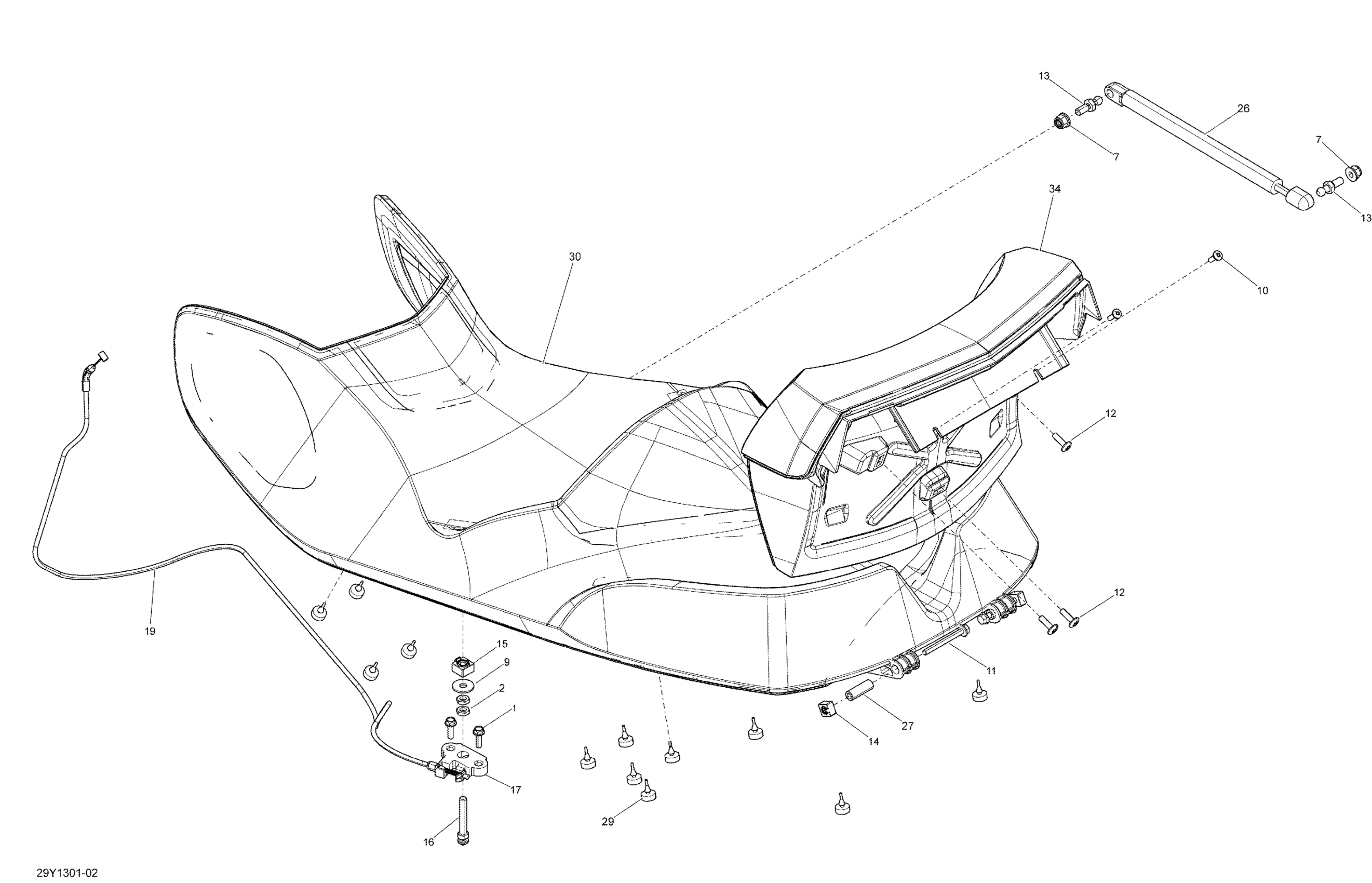

Can-Am Spyder RT_RTS SE5, 2013 Seat Diagram

BACKREST ASS'Y, BLACK - Call your local BRP dealership | Includes 15 to 16
