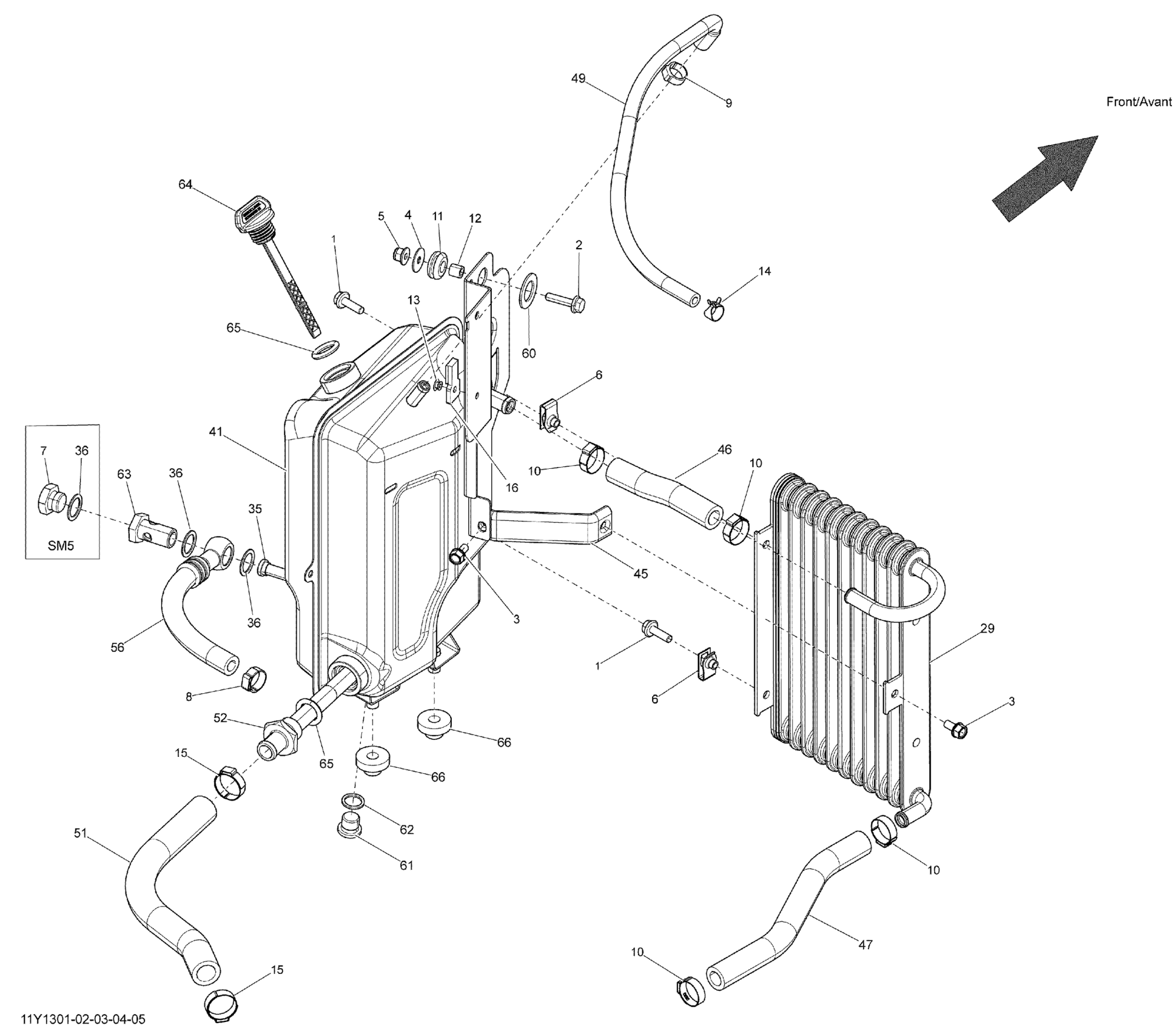

Can-Am Spyder RT_RTS SE5, 2013 Oil System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

2

Hex. Flange Screw M6 X 25

207662544

$0.53

3

Hex. Flange Screw M6 X 12

210261250

$1.56

4

Flat Washer

224060201

$1.15

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Panel Nut M6 X 1.0

250100198

$1.73

7

HEX. HEAD PLUG M16 X 1.5 - Call your local BRP dealership

250100114

$12.00

8

Oetiker Clamp | Europe

293650030

$4.32

9

Oetiker Clamp

293650140

$2.15

10

Oetiker Clamp

293650186

$3.33

11

Grommet

709000582

$4.38

12

Bushing

293900105

$6.26

13

Pop Rivet 3/16"

390402400

$0.25

14

Spring Clamp

414415200

$0.83

15

Gear Clamp

509000552

$6.45

16

DEUTSCH GRAY CLIP - Call your local BRP dealership

515176209

$5.58

29

OIL RADIATOR - Call your local BRP dealership

519000123

Unavailable

35

STRAINER - Call your local BRP dealership

519000144

$27.66

36

Copper Washer

519000148

$4.00

36

Copper Washer

519000148

$4.00

41

OIL TANK - Call your local BRP dealership

519000304

Unavailable

45

RADIATOR SUPPORT - Call your local BRP dealership

519000175

Unavailable

46

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

47

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

49

Formed Hose

519000208

$29.00

51

15,9 MM HOSE 1000MM LONG - Call your local BRP dealership

219704432

Unavailable

52

Strainer

519000219

$37.00

56

HOSE - Call your local BRP dealership | SE5

519000287

Unavailable

60

Washer

519000295

$1.00

61

Fill Level Plug | 4X4

705500504

$7.61

62

Copper Washer | 4X4

705500506

$0.36

63

Banjo Bolt | SE5

705600527

$16.00

64

Oil Cap

519000155

$16.00

65

O-Ring

709000218

$7.00

66

Grommet

709200285

$8.38
