Description

Price

1A

Muffler Ass'y

707601704

$954.00

1A

MUFFLER_EXHAUST ASSY - Call your local BRP dealership

707601706

Unavailable

1B

Crystal Silver Heat Shield

707601382

$76.00

1B

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.00

1C

Panel Nut M6 X 1.0

250100198

$1.73

1D

Stainless Flat Washer M6

234061600

$0.25

1D

Black, Flat Washer 6 mm

234061670

$1.00

1E

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

1E

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

1F

Crystal Silver Heat Shield

707601132

$25.00

1F

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$27.00

1G

Panel Nut M6 X 1.0

250100198

$1.73

1H

Stainless Flat Washer M6

234061600

$0.25

1H

Black, Flat Washer 6 mm

234061670

$1.00

1K

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

1K

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

1M

Crystal Silver Muffler End Cap

707600867

$82.00

1M

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.00

1N

Stainless Flat Washer M6

234061600

$0.25

1N

Black, Flat Washer 6 mm

234061670

$1.00

1P

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

1P

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

20

Muffler Ass'y

707601357

$1,123.00

30

REAR EXHAUST TUNED PIPE - Call your local BRP dealership

707601367

Unavailable

40

PIPE_EXHAUST IN WELD - Call your local BRP dealership

707600634

Unavailable

50

Seal

707600296

$19.00

60

Hex. Flange Nut M6

233061414

$1.34

80

COLLAR - Call your local BRP dealership

707601249

$19.00

90

Pipe Slip Joint

707600650

$22.00

100

HEX HEAD PIPE PLUG M10 DIN910 - Call your local BRP dealership

250100122

$3.38

110

Washer

414920600

$1.52

130

Exhaust Gasket

514053677

$24.58

140

ANTI-VIBRATION RUBBER - Call your local BRP dealership

707600683

Unavailable

141

Not Available As Spare Parts

XXX

Unavailable

142

Not Available As Spare Parts

XXX

Unavailable

150

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$7.00

151

Not Available As Spare Parts

XXX

Unavailable

160

Washer 10 mm

506150000

$2.63

170

BUSHING - Call your local BRP dealership

705003206

Unavailable

171

Not Available As Spare Parts

XXX

Unavailable

180

Hex. Flange Nut M10

233101600

$4.39

200

Rubber Bumper

707600638

$14.37

210

DEFLECTOR - Call your local BRP dealership

707601251

Unavailable

215

Hexagonal Head Screw

210262050

$1.74

220

Spring

514054226

$6.20

230

Heat Shield

707601042

$18.00

240

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

250

Stainless Flat Washer M6

234061600

$0.25

260

Panel Nut M6 X 1.0

250100198

$1.73

300

SOCKET SCREW, M8 X 75 S. GRIP - Call your local BRP dealership

250000404

Unavailable

310

Hex. Elastic Nut M8

232581600

$1.25

330

Spring

707600682

$6.45

340

Bushing

707600750

$19.00

350

Anti-Vibration Rubber

707600702

$8.34

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.00

370

Hexagonal Head Screw

210262050

$1.74

400

RETAINING ROD - Call your local BRP dealership

707600666

Unavailable

410

Hexagonal Head Screw

210262050

$1.74

460

Oxygen Sensor

707600872

$115.67

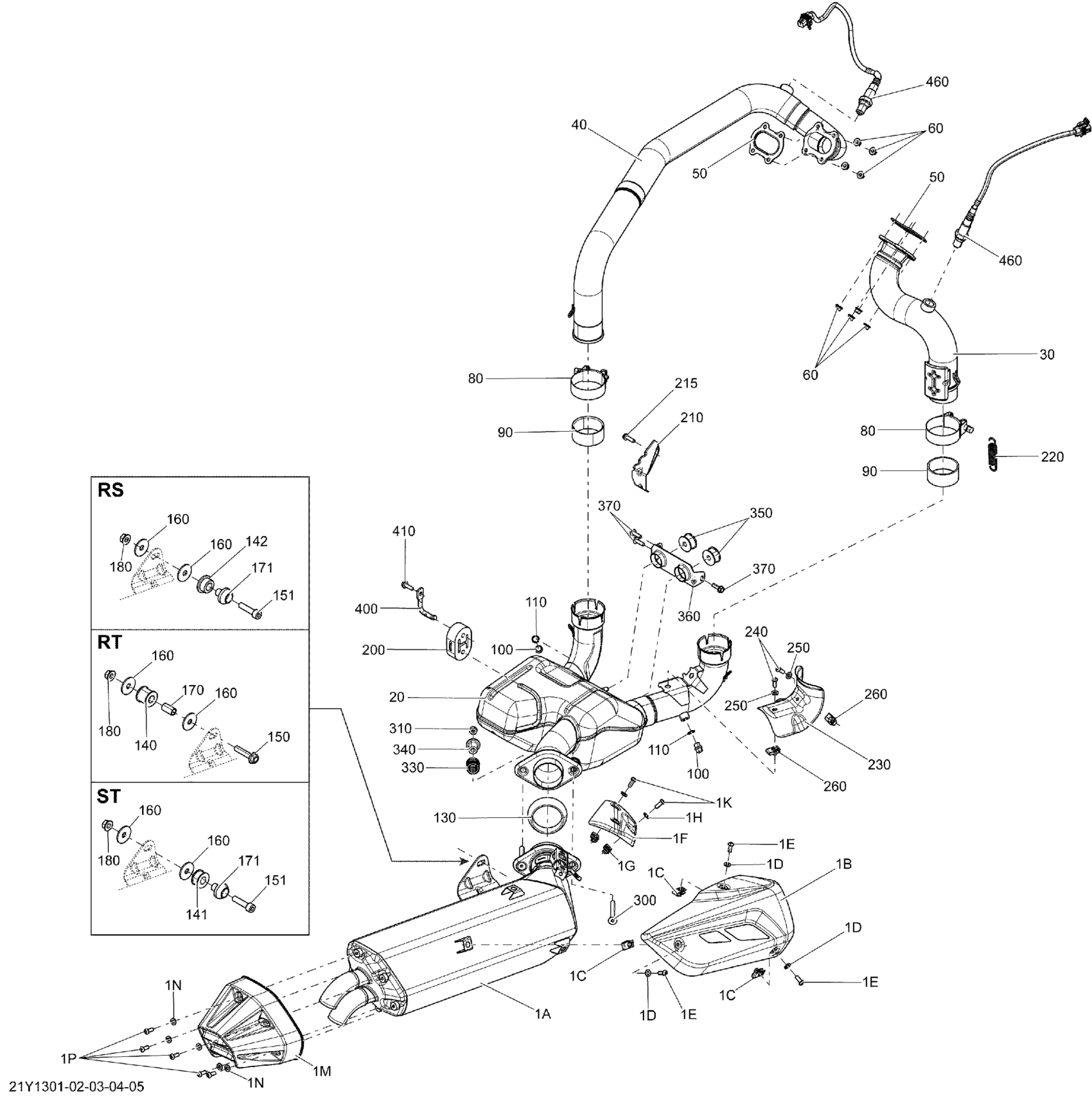

Can-Am Spyder RT_RTS SE5, 2013 Exhaust System Diagram
