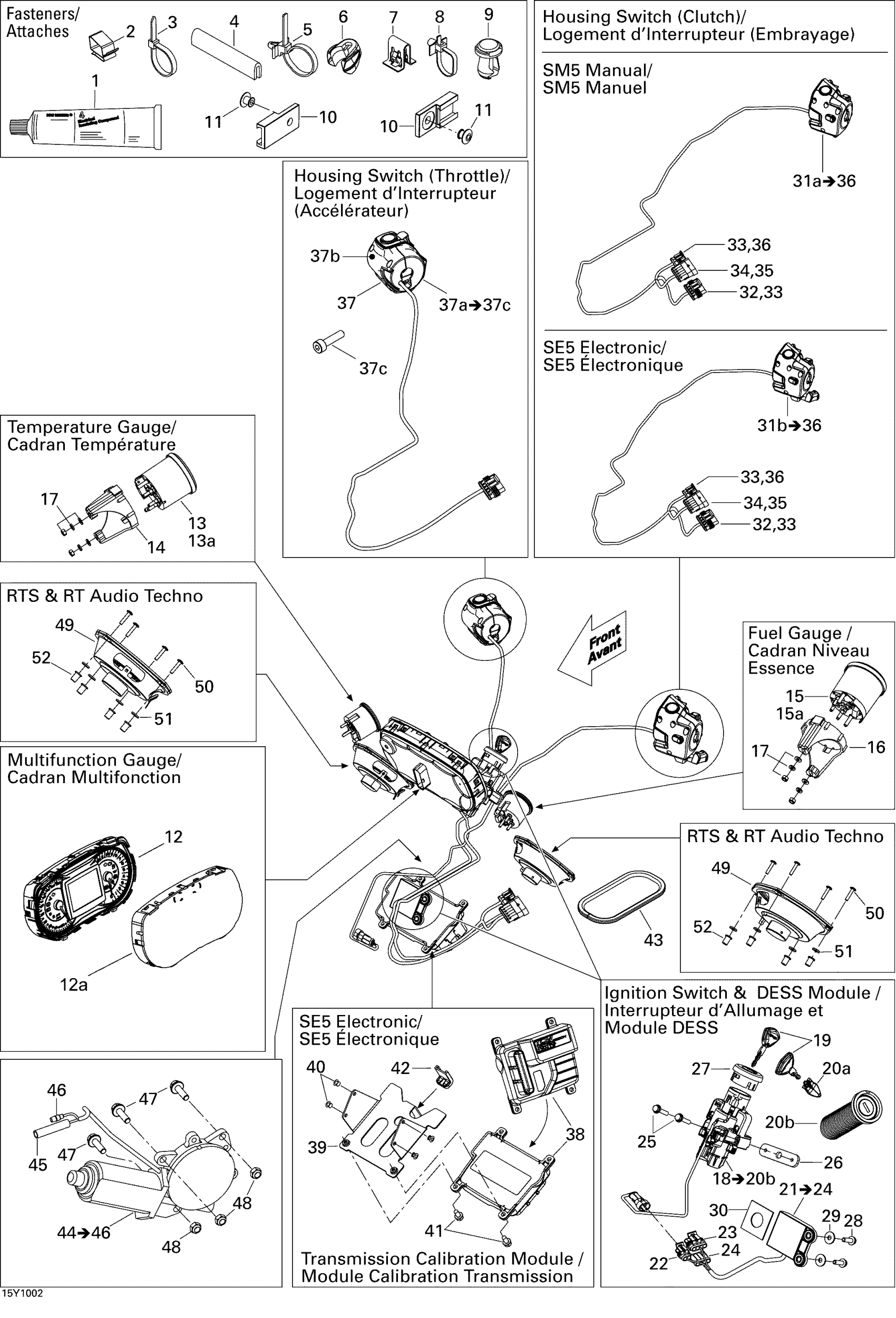

Can-Am Spyder RT, RTS Roadster SM5, 2010 Electrical Accessories, Steering SM5 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

2

Clip

414227300

$1.45

3

Tie-Rap 180 mm

414115200

$0.09

3

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

3

Tie Wrap 368 mm

293750008

$0.85

4

Trim 1000Mm Long

219704354

$14.74

5

Tie-Rap 173 mm

293750009

$0.85

6

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

7

Edge Clip

517302785

$0.70

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Tuflok Plastic Rivet

293150230

$1.21

10

Clip

270000141

$8.33

11

Pop Rivet 3/16"

390402400

$0.25

12

Multifunction Speedometer

710002799

$1,330.00

12a

Lens | XTP

415129349

$23.05

13

TEMP GAUGE - Call your local BRP dealership | RTS

710002253

Unavailable

13

TEMP GAUGE - Call your local BRP dealership | RT Audio/Techno

710002254

Unavailable

13a

LED BULB - Call your local BRP dealership

219800181

$6.00

14

CASE HOLDER - Call your local BRP dealership

710002067

Unavailable

15

FUEL GAUGE - Call your local BRP dealership | RTS

710002255

Unavailable

15

FUEL GAUGE - Call your local BRP dealership | RT Audio/Techno

710002256

Unavailable

15a

LED BULB - Call your local BRP dealership

219800181

$6.00

16

CASE HOLDER - Call your local BRP dealership

710002067

Unavailable

17

HARDWARE KIT - Call your local BRP dealership | RTS , RT Audio/Techno

219800155

Unavailable

18

Ignition Switch and DESS Module Kit | Includes 18 to 20b, 21 to 24

219800131

Unavailable

19

Key Set with Cover (1 key)

710002969

$26.00

20a

Key Sleeve

710003597

$26.00

20b

Not Available As Spare Part - Friction Washer

Unavailable

21

Ignition Switch and DESS Module Kit | Includes 18 to 20b, 21 to 24

219800131

Unavailable

22

Female Housing, 2 Circuits

409209500

$13.48

23

Female Housing, 4 Circuits

409209700

$12.97

24

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

25

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

26

Switch Support

710001365

$21.00

27

SWITCH COVER - Call your local BRP dealership

710001194

Unavailable

28

Hexagonal Head Screw

210262050

$1.74

29

Flat Washer 6 mm

234062410

$0.64

30

Rubber Bumper

293830091

$8.29

31a

LH SWITCH HOUSING - Call your local BRP dealership | SM5 Manual, Includes 31a to 36

710001382

Unavailable

31b

Not Available As Spare Parts

XXX

Unavailable

32

Female Housing, 4 Circuits

409209700

$12.97

33

Male Terminal

515176164

$6.43

34

Housing, 6 Circuits | Europe Models

710000815

Unavailable

35

Female Terminal

710001340

$5.11

36

Female Housing, 3 Circuits

409209600

$35.35

37

RH Switch Housing | Produced Before February 01 2010

710001393

Unavailable

37a

Logem.Inter. *Housing-Switch | Includes 37a to 37c, Produced After February 01 2010

710004015

$420.00

37b

REAR THROTTLE SIDE HOUSING - Call your local BRP dealership

219800211

Unavailable

37c

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.00

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Trim 1000Mm Long

219704354

$14.74

44

Windshield Motor

278002579

$184.57

45

Insulation Sheath

278000231

$4.13

46

Male Terminal

278000230

$3.48

47

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

48

Elastic Stop Nut M6

232561434

$1.55

49

FRONT SPEAKER - Call your local BRP dealership | RTS , RT Audio/Techno

710001403

$104.58

50

TORX SCREW M4 X 20 - Call your local BRP dealership

250000405

$1.55

51

Flat Washer

517225900

$0.17

52

Well Rubber Nut M4 X 0.7

705003635

$6.00
