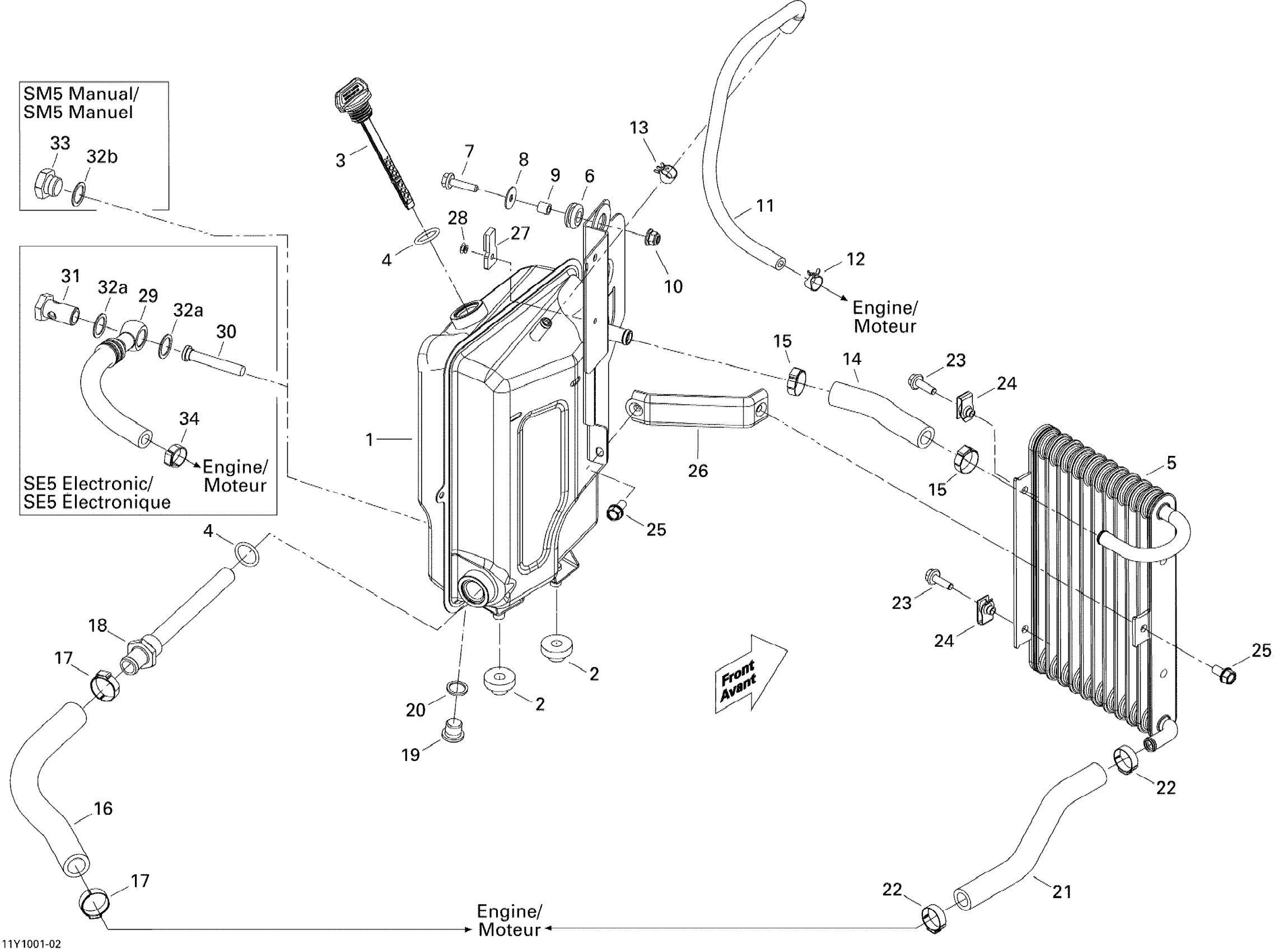

Can-Am Spyder RT, RTS Roadster SM5, 2010 Oil System SM5 Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

519000246

Unavailable

2

Grommet

709200285

$8.38

3

Oil Cap

519000155

$16.00

4

O-Ring

709000218

$7.00

5

OIL RADIATOR - Call your local BRP dealership

519000123

Unavailable

6

Grommet

709000582

$4.38

7

Hex. Flange Screw M6 X 25

207662544

$0.53

8

Flat Washer

224060201

$1.15

9

Bushing

293900105

$6.26

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Formed Hose

519000208

$29.00

12

Spring Clamp

414415200

$0.83

13

Spring Clamp

414655700

$0.68

14

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

15

Oetiker Clamp

293650186

$3.33

16

15,9 MM HOSE 1000MM LONG - Call your local BRP dealership

219704432

Unavailable

17

Gear Clamp

509000552

$6.45

18

Strainer

519000219

$37.00

19

Fill Level Plug | 4X4

705500504

$7.61

20

Copper Washer | 4X4

705500506

$0.36

21

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

22

Oetiker Clamp

293650186

$3.33

23

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

24

Panel Nut M6 X 1.0

250100198

$1.73

25

Hex. Flange Screw M6 X 12

210261250

$1.56

26

RADIATOR SUPPORT - Call your local BRP dealership

519000175

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32a

Not Available As Spare Parts

XXX

Unavailable

32b

Copper Washer

519000148

$4.00

33

HEX. HEAD PLUG M16 X 1.5 - Call your local BRP dealership

250100114

$12.00

34

Not Available As Spare Parts

XXX

Unavailable
