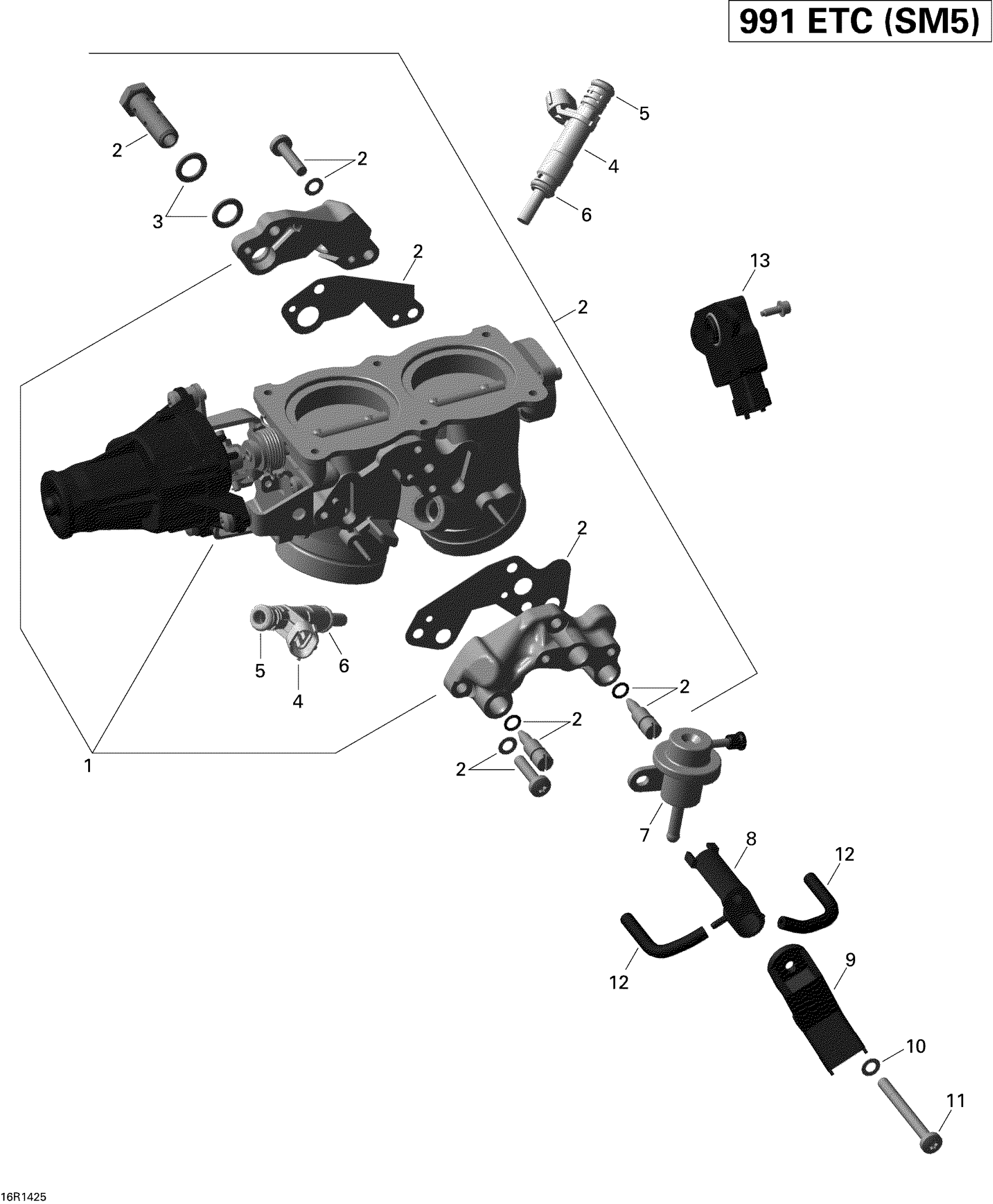

Can-Am Spyder RS SM5, 2014 Throttle Body Diagram

#

Description

Price

1

Corps Papillon *Throttle Body | Includes 1 to 13

420686292

$924.00

2

Venturi Repair Device Kit | Includes 2 to 3

420281243

$169.00

3

Aluminum Sealing Ring

420250016

$4.41

4

Fuel Injector Ass'y | Includes 4 to 6

420874488

$120.00

5

O-Ring

420631220

$11.48

6

O-Ring

420431890

$4.95

7

Pressure Regulator

420274105

$106.00

8

Adapter

420460290

$20.00

9

Pressure Sensor

270600040

$157.92

10

SPRING WASHER - Call your local BRP dealership

420845020

$0.83

11

ALLEN SCREW M6 X 60 - Call your local BRP dealership

420240373

$7.03

12

Hose, Sensor

420960118

$17.00

13

Potentiometer

420274095

$111.00
