Description

Price

1

Top Balancer

420220442

$153.00

2

Ball Bearing

420832362

$24.00

3

Oil Seal

420250130

$17.66

4

Flange Bearing

420211686

$27.00

5

HEX. SCREW M6 X 20 - Call your local BRP dealership

420940560

Unavailable

6

Flat Washer

224061121

$0.44

7

Chain Guide

420236380

$18.00

8

Hex. Flange Screw M6 X 35

207063544

$1.35

9

FLAT WASHER - Call your local BRP dealership

420827305

$6.52

10

CAMSHAFT EXHAUST - Call your local BRP dealership

420620945

Unavailable

11

INTAKE CAMSHAFT - Call your local BRP dealership

420620940

Unavailable

12

TIMING GEAR - Call your local BRP dealership

420435112

Unavailable

13

TIMING GEAR - Call your local BRP dealership

420435116

Unavailable

14

Socket Head Screw M6 X 11.5

420840379

$5.91

15

Woodruff Key

420246055

$1.99

16

Gear-Balance Assy. | Includes 16 to 17

420295777

$104.00

17

Not Available As Spare Part - Friction Washer

Unavailable

18

BALANCING - Call your local BRP dealership

420219340

$11.00

19

HEX. NUT M14 X 1 - Call your local BRP dealership

420942571

Unavailable

20

Allen Screw M6 X 14

420840391

$1.49

21

Chain Guide

420236322

$17.00

22

DISTANCE SCREW M6 X 16 - Call your local BRP dealership

420240960

$10.52

23

Flange Bearing

420211756

$72.00

24

DOWEL TUBE - Call your local BRP dealership

420929501

Unavailable

25

SLEEVE - Call your local BRP dealership

420247980

Unavailable

26

Hex. Screw M8 X 45

207084544

$1.25

27

Hex. Screw M8 X 25

207182544

$0.74

28

SPRING WASHER - Call your local BRP dealership

420845030

Unavailable

29

Camshaft Drive Gear Ass'Y | Includes 7 to 8

420295762

$105.00

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Needle Bearing

420632162

$24.00

32

Thrust Washer

420627190

$7.00

33

Flange Bearing

420211766

$74.00

34

Hex. Screw M8 X 18

207181860

$1.48

35

SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership

420240404

$1.83

36

Distribution Drive Gear Ass'Y | Includes 25 to 26

420295767

$105.00

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Camshaft Chain

420297957

$97.66

39

Chain Guide

420236310

$29.97

40

Chain Tension Guide

420236300

$32.28

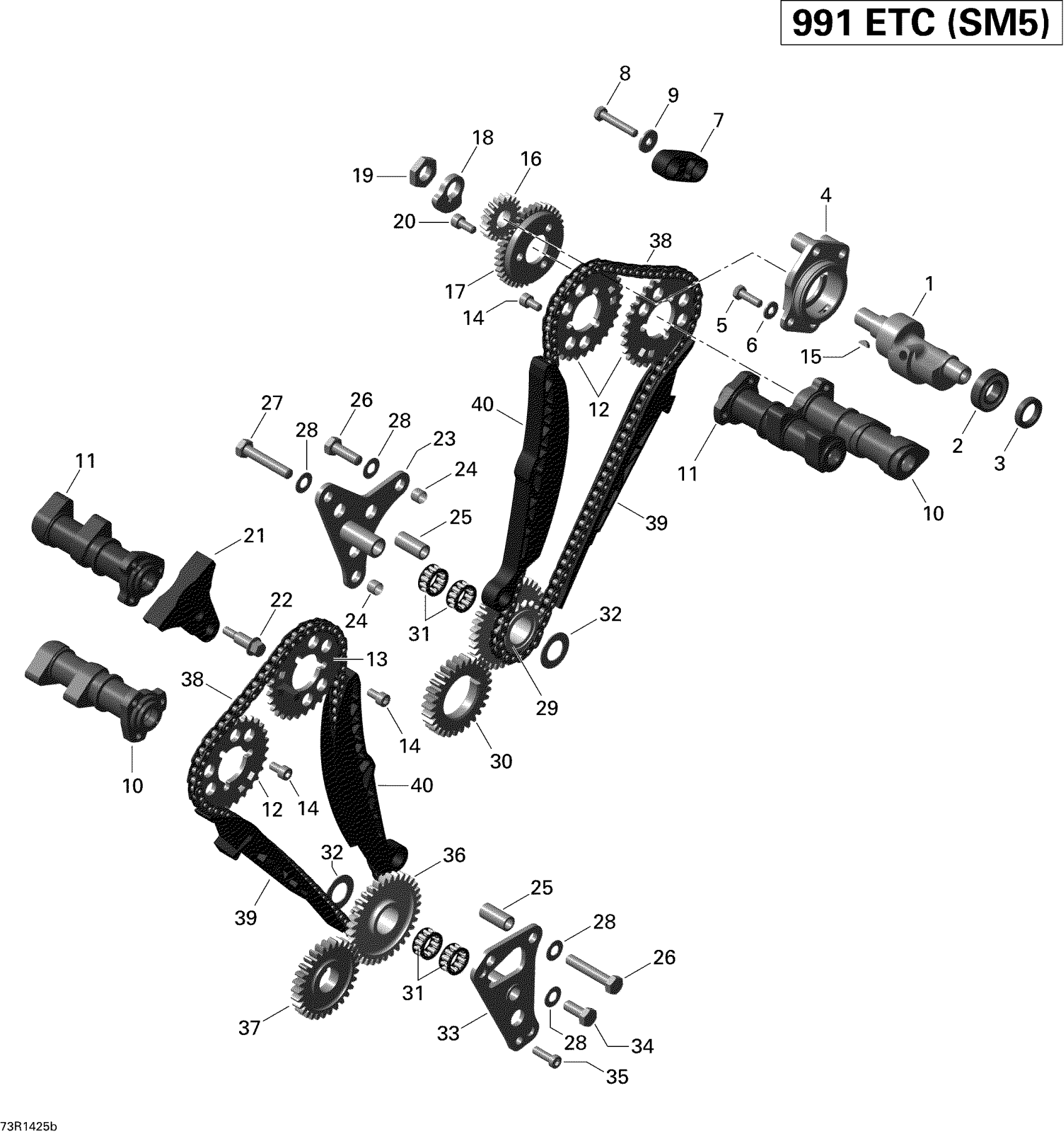

Can-Am Spyder RS SM5, 2014 Valve Train Diagram
