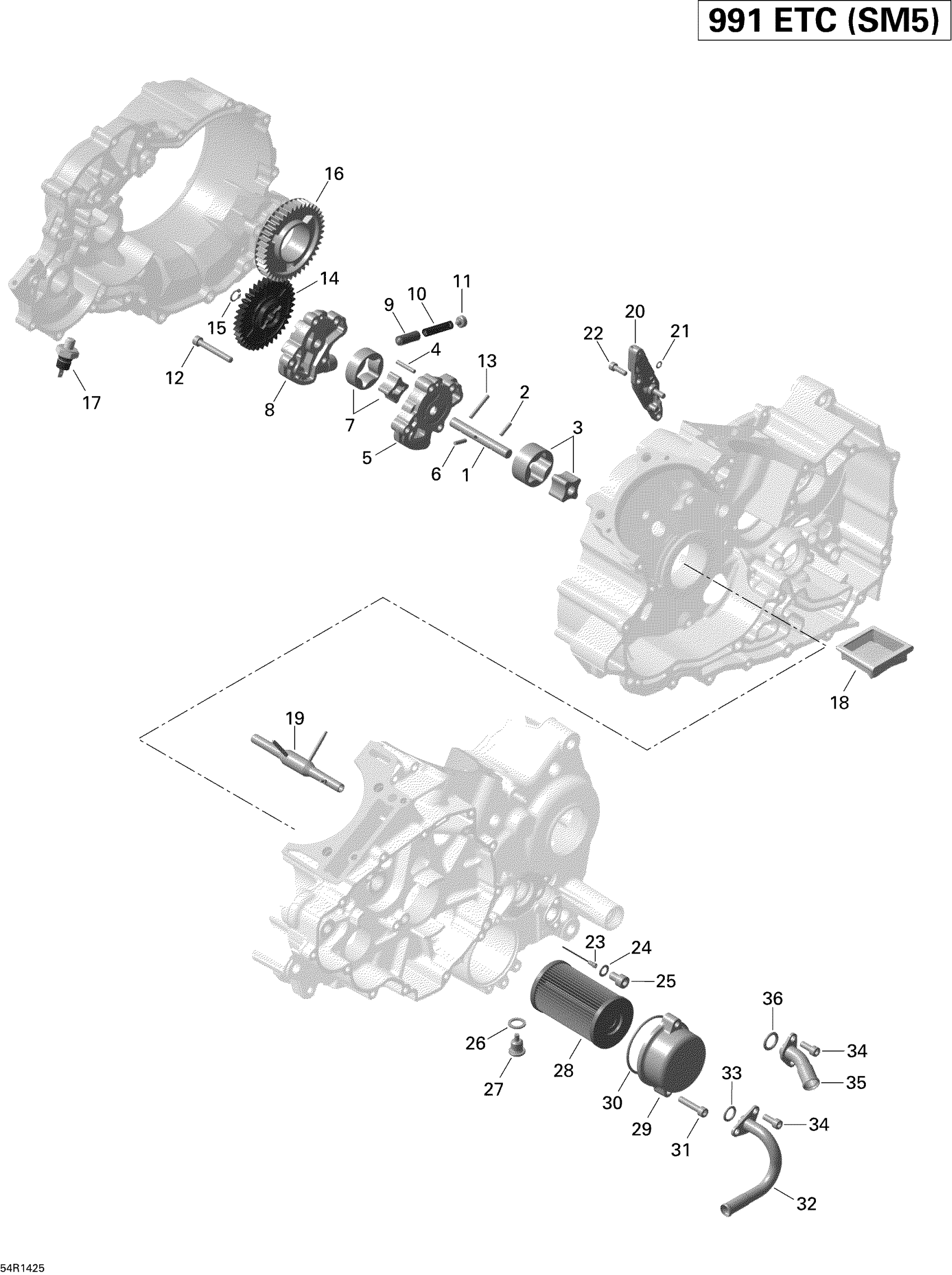

Can-Am Spyder RS SM5, 2014 Engine Lubrication Diagram

#

Description
Price

1

Oil Pump Shaft

420220425

$18.00

2

Needle Pin

420232731

$1.56

3

Oil Pump Rotor, Suction

420256681

$34.58

4

NEEDLE PIN - Call your local BRP dealership

420232971

$3.92

5

Oil Pump Housing

420211625

$41.00

6

Needle Pin

420232731

$1.56

7

Oil Pump Rotor, Pressure

420256671

$32.28

8

Oil Pump Cover Ass'y | Includes 8 to 11

420211635

$92.00

9

Pressure Regulating Piston

420256510

$27.66

10

Spring

420239449

$11.00

11

SCREW - Call your local BRP dealership

420241651

Unavailable

12

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

205064544

Unavailable

13

Needle Pin

420232431

$3.67

14

OIL PUMP GEAR, 37 TEETH - Call your local BRP dealership

420634488

Unavailable

15

Circlip

504152282

$3.11

16

Oil Gear Pump, 42 Teeth

420634478

$29.00

17

Oil Pressure Switch

420256912

$19.00

18

Crible D'Huile *Sieve-Oil

420256498

$17.00

19

Oil Tube

420656232

$62.00

20

OIL DUCT COVER - Call your local BRP dealership

420656595

Unavailable

21

O-Ring

420950420

$12.00

22

Allen Screw M5 x 16

420840514

$1.85

23

OIL NOZZLEI - Call your local BRP dealership

420456250

$35.00

24

Sealing Ring

420950141

$1.64

25

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

$1.49

26

Copper Washer

420250640

$0.81

27

Magnetic Drain Plug M12 X 1.5

420241780

$17.66

28

Oil Filter

420956747

$16.87

29

Oil Cover Filter

420610233

$25.00

30

O-Ring

420230923

$2.59

31

Socket Head Screw M6 X 30

205063044

$1.42

32

BENT OUTLET - Call your local BRP dealership

420656540

$28.00

33

O-Ring

420950815

$5.52

34

Socket Head Screw M6 x 16

420241237

$1.85

35

OIL INLET ELBOW - Call your local BRP dealership

420656556

Unavailable

36

O-Ring

293300024

$7.05
