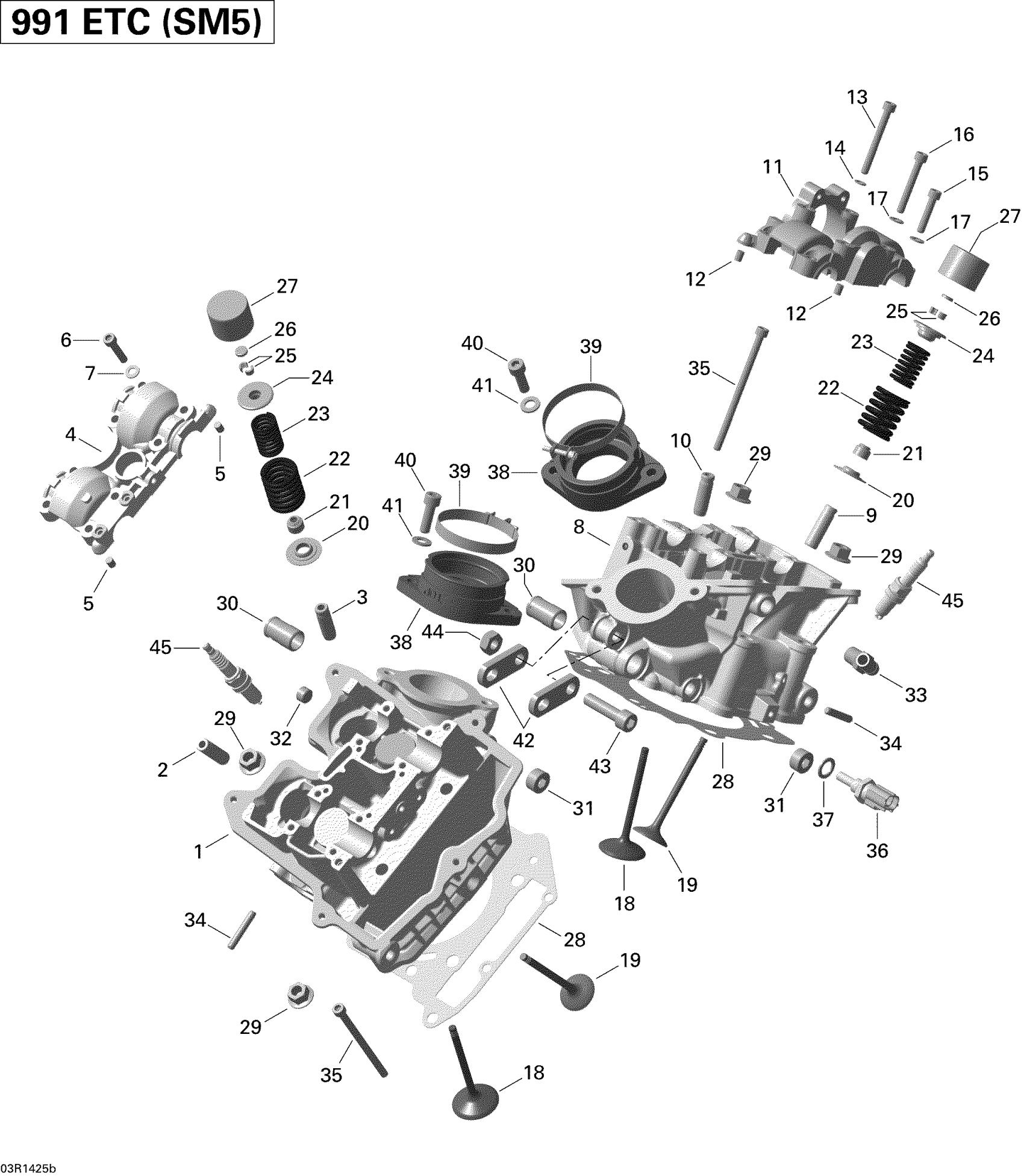

Can-Am Spyder RS SM5, 2014 Cylinder Head Diagram

#

Description
Price

1

Front Cylinder Head Ass'y | Inludes 1 to 5

420413034

$873.00

2

VALVE GUIDE, EXHAUST - Call your local BRP dealership

420253926

Unavailable

3

VALVE GUIDE, INTAKE - Call your local BRP dealership

420253921

$16.12

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Center Pin

420232210

$8.29

6

Socket Head Screw M6 X 30

205063044

$1.42

7

FLAT WASHER - Call your local BRP dealership

420927945

$1.38

8

REAR CYLINDER HEAD ASS'Y - Call your local BRP dealership | Inludes 8 to 12

420413032

Unavailable

9

VALVE GUIDE, EXHAUST - Call your local BRP dealership

420253926

Unavailable

10

VALVE GUIDE, INTAKE - Call your local BRP dealership

420253921

$16.12

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Center Pin

420232210

$8.29

13

Allen Screw M6 X 55

420240332

$4.62

14

SHIM - Call your local BRP dealership

420927863

$1.00

15

Socket Head Screw M6 X 30

205063044

$1.42

16

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

205064544

Unavailable

17

FLAT WASHER - Call your local BRP dealership

420927945

$1.38

18

Exhaust Valve 31 mm

420254027

$73.42

19

Intake Valve, 38 mm

420254295

$36.89

20

Valve Spring Shim

420253967

$11.06

21

Seal

420230510

$11.77

22

VALVE SPRING, OUTER - Call your local BRP dealership

420238211

$17.66

23

Valve Spring, Inner

420238201

$20.74

24

Valve Spring Retainer

420253957

$12.91

25

Valve Cotter

420253645

$6.11

26

SHIM 2.3 - Call your local BRP dealership

420253974

$11.15

26

SHIM 2.325 - Call your local BRP dealership

420254030

$6.52

26

Shim 2.35

420253975

$12.52

26

SHIM 2.375 - Call your local BRP dealership

420254031

$6.52

26

SHIM 2.4 - Call your local BRP dealership

420253976

$11.15

26

SHIM 2.425 - Call your local BRP dealership

420254032

$6.52

26

SHIM 2.45 - Call your local BRP dealership

420253977

$11.15

26

SHIM 2.475 - Call your local BRP dealership

420254033

$6.52

26

SHIM 2.5 - Call your local BRP dealership

420253978

$11.15

26

SHIM 2.525 - Call your local BRP dealership

420254034

$6.52

26

SHIM 2.55 - Call your local BRP dealership

420253979

$11.15

26

SHIM 2.575 - Call your local BRP dealership

420254035

$6.52

26

SHIM 2.6 - Call your local BRP dealership

420253980

$11.15

26

Shim 2.625

420254036

$7.31

26

SHIM 2.65 - Call your local BRP dealership

420253981

$11.15

26

Shim 2.675

420254037

$7.31

26

SHIM 2.7 - Call your local BRP dealership

420253982

$11.15

26

SHIM 2.725 - Call your local BRP dealership

420254038

$6.52

26

SHIM 2.75 - Call your local BRP dealership

420253983

$11.15

26

SHIM 2.775 - Call your local BRP dealership

420254039

$6.52

26

SHIM 2.8 - Call your local BRP dealership

420253984

$11.15

26

SHIM 2.825 - Call your local BRP dealership

420254040

$6.52

26

SHIM 2.85 - Call your local BRP dealership

420253985

$11.15

26

SHIM 2.875 - Call your local BRP dealership

420254041

$6.52

26

SHIM 2.9 - Call your local BRP dealership

420253986

$11.15

26

SHIM 2.925 - Call your local BRP dealership

420254042

$6.52

26

SHIM 2.95 - Call your local BRP dealership

420253987

$11.15

26

SHIM 2.975 - Call your local BRP dealership

420254043

$6.52

26

SHIM 3.0 - Call your local BRP dealership

420253988

$14.06

26

SHIM 3.025 - Call your local BRP dealership

420254044

Unavailable

26

SHIM 3.05 - Call your local BRP dealership

420253989

$14.06

27

Tappet Valve

420253990

$55.35

28

Cylinder Head Gasket

420650210

$23.05

29

Hex. Flange Nut M10

233101414

$4.10

30

Elbow Fitting

420224090

$16.89

31

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.23

32

Plug Screw M12x1,5

420840658

$7.31

33

Angular Tube

420922242

$12.29

34

Stud, M6 X 19/16

420440131

$3.00

35

Socket Head Screw M6 X 100 This part replaces 420241601.

420241602

Unavailable

36

Temperature Sensor

420274040

$55.35

37

Copper Washer

420250640

$0.81

38

Intake Flange

420267151

$46.00

39

Hose Clamp

420251830

$13.51

40

Socket Head Screw M8 X 25

205082544

$0.92

41

Flat Washer 8.4 mm

420250315

$1.09

42

SUPPORT BRACKET - Call your local BRP dealership

420251100

$11.00

43

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

420640581

Unavailable

44

Hex. Nut M10 X 1.5

232006414

$1.11

45

Spark Plug, NGK KR8BI

219800231

$22.00
