Description

Price

1

CRANKSHAFT - Call your local BRP dealership

420890567

$1,260.00

2a

Cylinder & Pistons Ass'y | Includes 2a to 4

420623912

$628.00

2b

Piston Ass'y, 96.945 mm | Includes 2b to 3

420685491

$218.00

2b

Piston Ass'y, 96.955 mm | Includes 2b to 3

420685492

$218.00

3

Piston Ring Set

420295858

$90.00

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Piston Pin

420216222

$32.00

6

Piston Circlip

420245436

$4.33

7

Cylinder Gasket

420650390

$15.22

8

Drive Pin 5 X 10

420929650

$1.34

9

Chain Tensioner

415129408

$52.62

10

Plug Screw

420640457

$14.54

11

O-Ring

420430622

$3.61

12

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

420940637

$6.31

13

STUD M8/M10 - Call your local BRP dealership

420441444

Unavailable

14

Noise Sensor

420664031

$50.67

15

Hex. Nut M8

232081414

$0.60

16

Gasket Set, Engine

420685480

$281.00

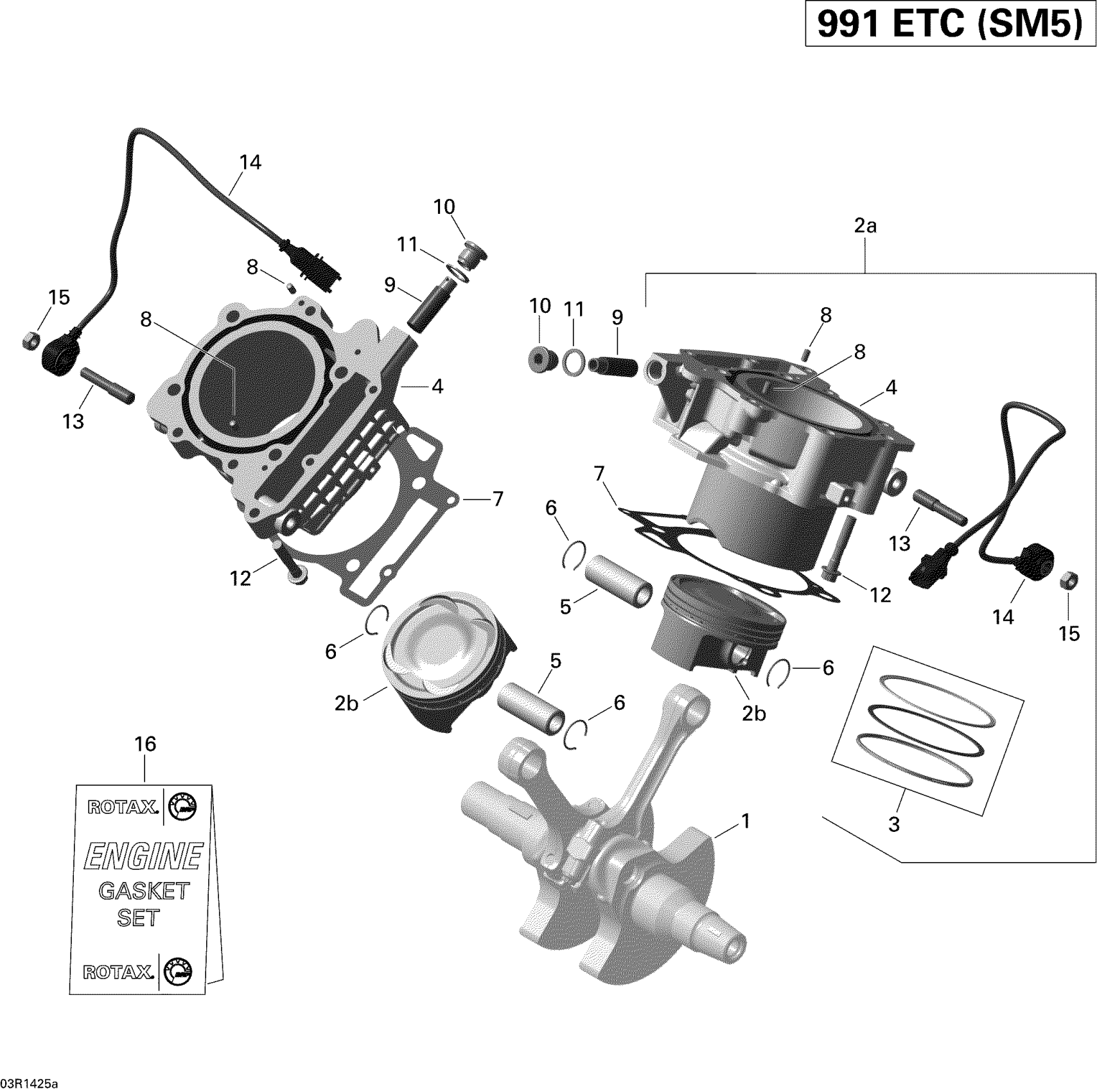

Can-Am Spyder RS SM5, 2014 Cylinder And Piston Diagram
