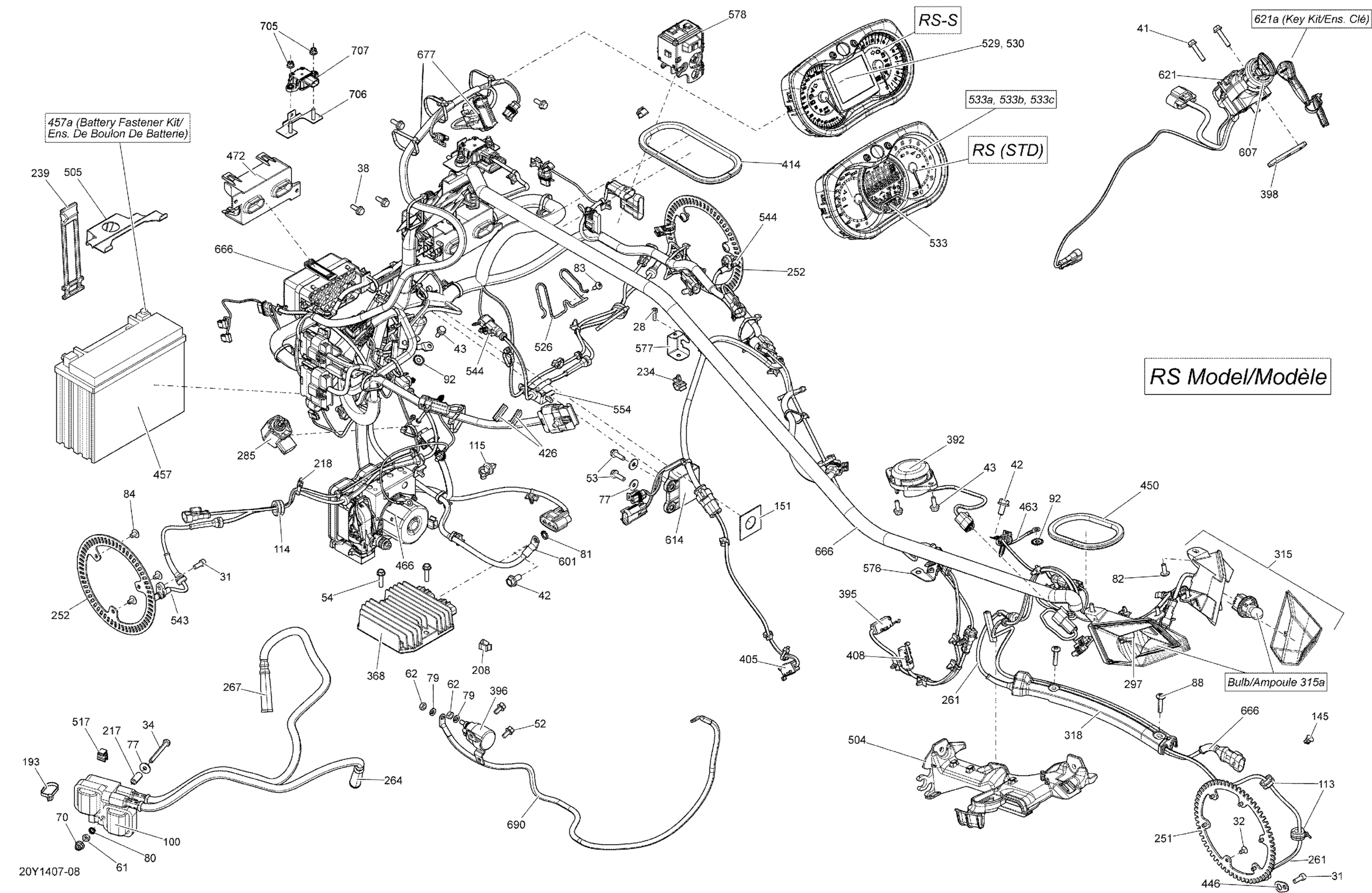

Can-Am Spyder RS SE5, 2014 Electrical System _20Y1407 Diagram

#

Description
Price

28

Socket Screw M5 X 16

205051644

$2.18

31

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

32

Socket Head Screw M5 X 10

205851036

$7.00

34

Hex. Screw M6 X 55

207065544

$1.70

38

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

41

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

42

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

43

Hex. Flange Screw M6 X 16

207661644

$0.61

52

Hex. Flange Screw M6 X 12

210261250

$1.56

53

Hexagonal Head Screw

210262050

$1.74

54

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

61

Hex. Nut M6

232061414

$0.44

62

Hex. Nut M6

232061600

$0.91

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

77

Flat Washer 6 mm

234062410

$0.64

79

Lock Washer Helical M6

234161601

$0.92

80

External Serrated Lock Washer 6 mm

234461608

$0.92

81

Serrated Lock Washer 8 mm

234481608

$1.09

82

Torx Truss Screw M6 X 16

250000721

$1.39

83

Torx Screw M5 X 14

250000742

$1.20

84

Torx-truss M/s M6 X 10

250000995

$3.61

88

Torx Truss Screw M6 X 30

250000843

$1.74

92

Lock Washer Serrated M6

250200041

$0.92

100

Ignition Coil

278001546

$129.32

106

Pop Rivet

293150150

$2.31

113

Grommet

293720084

$6.00

114

Grommet

293720095

$8.00

115

Mount Dart

293730040

$0.86

145

Tie Rap Mount

293750044

$2.00

151

Rubber Bumper

293830091

$8.29

208

Clip

414227300

$1.45

217

SPACER - Call your local BRP dealership

512059812

$9.38

218

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

234

Tie Rap Mount (screwable)

515176795

$5.11

239

Latch

520000528

$6.60

251

Sensor Wheel

705601372

$47.00

252

Front Sensor Wheel

705601512

$44.00

261

Speed Sensor

706202361

$165.00

264

Cable Ass'y

707000399

$72.00

267

Cable Ass'y

707000518

$66.00

285

Steering Position Sensor

219800354

$270.00

297

LH Tail Light Ass'y

515176850

$61.99

315

RH Tail Light Ass'y

515176849

$61.99

315a

Bulb

520000758

$7.49

318

PROTECTOR - Call your local BRP dealership

710001035

Unavailable

368

Voltage Regulator | XT, XTP, LTD

710001191

$193.82

392

Passenger Detection Switch

710008103

$72.28

395

Brake Light Switch Ass'y

710001357

$46.00

396

Starter Relay

710007777

$46.89

398

Switch Support

710001365

$21.00

405

Brake Pressure Switch Ass'y

710001379

$41.51

408

Brake Pressure Switch Ass'y

710001379

$41.51

414

Trim 1000Mm Long

219704354

$14.74

426

Trim 1000Mm Long

219704354

$14.74

446

Shim

710002024

$6.00

450

Trim 1000Mm Long

219704354

$14.74

457

Battery, 12 Volts, 21 Amperes

410922962

$160.52

457a

Battery Bolt Kit

250000282

$2.95

463

Fuel Tank Cable

710004368

Unavailable

466

VCM Module

219800375

$1,230.00

472

FUSE HOLDER SUPPORT - Call your local BRP dealership

710002388

Unavailable

493a

Rubber Cap Protector

219800280

$17.66

493b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

504

Rear Support

710002860

$11.00

505

Battery Holder

710002893

$17.00

517

Clip Tie-Rap

710002899

$8.45

526

Grommet Spindle

710003017

$15.00

529

Not Available As Spare Parts

XXX

Unavailable

530

Not Available As Spare Parts

XXX

Unavailable

533

MULTIFUNCTION SPEEDOMETER - Call your local BRP dealership | RS STD

710003526

Unavailable

533a

Speedometer Button | XTP

415129355

$13.94

533b

Gauge Ring

415129348

$11.71

533c

Lens | XTP

415129349

$23.05

543

Kit Speed Sensor

219800456

$87.00

544

Kit Speed Sensor

219800456

$87.00

576

Connectors Bracket

710003305

$13.00

577

KNOCK HOLDER SUPPORT - Call your local BRP dealership

710003306

Unavailable

578

Connector Support

710003310

Unavailable

601

Cable Neg

710004733

$62.00

607

Switch Cover

710003594

$16.00

614

Dess Module

710004916

$180.00

621

Ignition Switch | Includes 35b to 35b2

710007316

$296.00

621a

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.00

666

WIRING HARNESS_CHASSIS - Call your local BRP dealership | SM5

710003656

Unavailable

666

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 To YRS

710003657

Unavailable

677

WIRING HARNESS_CONSOLE - Call your local BRP dealership | Europe, Int'l

710003663

Unavailable

677

WIRING HARNESS_CONSOLE - Call your local BRP dealership

710004752

Unavailable

690

START CABLE - Call your local BRP dealership

710004735

Unavailable

705

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

706

YRS Holder

710003494

$16.00

707

Yaw Rate Sensor

710002677

$195.00
