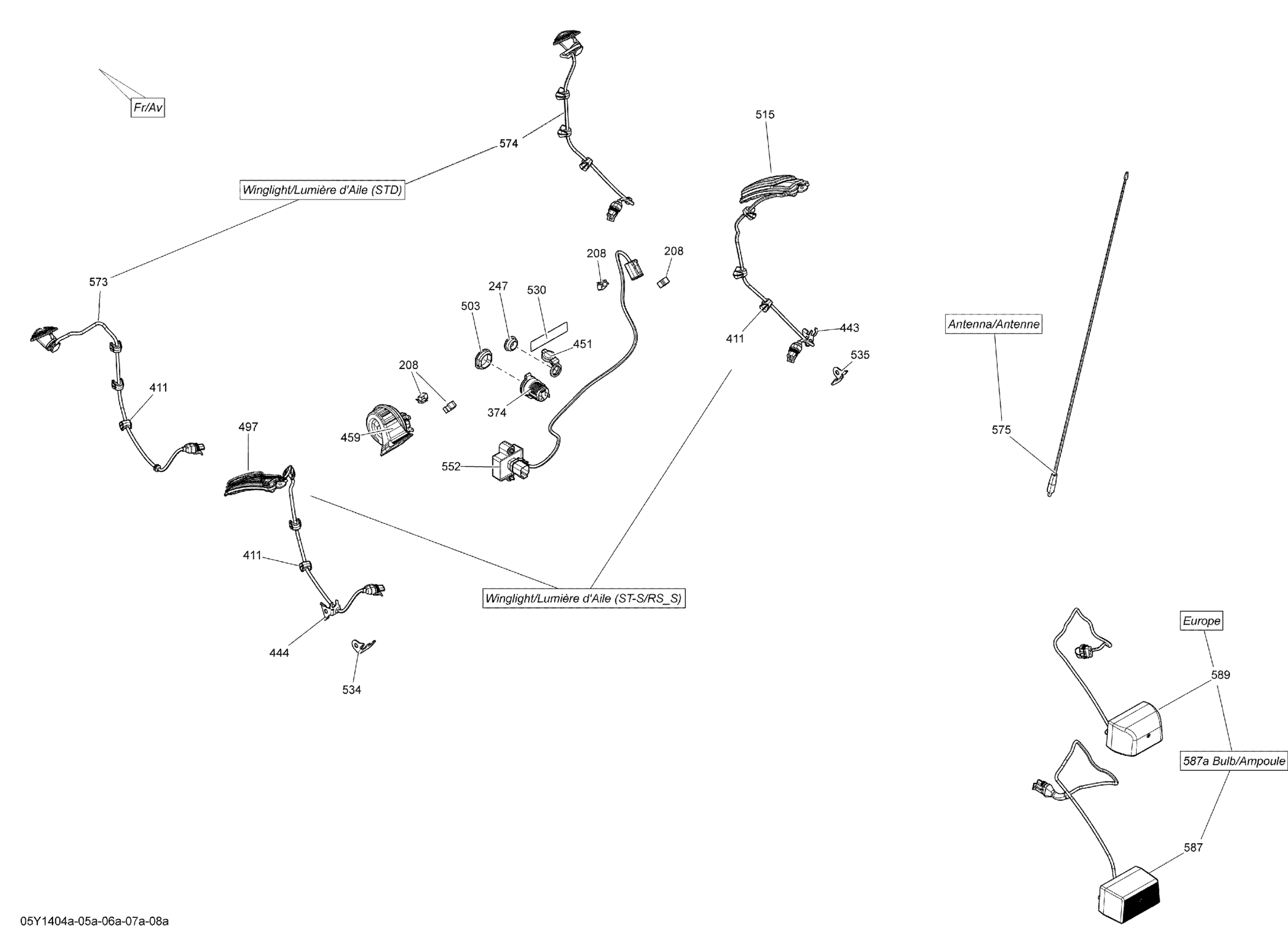

Can-Am Spyder RS SE5, 2014 Electrical Accessories Fender Light_05Y1407a Diagram

Description

Price

208

Clip

414227300

$1.45

247

Cap

705003464

$10.42

374

Not Available As Spare Parts

XXX

Unavailable

411

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

443

RH WIRE SUPPORT - Call your local BRP dealership

710002018

Unavailable

444

LH WIRE SUPPORT - Call your local BRP dealership

710002019

Unavailable

451

Not Available As Spare Parts

XXX

Unavailable

459

HORN - Call your local BRP dealership

710004229

$29.00

497

LH Position Light

710002691

$80.00

503

Rubber Plug

710002858

$2.75

515

Not Available As Spare Parts

XXX

Unavailable

530

RH/LH Fuse Box Decal

710003077

$1.00

534

LH Support Wire

710004860

$2.00

535

RH Support Wire

710004861

$2.00

552

CCK Module Ass'y | Includes 1300 to 1300d

710006467

$195.00

573

Position Light | STD Model

710003295

$62.00

574

Position Light | STD Model

710003295

$62.00

575

Not Available As Spare Parts

XXX

Unavailable

587

License Plate Light

710003348

$71.00

589

License Plate Light

710003349

$71.00

587a

Bulb 12V 10W | Not Shown

415129261

$2.00
