Description

Price

5

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

6

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

7

Not Available As Spare Parts

XXX

Unavailable

8

Hex. Flange Screw M6 X 16

207661646

$1.00

9

Hex. Flange Screw M6 X 20

207662044

$1.66

10

Hex. Flange Screw M8 X 130

230683034

$6.15

12

Hex. Flange Elastic Nut M8

233281414

$1.14

15

Not Available As Spare Parts

XXX

Unavailable

16

Panel Nut M8 X 1.25

250100118

$1.63

20

Front Frame

705201326

$82.00

50

Not Available As Spare Parts

XXX

Unavailable

52

RH Painted Lateral Support Ass'y

705204510

$160.00

53

LH Painted Lower Lateral Support

705202626

$86.00

57

RH LOWER SIDE SUPPORT - Call your local BRP dealership

705202680

Unavailable

58

LH UPPER SIDE SUPPORT - Call your local BRP dealership

705202681

Unavailable

65

Latch Support

705205078

$15.00

70

Not Available As Spare Parts

XXX

Unavailable

95

Frame

705204866

$1,390.00

11a

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

$3.93

11b

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

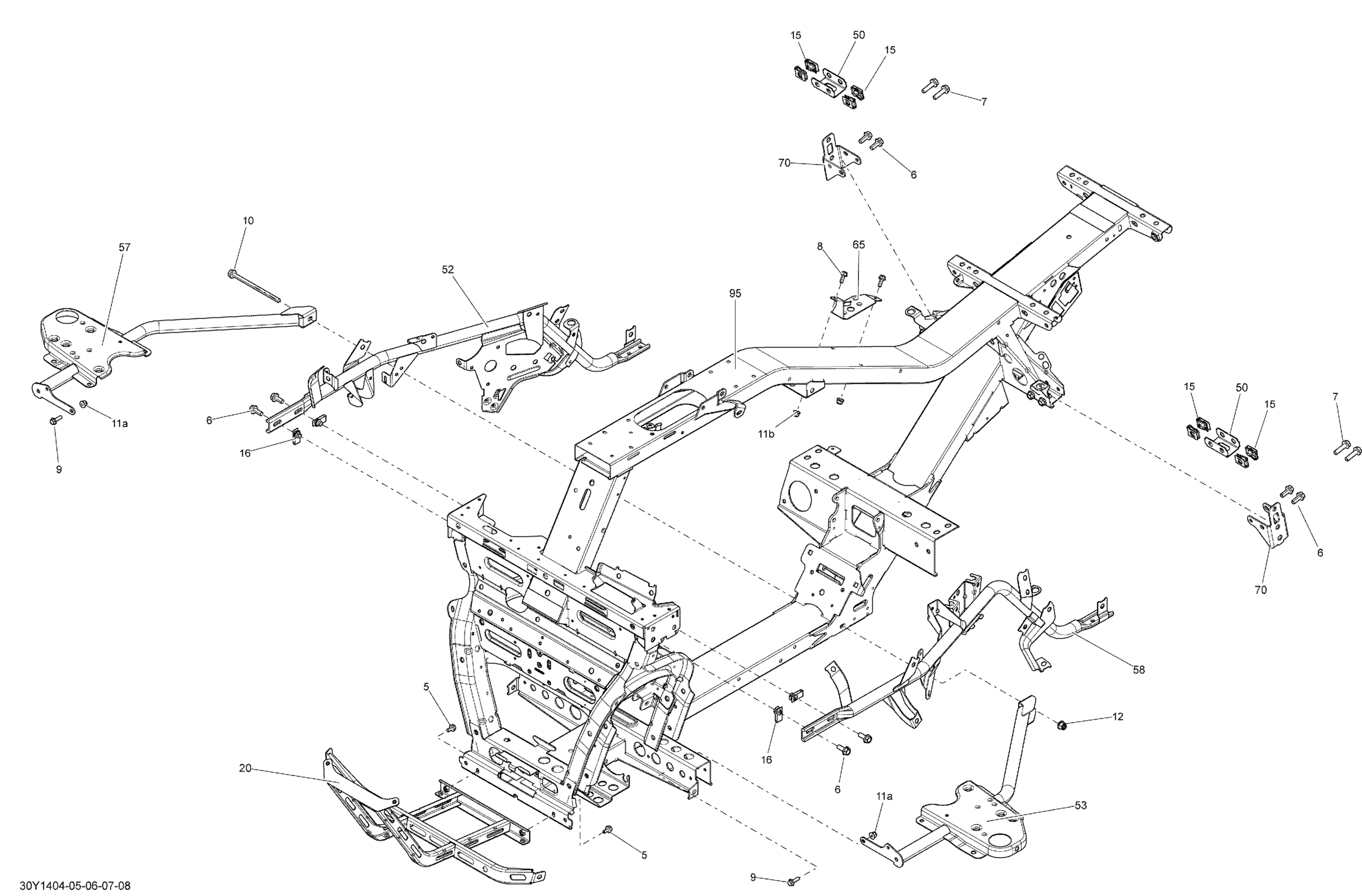

Can-Am Spyder RS SE5, 2014 Frame _30Y1407 Diagram

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

RH LOWER SIDE SUPPORT - Call your local BRP dealership

LH UPPER SIDE SUPPORT - Call your local BRP dealership

Not Available As Spare Parts
