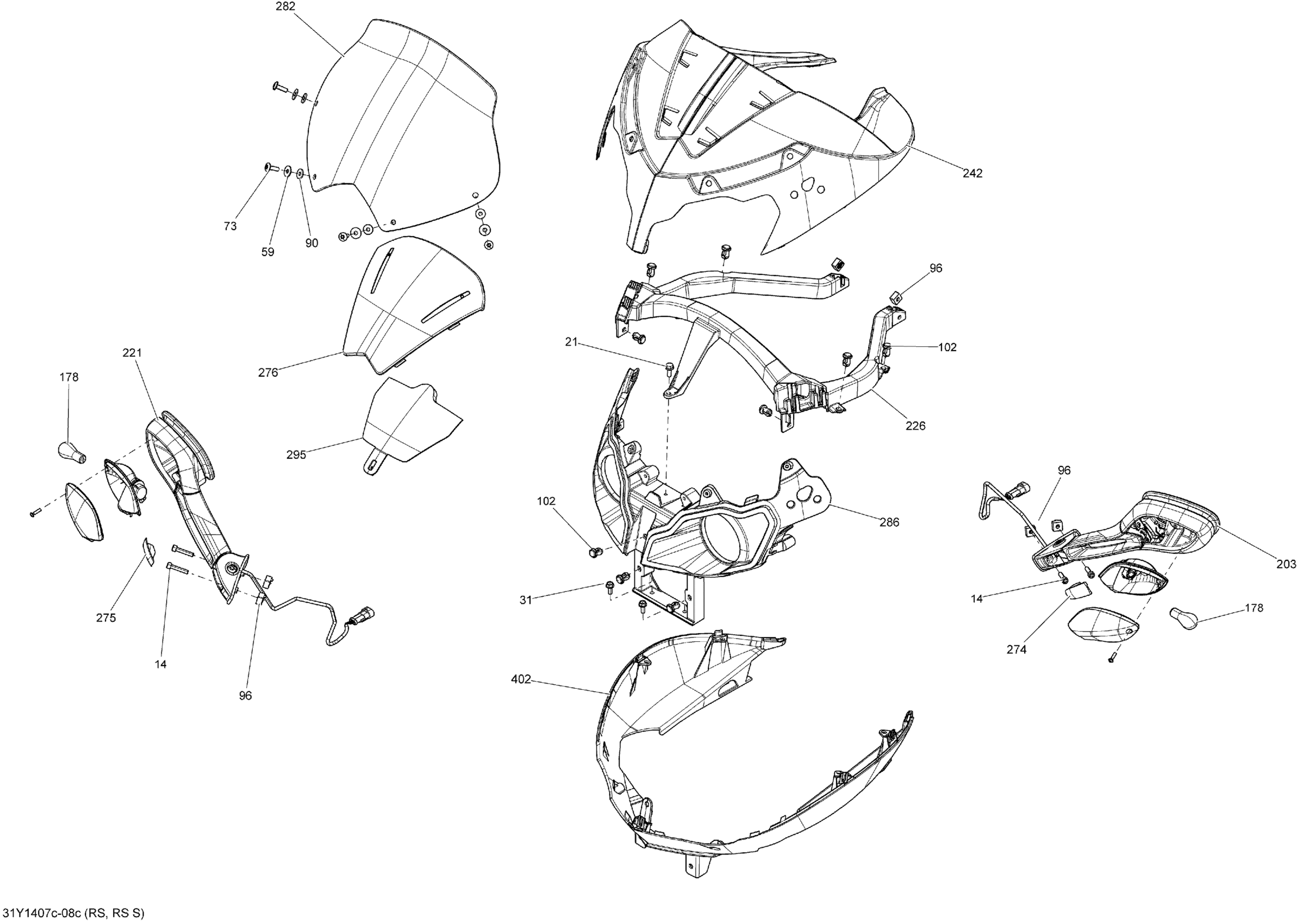

Can-Am Spyder RS SE5, 2014 Body And Accessories Windshield_31Y1407c Diagram

#

Description
Price

14

Socket Head Screw M6 X 30

205063060

$2.29

21

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

31

Hex. Flange Screw M6 X 16

210261650

$1.22

59

Stainless Steel Flat Washer

234062670

$1.74

73

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

90

Rubber Washer 5 mm

250200024

$1.77

96

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

102

Tuflok Plastic Rivet

293150230

$1.21

178

Not Available As Spare Part - Friction Washer

Unavailable

203

LH Mirror Ass'y

705005574

$291.00

221

RH Mirror Ass'y

705005575

$291.00

226

Console Support

705001548

$55.00

242

Upper Console

705002082

$175.00

274

LH MIRROR CAP - Call your local BRP dealership

705002704

Unavailable

275

RH MIRROR CAP - Call your local BRP dealership

705002705

$10.00

276

UPPER CONSOLE DEFLECTOR - Call your local BRP dealership

705002712

$25.00

282

WINDSHIELD - Call your local BRP dealership

219800077

Unavailable

286

BLACK UPPER HEADLAMP - Call your local BRP dealership

705004795

Unavailable

295

Guide Chart

705009360

$28.00

402

Lower Console

705005882

$105.00
