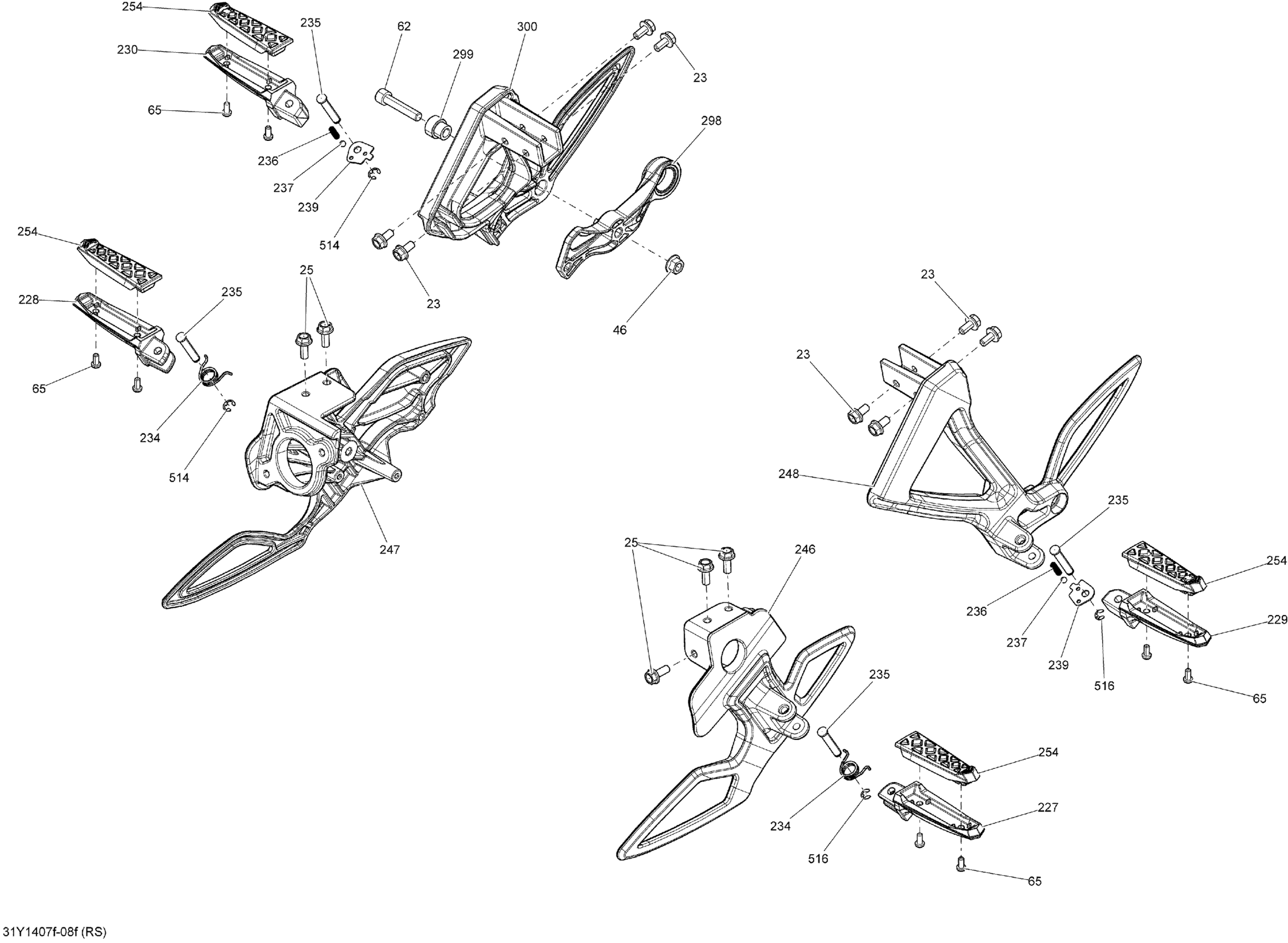

Can-Am Spyder RS SE5, 2014 Body And Accessories Footrest_31Y1407f Diagram

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Nut M10

233101600

$4.39

Allen Screw S.GRIP M10 X 50 | RS

244005060

$7.00

Allen Plastite Screw #12

250000099

$2.31

LH FRONT FOOTREST - Call your local BRP dealership | RS STD

705004180

Unavailable

RH FRONT FOOTREST - Call your local BRP dealership | RS STD

705004183

Unavailable

LH REAR FOOTREST - Call your local BRP dealership | RS STD

705004186

Unavailable

RH REAR FOOTREST - Call your local BRP dealership | RS STD

705004189

Unavailable

Spring | RS STD

705001701

$15.00

Retainer Pin | RS STD

705001702

$18.00

Spring | RS STD

705001704

$13.00

Ball

705001705

$6.00

Indexation Plate | RS STD

705001706

$12.00

LH FRONT FOOT SUPPORT - Call your local BRP dealership | RS STD

705004179

Unavailable

RH Foot Support | RS STD

705004182

$155.00

LH Rear Foot Support | RS STD

705004185

$150.00

Rubber Pad | RS STD

705002359

$25.00

SUPPORT_EXHAUST B-316 - Call your local BRP dealership | RS STD

705006852

Unavailable

BUSHING - Call your local BRP dealership | RS

705003765

Unavailable

RH REAR FOOTREST SUPPORT - Call your local BRP dealership | RS STD

705006603

Unavailable

Circlip | RS STD

705601030

$4.12

Circlip | RS STD

705601030

$4.12
