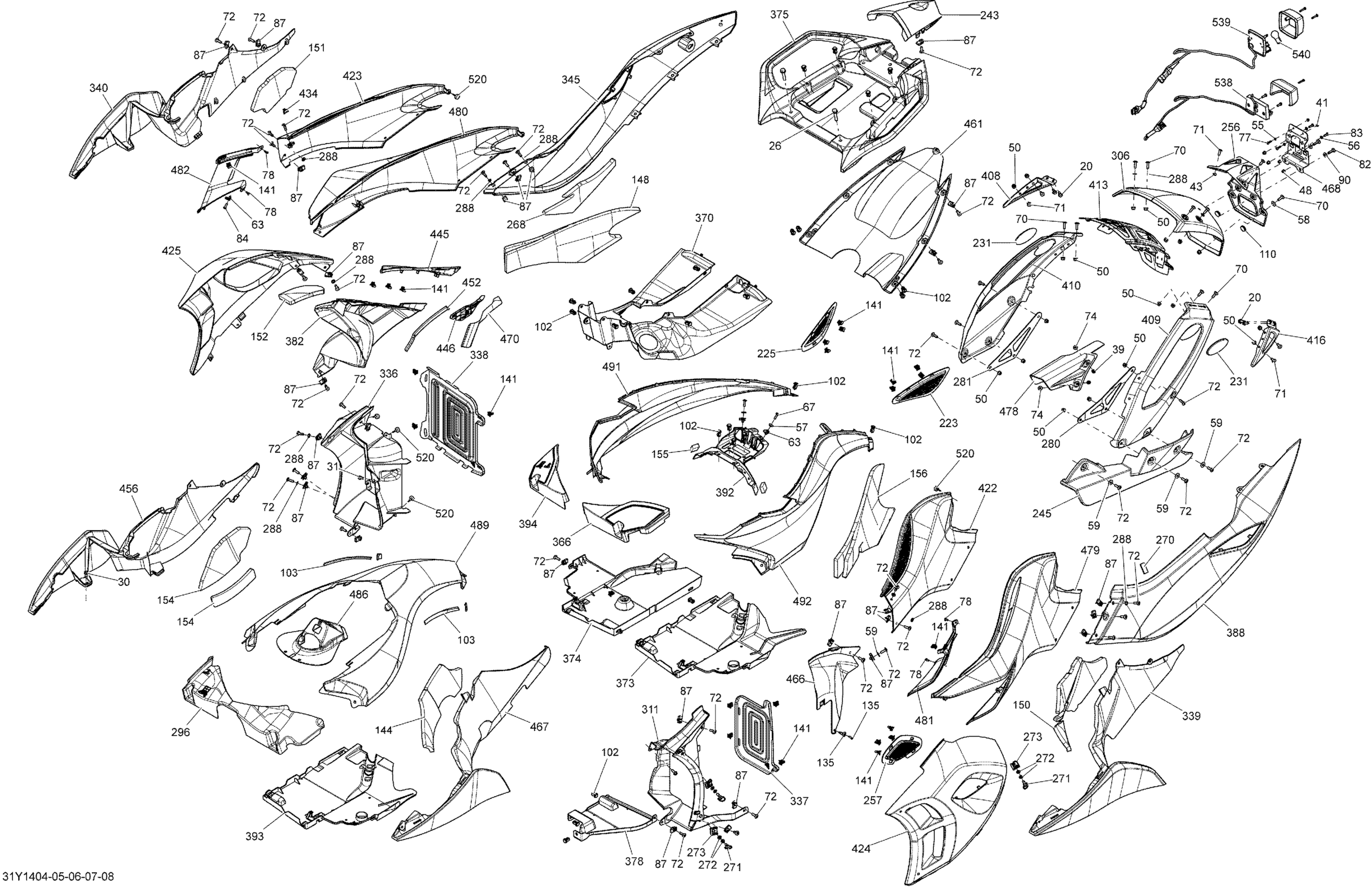

Can-Am Spyder RS SE5, 2014 Body And Accessories _31Y1407 Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

26

Hex. Flange Screw, Scotch Grip

207584034

$2.06

31

Hex. Flange Screw M6 X 16

210261650

$1.22

39

Nut M6 | Model-Australie, Brezil, Europe

232361600

$3.60

41

Elastic Stop Nut M4

232541484

$0.61

43

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.48

48

Elastic Flange Nut M5

233251494

$1.74

50

Hex. Flange Elastic Nut M6

233261494

$1.26

55

Flat Washer 4 mm

234041480

$0.61

56

Flat Washer M5

234051670

$1.74

57

Not Available As Spare Parts

XXX

Unavailable

58

Flat Washer M6, Stainless

234062600

$0.64

59

Stainless Steel Flat Washer

234062670

$1.74

63

Not Available As Spare Parts

XXX

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

70

Torx Truss Screw M6 X 20

250000303

$7.00

71

Torx Truss Screw M6 X 16

250000348

$1.74

72

Torx Truss Screw M6 X 20

250000350

$4.39

74

Torx Screw M6 X 12

250000454

$3.61

77

Torx Head Screw M4 X 16

250000797

$1.63

78

Torx Truss Screw K40 X 12

250000577

$1.74

82

Torx Truss Screw M6 X 25

250000807

$1.74

83

Socket Screw M5 X .80 X 16

250000652

$0.83

84

Not Available As Spare Parts

XXX

Unavailable

87

Panel Nut M6 X 1.0

250100198

$1.73

90

Rubber Washer 5 mm

250200024

$1.77

102

Tuflok Plastic Rivet

293150230

$1.21

103

Gasket, Neoprene 2000Mm Long

219704476

$12.64

110

Dual Lock Velcro Washer 3/4"

293740028

$4.00

135

Tuflock Phillips Plastic Screw

414745900

$1.30

141

Edge Clip

517302785

$0.70

144

LH ROCKER PANEL FOAM - Call your local BRP dealership | Model-RS

518324753

Unavailable

148

RH Upper Side Panel Foam

518325518

$29.00

150

Not Available As Spare Parts

XXX

Unavailable

151

Not Available As Spare Parts

XXX

Unavailable

152

RH LATERAL PANEL FOAM - Call your local BRP dealership

518327438

Unavailable

154

RH Rocker Panel Foam | Model-RS

518327520

$20.00

155

Not Available As Spare Parts

XXX

Unavailable

156

LH UPPER PANEL FOAM - Call your local BRP dealership

518327600

Unavailable

223

LH REAR GRILL - Call your local BRP dealership | Model-RS

705001542

Unavailable

225

RH REAR GRILL - Call your local BRP dealership | Model-RS

705001544

Unavailable

231

GIVI REFLECTOR - Call your local BRP dealership | Model-Australie, Brezil, Europe

219400237

Unavailable

231

RED LATERAL REFLECTOR - Call your local BRP dealership | Model-North America

219400236

Unavailable

243

Steel Black Rear Tip | Model-Steel Black Met.

705004657

$115.00

243

PEARL WHITE REAR TIP - Call your local BRP dealership | Model-Vegas White Pearl

705003894

Unavailable

245

Lower Belt Guard

705002092

$49.00

256

LICENCE PLATE SUPPORT - Call your local BRP dealership | Model-Australie, Brezil, Europe

705002367

Unavailable

257

LH LATERAL GRILL - Call your local BRP dealership

705002369

Unavailable

268

BLACK RH REAR PANEL FOAM - Call your local BRP dealership

705002509

Unavailable

270

Neoprene Seal (1PAC=3M)

219704364

$22.72

271

Quarter Turn Screw

705002649

$12.57

272

Washer

705002650

$2.75

273

Quarter Turn Nut

705002651

$3.84

280

LH REINFORCEMENT PLATE - Call your local BRP dealership

705002980

$30.00

281

RH Reinforcement Plate

705002981

$34.00

288

Plastic Washer

705003207

$1.00

296

Service Center | Model-RS

705003515

$26.00

306

FENDER REAR B-266 - Call your local BRP dealership | Model-Steel Black Met. Australie

705004666

Unavailable

306

FENDER REAR B-266 - Call your local BRP dealership | Model-Steel Black Met. Australie

705004666

Unavailable

306

FENDER REAR B-266 - Call your local BRP dealership | Model-Steel Black Met. Australie

705004666

Unavailable

306

Steel Black Rear Fender | Model-Steel Black Met. North America

705004660

$205.00

306

PEARL WHITE REAR FENDER - Call your local BRP dealership | Model-Vegas White Pearl Europe

705003899

Unavailable

306

Rear Fender | Model-Vegas White Pearl North America

705004085

$89.00

311

LH RADIATOR MOULDING - Call your local BRP dealership

705004636

Unavailable

336

RH RADIATOR MOULDING - Call your local BRP dealership

705005261

Unavailable

337

LH RADIATOR GRILL - Call your local BRP dealership

705005262

Unavailable

338

RH RADIATOR GRILL - Call your local BRP dealership

705005263

Unavailable

339

Not Available As Spare Parts

XXX

Unavailable

340

Not Available As Spare Parts

XXX

Unavailable

345

PANEL_BODY REAR R B-266 - Call your local BRP dealership | Model-Steel Black Met.

705008909

Unavailable

345

PANEL_BODY REAR R B-313 - Call your local BRP dealership | Model-Vegas White Pearl

705008914

Unavailable

345

Not Available As Spare Parts

XXX

Unavailable

366

Not Available As Spare Parts

XXX

Unavailable

370

RH TANK COVER - Call your local BRP dealership

705005410

Unavailable

373

Not Available As Spare Parts

XXX

Unavailable

374

DEFLECTOR_BODY PANEL RH - Call your local BRP dealership

705009351

Unavailable

375

Passenger Handle

705009315

$164.00

378

LH Skid Plate

705005447

$20.00

382

HEAT DEFLECTOR - Call your local BRP dealership

705005462

Unavailable

388

PANEL_BODY REAR L B-266 - Call your local BRP dealership | Model-Steel Black Met.

705008908

Unavailable

388

PANEL_BODY REAR L B-313 - Call your local BRP dealership | Model-Vegas White Pearl

705008912

Unavailable

392

Not Available As Spare Parts

XXX

Unavailable

393

LH Deflector Pannel | Model-RS

705005749

$28.00

394

Not Available As Spare Parts

XXX

Unavailable

408

RH REAR FENDER REINFORCEMENT - Call your local BRP dealership

705006070

Unavailable

409

LH Rear Fender Support

705006084

$110.00

410

RH REAR FENDER SUPPORT - Call your local BRP dealership

705006085

Unavailable

413

Rear Fender Support

705006086

$110.00

416

LH REAR FENDER REINFORCEMENT - Call your local BRP dealership

705006136

Unavailable

422

PANEL_BODY UP L B-266 - Call your local BRP dealership | Model-Steel Black Met. Brezil

705006261

Unavailable

423

PANEL_BODY UP R B-266 - Call your local BRP dealership | Model-Steel Black Met. Brezil

705006256

Unavailable

424

Black LH Side Panel | Model-Steel Black Met.

705006251

$320.00

424

PANEL_BODY LH B-313 - Call your local BRP dealership | Model-Vegas White Pearl

705006249

Unavailable

425

Black RH Side Panel | Model-Steel Black Met.

705006242

$320.00

425

PANEL_BODY RH B-313 - Call your local BRP dealership | Model-Vegas White Pearl

705006241

Unavailable

434

Not Available As Spare Parts

XXX

Unavailable

445

UPPER HEAT SEAL - Call your local BRP dealership

705006531

Unavailable

446

LOWER HEAT SEAT - Call your local BRP dealership

705006532

Unavailable

452

Neoprene Seal (1PAC=3M)

219704364

$22.72

456

RH ROCKER PANEL - Call your local BRP dealership | Model-RS

705006689

Unavailable

461

UNDER TAIL COVER - Call your local BRP dealership | Model-RS STD

705006829

Unavailable

466

LH INNER HEAT DEFLECTOR - Call your local BRP dealership

705006981

$65.00

467

LH Rocker Panel | Model-RS

705006985

$84.00

468

BACKUP LIGHT BRACKET - Call your local BRP dealership | Model-Australie

705007018

Unavailable

470

Heat Shield Rocker Panel

705007053

$4.00

478

UPPER BELT GUARD - Call your local BRP dealership

705007213

$45.00

479

STEEL BLACK LH UPPER SIDE PANEL - Call your local BRP dealership | Model-Steel Black Met. Australie

705007743

Unavailable

479

STEEL BLACK LH UPPER SIDE PANEL - Call your local BRP dealership | Model-Steel Black Met. Australie

705007743

Unavailable

479

STEEL BLACK LH UPPER SIDE PANEL - Call your local BRP dealership | Model-Steel Black Met. Australie

705007743

Unavailable

479

VEGAS WHITE LH UPPER SIDE PANEL - Call your local BRP dealership | Model-Vegas White Pearl

705007737

Unavailable

480

NEEDS DESCRIPTION | Model-Steel Black Met. Australie

705007265

$89.00

480

NEEDS DESCRIPTION | Model-Steel Black Met. Australie

705007265

$89.00

480

NEEDS DESCRIPTION | Model-Steel Black Met. Australie

705007265

$89.00

480

NEEDS DESCRIPTION | Model-Steel Black Met. Australie

705007265

$89.00

481

LH UPPER SIDE PANEL - Call your local BRP dealership | Model-North America, Europe, Australie, Japon

705007329

Unavailable

482

RH UPPER SIDE PANEL - Call your local BRP dealership | Model-North America, Europe, Australie, Japon

705007330

Unavailable

486

MOULDING - Call your local BRP dealership | Model-RS

705007496

Unavailable

489

Center Panel This part replaces 705007646.

705007642

$145.00

489

VEGAS WHITE CENTER PANNEL - Call your local BRP dealership | Model-RS STD Vegas White Pearl

705007863

Unavailable

491

Not Available As Spare Parts

XXX

Unavailable

492

Not Available As Spare Parts

XXX

Unavailable

520

Rubber Stopper

708000759

$3.61

538

License Plate Light

710003349

$71.00

539

REVERSE LIGHT - Call your local BRP dealership | Model-Australie

710003319

Unavailable

540

Not Available As Spare Part - Friction Washer

Unavailable
