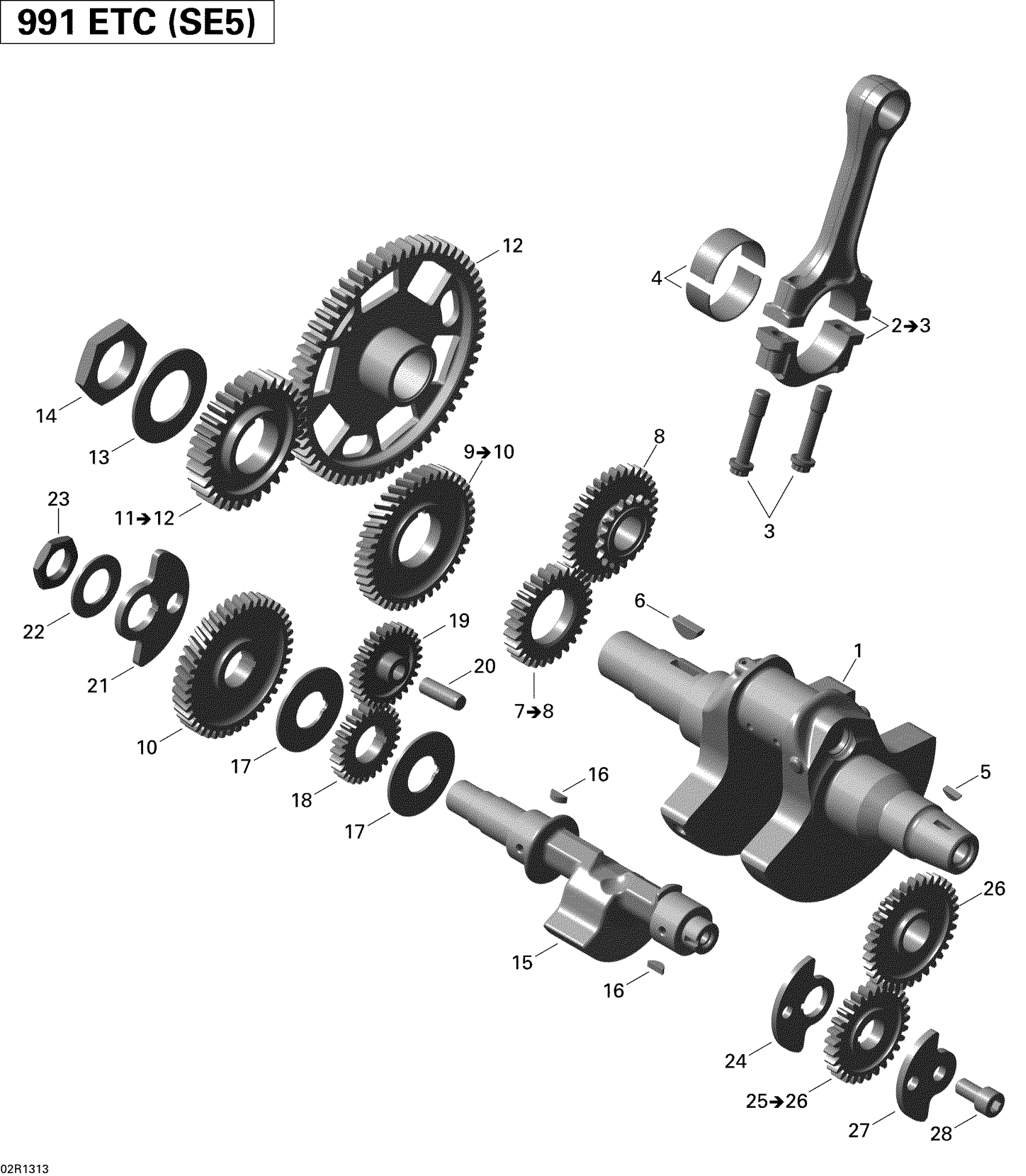

Can-Am Spyder RS_RSS SE5, 2013 Crankshaft Diagram

#

Description
Price

1

CRANKSHAFT - Call your local BRP dealership

420890567

$1,260.00

2

CONNECTING ROD ASS'Y - Call your local BRP dealership | Includes 2 to 3

420217489

Unavailable

3

Screw M10 X 1

420640402

$18.00

4

Plain Bearing

420233726

$16.89

5

Woodruff Key 4 X 5

420246570

$3.29

6

WOODRUFF KEY 6 X 9 - Call your local BRP dealership

420946015

$10.52

7

Camshaft Drive Gear Ass'Y | Includes 7 to 8

420295762

$105.00

8

Not Available As Spare Part - Friction Washer

Unavailable

9

GEAR BALANCE ASS'Y - Call your local BRP dealership | Includes 9 to 10

420295772

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Primary Drive Gear Ass'Y | Includes 11 to 12

420684817

$551.00

12

Not Available As Spare Part - Friction Washer

Unavailable

13

SPRING WASHER - Call your local BRP dealership

420245840

$15.00

14

NUT - Call your local BRP dealership

420242940

$14.00

15

Bottom Balancer

420220374

$254.00

16

Woodruff Key 4 X 5

420246570

$3.29

17

THRUST WASHER - Call your local BRP dealership

420627200

$10.00

18

Water Pump Gear

420634611

$36.00

19

INTERMEDIATE GEAR WATER PUMP - Call your local BRP dealership

420634500

Unavailable

20

PIN, M6 X 50 - Call your local BRP dealership

420929930

Unavailable

21

MASS BALANCING - Call your local BRP dealership

420219350

$11.00

22

Spring Washer

420245860

$7.23

23

Nut

420242879

$6.26

24

MASS BALANCING - Call your local BRP dealership

420219360

Unavailable

25

Distribution Drive Gear Ass'Y | Includes 25 to 26

420295767

$105.00

26

Not Available As Spare Part - Friction Washer

Unavailable

27

MASS BALANCING - Call your local BRP dealership

420219365

Unavailable

28

ALLEN SCREW, M10 X 20 - Call your local BRP dealership

420440265

Unavailable
