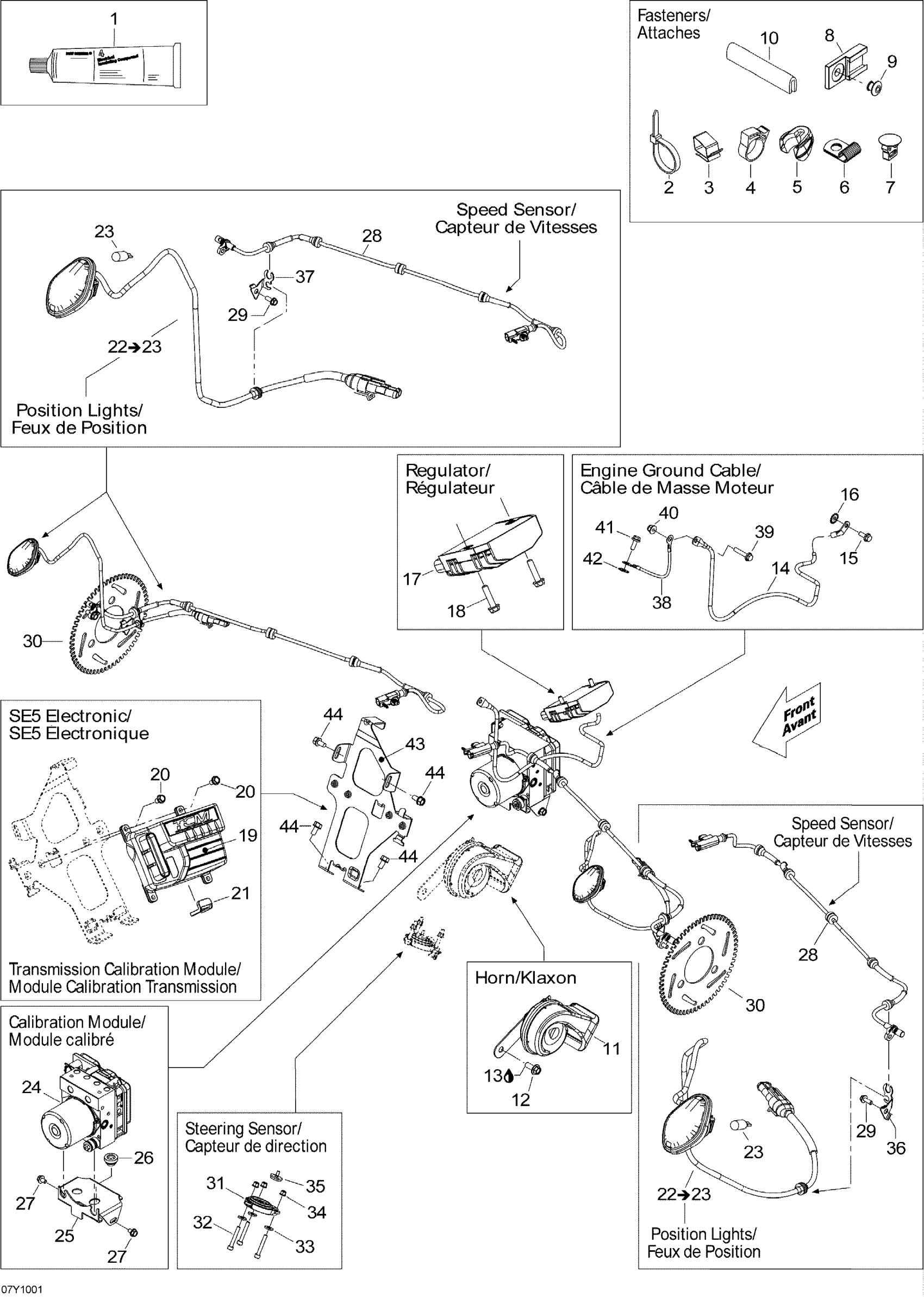

Can-Am Spyder RS Roadster SM5, Late Production 2010 Electrical Accessories, Front SM5 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

2

Tie-Rap 180 mm

414115200

$0.09

2

Tie-Rap 173 mm

293750009

$0.85

2

Tie Wrap 368 mm

293750008

$0.85

3

Clip

414227300

$1.45

4

Clamp

293650082

$3.33

5

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

6

Bracket

415052400

$4.12

7

Tie Rap Mount

293750044

$2.00

8

Clip

270000141

$8.33

9

Pop Rivet 3/16"

390402400

$0.25

10

Trim 1000Mm Long

219704354

$14.74

11

HORN - Call your local BRP dealership

710004229

$29.00

12

Hex. Flange Screw M8 X 20

207682044

$0.92

13

Loctite 243, 10 ml

293800060

$20.77

14

ENGINE GROUND CABLE - Call your local BRP dealership

710000177

$13.82

15

Hex. Flange Screw M6 X 16

207661644

$0.61

16

Lock Washer Serrated M6

250200041

$0.92

17

REGULATOR KIT - Call your local BRP dealership

219800252

Unavailable

18

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Position Light | Includes 22 to 23

710001478

$59.00

23

BULB 5W. - Call your local BRP dealership

410922994

Unavailable

24

Calibration Module

219800098

$1,530.00

25

MODULE BRACKET - Call your local BRP dealership

705600602

Unavailable

26

STOPPER - Call your local BRP dealership

710000938

Unavailable

27

Hex. Flange Screw M6 X 12

210261250

$1.56

28

SPEED SENSOR - Call your local BRP dealership | Includes 25a to 25b

706200495

Unavailable

29

Hex. Flange Screw M6 X 16

210261650

$1.22

30

TONE WHEEL - Call your local BRP dealership

705600436

Unavailable

31

Steering Position Sensor

709400363

$610.00

32

Socket Head Screw M5 X 35

205053588

$1.56

33

Flat Washer M5

234051410

$0.44

34

Hex. Flange Elastic Nut M5

233251414

$1.66

35

ENCODER MAGNET - Call your local BRP dealership

709400362

Unavailable

36

LH WIRE SUPPORT - Call your local BRP dealership

710002019

Unavailable

37

RH WIRE SUPPORT - Call your local BRP dealership

710002018

Unavailable

38

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

39

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

41

Hex. Flange Screw M6 X 16

207661644

$0.61

42

Lock Washer Serrated M6

250200041

$0.92

43

MODULE SUPPORT - Call your local BRP dealership

705202002

Unavailable

44

Hex. Flange Screw M6 X 12

210261250

$1.56
