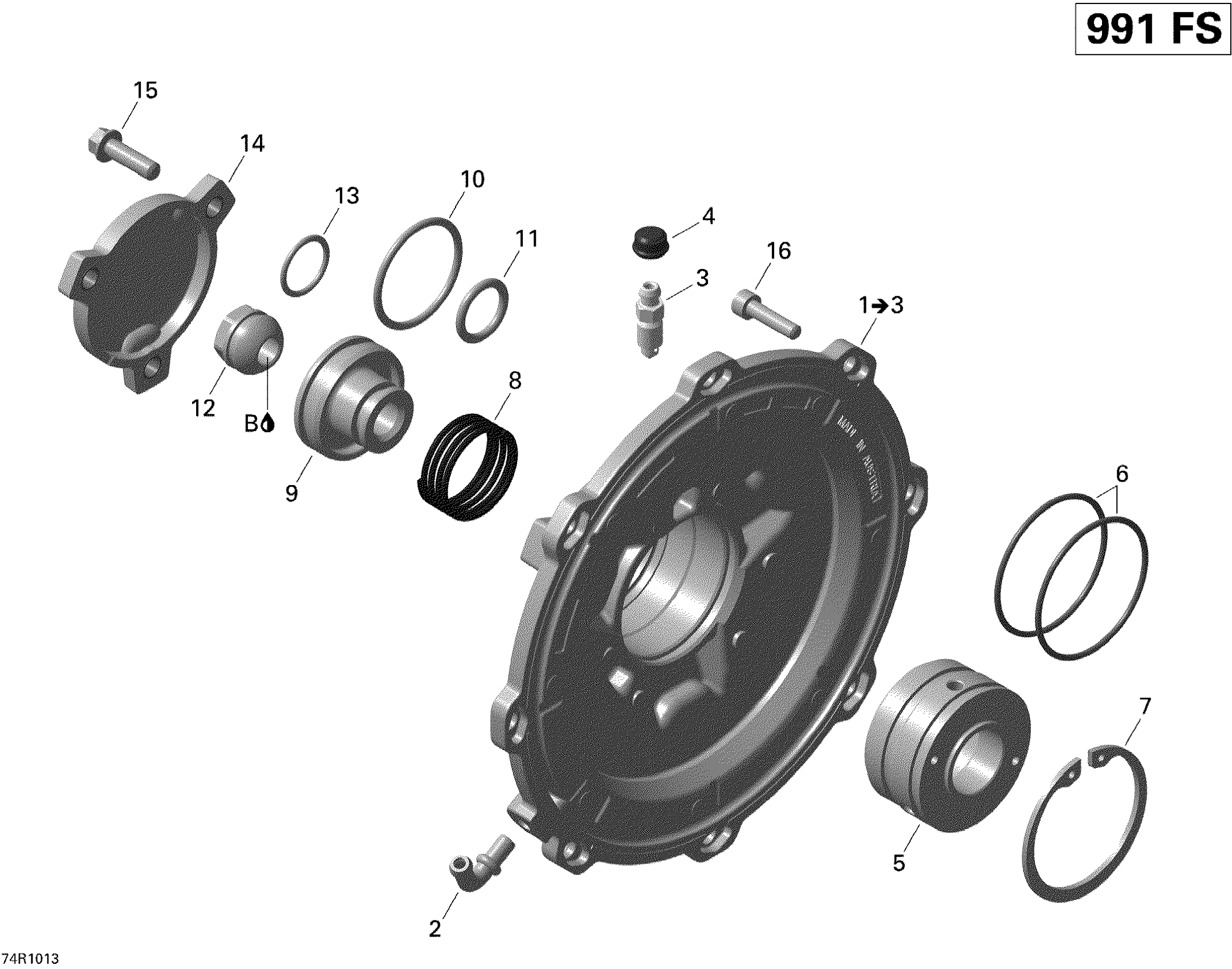

Can-Am Spyder RS Roadster SM5, Late Production 2010 Diaphragm Cover Diagram

#

Description
Price

1

Diaphragm Cover | Includes 1 to 3

420611366

$89.00

2

Not Available As Spare Part - Friction Washer

Unavailable

3

VALVE - Call your local BRP dealership

420656470

Unavailable

4

Rubber Cap

420460575

$5.00

5

Antifriction Bushing

420233190

$64.00

6

O-Ring

420950966

$6.00

7

Retaining Ring

420245190

$12.00

8

Compression Spring

420238740

$11.00

9

Piston

420656122

$26.00

10

O-Ring

420431441

$6.00

11

O-Ring

420431301

$6.00

12

Nut M10 X 1

420242641

$18.00

13

O-Ring

420631890

$4.24

14

COVER - Call your local BRP dealership

420611710

$17.00

15

Torx Flange Screw M6 X 20

420440207

$2.54

16

Socket Head Screw M5 X 20

420441341

$3.95

B

Loctite 243, 10 ml

293800060

$20.77
