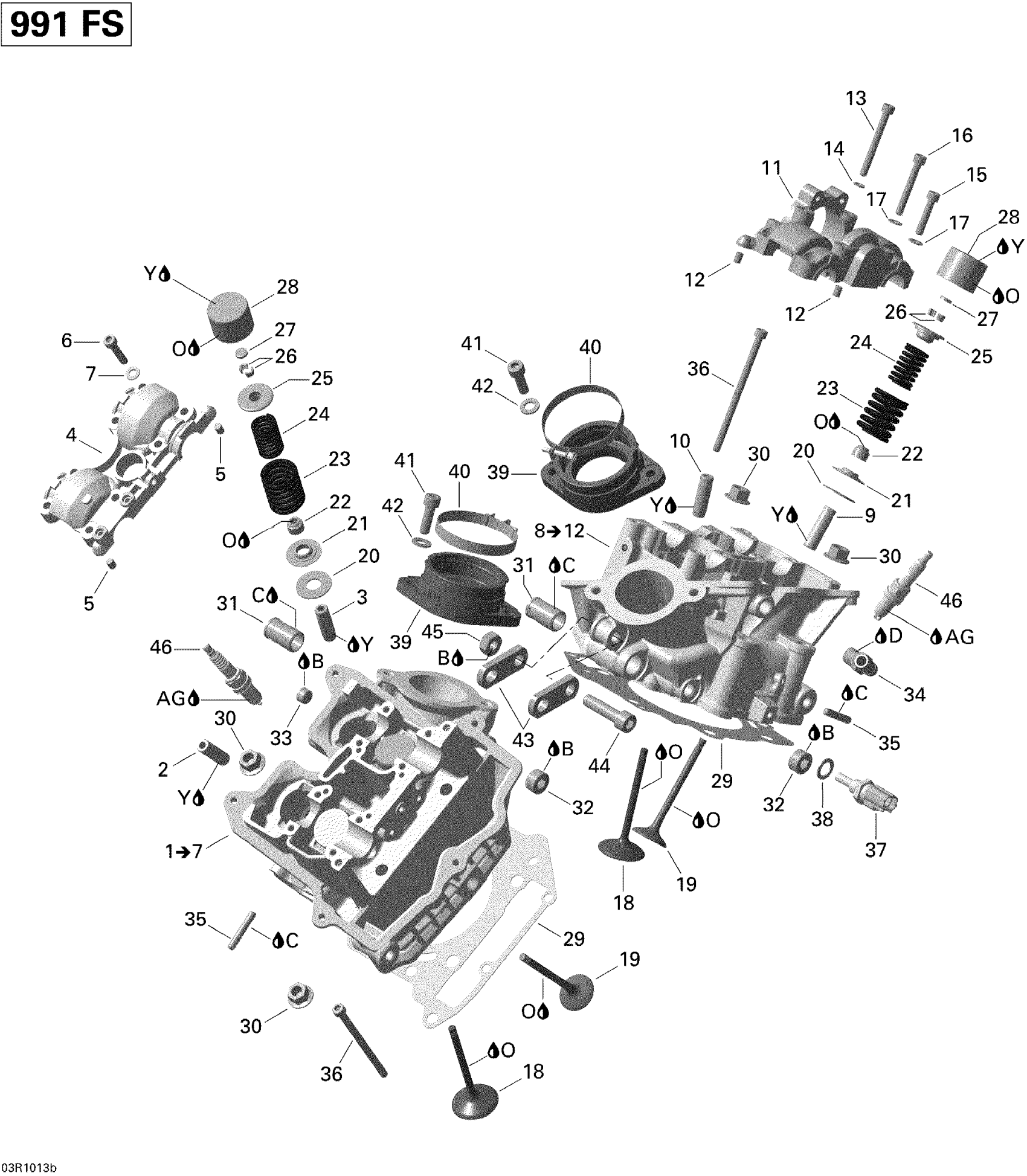

Can-Am Spyder RS Roadster SM5, Late Production 2010 Cylinder Head Diagram

#

Description
Price

1

Front Cylinder Head Ass'y | Inludes 1 to 5

420413034

$872.99

2

VALVE GUIDE, EXHAUST - Call your local BRP dealership

420253926

Unavailable

3

VALVE GUIDE, INTAKE - Call your local BRP dealership

420253921

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Center Pin

420232210

$7.64

6

Socket Head Screw M6 X 30

205063044

$1.42

7

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

8

REAR CYLINDER HEAD ASS'Y - Call your local BRP dealership | Inludes 8 to 12

420413032

Unavailable

9

VALVE GUIDE, EXHAUST - Call your local BRP dealership

420253926

Unavailable

10

VALVE GUIDE, INTAKE - Call your local BRP dealership

420253921

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Center Pin

420232210

$7.64

13

Allen Screw M6 X 55

420240332

$4.19

14

SHIM - Call your local BRP dealership

420927863

$1.39

15

Socket Head Screw M6 X 30

205063044

$1.42

16

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

205064544

Unavailable

17

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

18

Exhaust Valve 31 mm

420254027

$73.42

19

Intake Valve, 38 mm

420254295

$35.04

20

THRUST WASHER - Call your local BRP dealership

420227980

Unavailable

21

Valve Spring Shim

420253967

$10.30

22

Seal

420230510

$11.77

23

VALVE SPRING, OUTER - Call your local BRP dealership

420238211

Unavailable

24

Valve Spring, Inner

420238201

$18.63

25

Valve Spring Retainer

420253957

$12.34

26

Valve Cotter

420253645

$6.11

27

SHIM 2.3 - Call your local BRP dealership

420253974

Unavailable

27

SHIM 2.325 - Call your local BRP dealership

420254030

Unavailable

27

Shim 2.35

420253975

$12.15

27

SHIM 2.375 - Call your local BRP dealership

420254031

Unavailable

27

SHIM 2.4 - Call your local BRP dealership

420253976

$10.82

27

SHIM 2.425 - Call your local BRP dealership

420254032

Unavailable

27

SHIM 2.45 - Call your local BRP dealership

420253977

$10.82

27

SHIM 2.475 - Call your local BRP dealership

420254033

Unavailable

27

SHIM 2.5 - Call your local BRP dealership

420253978

$10.82

27

SHIM 2.525 - Call your local BRP dealership

420254034

Unavailable

27

SHIM 2.55 - Call your local BRP dealership

420253979

Unavailable

27

SHIM 2.575 - Call your local BRP dealership

420254035

Unavailable

27

SHIM 2.6 - Call your local BRP dealership

420253980

$10.82

27

Shim 2.625

420254036

$7.09

27

SHIM 2.65 - Call your local BRP dealership

420253981

Unavailable

27

Shim 2.675

420254037

$7.09

27

SHIM 2.7 - Call your local BRP dealership

420253982

$10.82

27

SHIM 2.725 - Call your local BRP dealership

420254038

Unavailable

27

SHIM 2.75 - Call your local BRP dealership

420253983

Unavailable

27

SHIM 2.775 - Call your local BRP dealership

420254039

Unavailable

27

SHIM 2.8 - Call your local BRP dealership

420253984

Unavailable

27

SHIM 2.825 - Call your local BRP dealership

420254040

Unavailable

27

SHIM 2.85 - Call your local BRP dealership

420253985

Unavailable

27

SHIM 2.875 - Call your local BRP dealership

420254041

Unavailable

27

SHIM 2.9 - Call your local BRP dealership

420253986

Unavailable

27

SHIM 2.925 - Call your local BRP dealership

420254042

Unavailable

27

SHIM 2.95 - Call your local BRP dealership

420253987

Unavailable

27

SHIM 2.975 - Call your local BRP dealership

420254043

Unavailable

27

SHIM 3.0 - Call your local BRP dealership

420253988

Unavailable

27

SHIM 3.025 - Call your local BRP dealership

420254044

Unavailable

27

SHIM 3.05 - Call your local BRP dealership

420253989

Unavailable

28

Tappet Valve

420253990

$52.21

29

Cylinder Head Gasket

420650210

$23.10

30

Hex. Flange Nut M10

233101414

$4.10

31

Elbow Fitting

420224090

$17.13

32

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.01

33

Plug Screw M12x1,5

420840658

$7.09

34

Angular Tube

420922242

$12.29

35

Stud, M6 X 19/16

420440131

$2.85

36

Socket Head Screw M6 X 100 This part replaces 420241601.

420241602

Unavailable

37

Temperature Sensor

420274040

$51.46

38

Copper Washer

420250640

$0.81

39

Intake Flange

420267151

$46.49

40

Hose Clamp

420251830

$13.10

41

Socket Head Screw M8 X 25

205082544

$0.92

42

Flat Washer 8.4 mm

420250315

$1.06

43

SUPPORT BRACKET - Call your local BRP dealership

420251100

$10.99

44

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

420640581

Unavailable

45

Hex. Nut M10 X 1.5

232006414

$1.11

46

Spark Plug NGK DCPR9E

278002297

$5.66

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

D

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.10

AG

Heat-Sink Paste P12, 90 ml

420897186

$31.82
