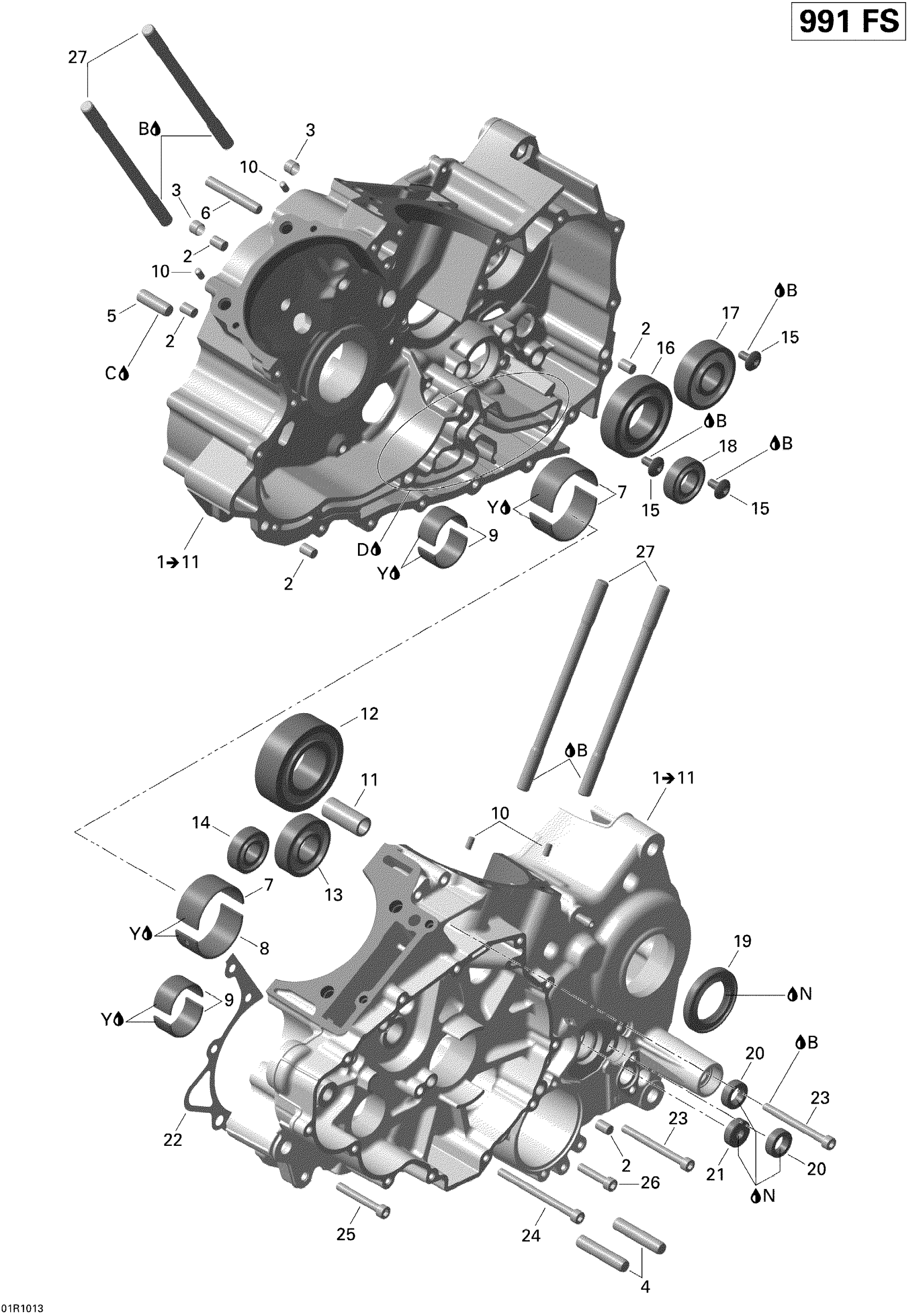

Can-Am Spyder RS Roadster SM5, Late Production 2010 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 11

420684711

$1,277.00

2

Center Pin 8 X 12

420632010

$3.07

3

DOWEL TUBE - Call your local BRP dealership

420929501

Unavailable

4

Location Pin 10 M6x50

420229302

$3.11

5

PIN, M6 X 50 - Call your local BRP dealership

420929930

Unavailable

6

PIN, M6 X 55 - Call your local BRP dealership

420229385

Unavailable

7

Plain Bearing, Red

420233746

$28.00

7

Bushing_Half - Call your local BRP dealership

420233745

$22.28

7

Plain Bearing,Yellow

420233748

$28.00

8

Plain Bearing, Red

420233741

$28.00

8

Bushing_Half - Call your local BRP dealership

420233740

$22.28

8

Plain Bearing, Yellow

420233743

$28.00

9

Plain Bearing, Red

420233820

$25.00

9

Plain Bearing, Blue

420233711

$25.00

9

Bushing_Half - Call your local BRP dealership

420233822

Unavailable

10

Drive Pin 5 X 10

420929650

$1.34

11

BOLT - Call your local BRP dealership

420229450

Unavailable

12

Ball Bearing

420832315

$270.00

13

Ball Bearing

420932677

$24.00

14

Ball Bearing

420932290

$24.00

15

Hex Flat Head Screw M6 X 13 T30

420241537

$3.11

16

BALL BEARING - Call your local BRP dealership

420932585

Unavailable

17

BALL BEARING - Call your local BRP dealership

420832144

Unavailable

18

Ball Bearing

420232625

$21.00

19

Oil Seal

420831185

$17.66

20

Oil Seal

420250455

$15.22

21

Oil Seal

420631910

$12.00

22

Gasket

420430630

$46.00

23

Allen Screw This part replaces 420241261.

420241263

$5.00

24

ALLEN SCREW, M6 X 80 - Call your local BRP dealership

420241503

$3.46

25

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

205064544

Unavailable

26

Socket Head Screw M6 X 30

205063044

$1.42

27

Stud

420241580

$16.89

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

D

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

N

Dow Corning 111, 150 g

413707000

$57.82

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.82
