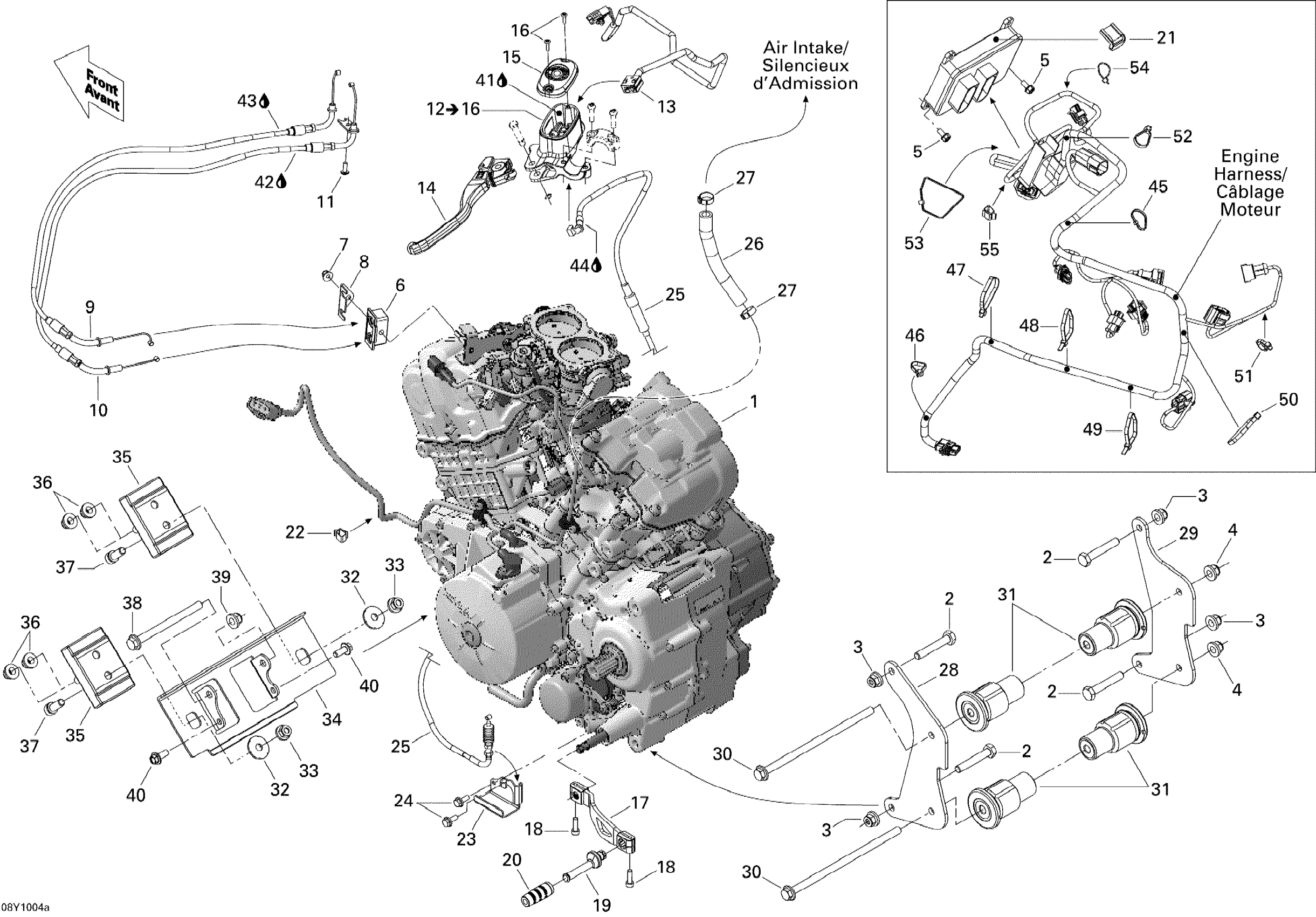

Can-Am Spyder RS Roadster SM5, 2010 Engine 1_SM5 Manual Diagram

#

Description
Price

1

ENGINE 991 - Call your local BRP dealership | Long Block 421000708

707000963

Unavailable

2

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

3

Hex. Flange Elastic Nut M10

233201436

$1.74

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Hex. Flange Screw M6 X 12

210261250

$1.56

6

INDEXING BLOCK - Call your local BRP dealership

707000609

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

FIXATION PLATE - Call your local BRP dealership

707000610

Unavailable

9

THROTTLE CABLE - Call your local BRP dealership

707001208

Unavailable

10

THROTTLE CABLE - Call your local BRP dealership

707001209

Unavailable

11

Torx Screw M5 X 14

250000742

$1.20

12

CLUTCH LEVER ASS'Y - Call your local BRP dealership | Includes 12 to 16

707000849

Unavailable

13

SWITCH - Call your local BRP dealership

710002086

$94.00

14

CLUTCH LEVER - Call your local BRP dealership

707000623

Unavailable

15

COVER RESERVOIR - Call your local BRP dealership

707000616

Unavailable

16

Screw 8-32

250000342

$3.00

17

LEVER - Call your local BRP dealership

707000386

Unavailable

18

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

19

Adjustment Rod

707000455

$30.00

20

End Clutch Pedal

707000456

$9.00

21

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

22

Clip

414227300

$1.45

23

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

24

Hex. Flange Screw M6 X 16

207661644

$0.61

25

CABLE REVERSE - Call your local BRP dealership

707000811

Unavailable

26

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

27

Oetiker Clamp

293650186

$3.33

28

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

29

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

30

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

31

RUBBER MOUNT - Call your local BRP dealership

707000516

Unavailable

32

Lock Washer

512056700

$3.11

33

Hex. Flange Elastic Nut M10

233201436

$1.74

34

Front Engine Support

707000452

Unavailable

35

RUBBER MOUNT - Call your local BRP dealership

707000441

Unavailable

36

Hex. Flange Elastic Nut M10

233201436

$1.74

37

Socket Head Screw M10 X 25

205002544

$1.25

38

Hex. Flange Screw M10 X 125

230602546

$6.08

39

Hex. Flange Elastic Nut M10

233201436

$1.74

40

Hex. Flange Screw M8 X 20

207682044

$0.92

41

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

42

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

43

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

44

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

45

Tie Wrap 142 mm

293750002

$0.88

46

Tie-Rap 180 mm

414115200

$0.09

47

Tie-Rap 180 mm

414115200

$0.09

48

Tie-Rap 180 mm

414115200

$0.09

49

Tie-Rap 180 mm

414115200

$0.09

50

Tie-Rap 180 mm

414115200

$0.09

51

Tie-Rap 180 mm

414115200

$0.09

52

Tie-Rap 180 mm

414115200

$0.09

53

Tie Wrap 368 mm

293750008

$0.85

54

Tie-Rap 180 mm

414115200

$0.09

55

Clip

414227300

$1.45
