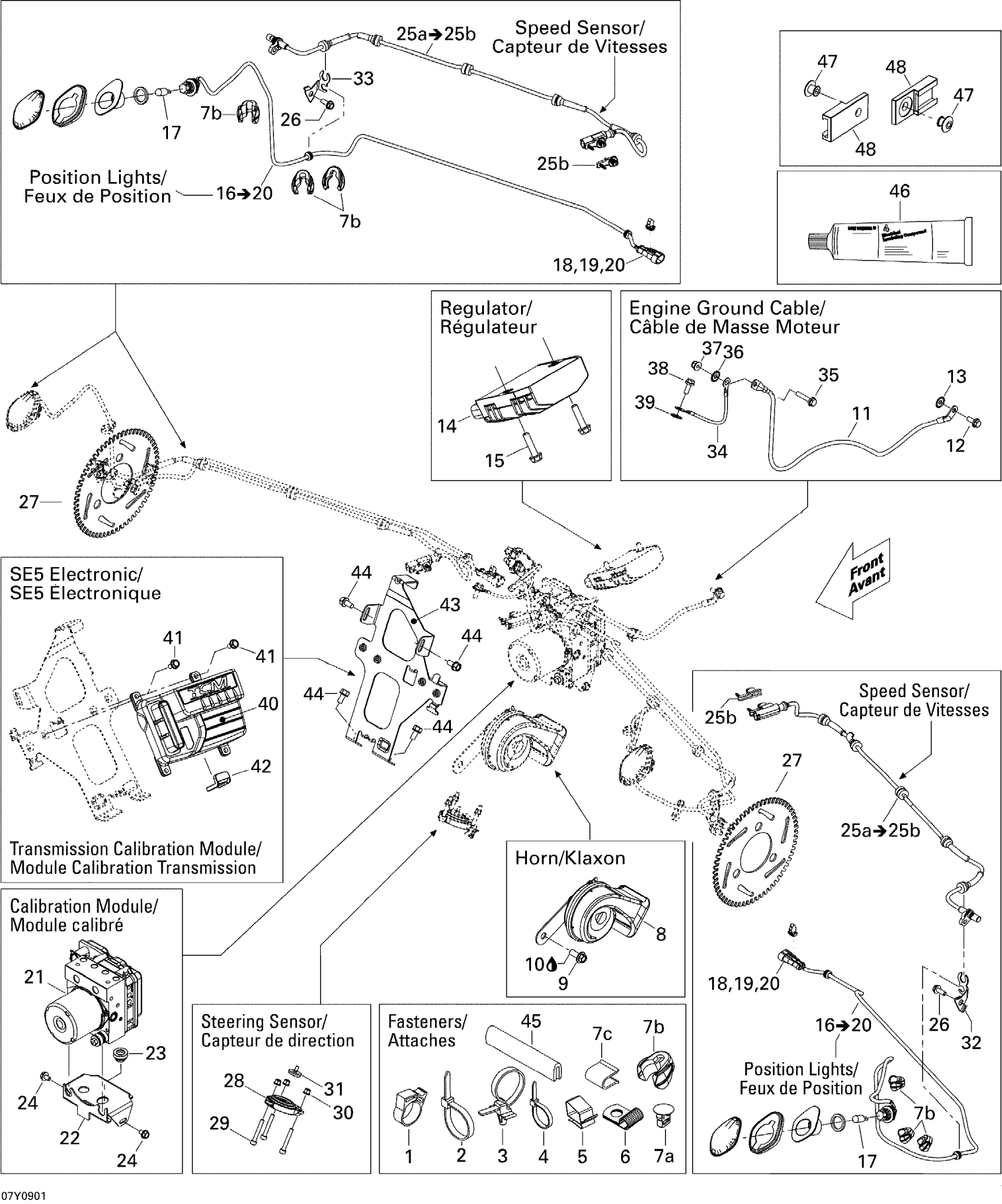

Can-Am Spyder GS Roadster with SE5 transmission, 2009 Electrical Accessories, Front SE5 Electronic Diagram

#

Description
Price

1

Clamp

293650082

$3.33

2

Tie Wrap 368 mm

293750008

$0.85

3

Tie-Rap 173 mm

293750009

$0.85

4

Tie-Rap 180 mm

414115200

$0.09

5

Clip

414227300

$1.45

6

Bracket

415052400

$4.12

7a

Tie Rap Mount

293750044

$2.00

7b

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

7c

Not Available As Spare Parts

XXX

Unavailable

8

HORN - Call your local BRP dealership

710004229

$29.00

9

Hex. Flange Screw M8 X 20

207682044

$0.92

10

Loctite 243, 10 ml

293800060

$20.77

11

ENGINE GROUND CABLE - Call your local BRP dealership

710000177

$13.82

12

Hex. Flange Screw M6 X 16

207661644

$0.61

13

Lock Washer Serrated M6

250200041

$0.92

14

REGULATOR KIT - Call your local BRP dealership

219800252

Unavailable

15

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

16

POSITION LIGHTS - Call your local BRP dealership | Includes 16 to 20

710001058

Unavailable

17

BULB 5W. - Call your local BRP dealership

410922994

Unavailable

18

Male Terminal Housing, 2 Circuits

409209400

$14.97

19

Male Terminal | Europe Models

409012900

$3.22

20

Wire Seal

278001013

$2.72

21

CALIBRATION MODULE 0265236033 - Call your local BRP dealership

705600626

$2,050.00

22

MODULE BRACKET - Call your local BRP dealership

705600602

Unavailable

23

STOPPER - Call your local BRP dealership

710000938

Unavailable

24

Hex. Flange Screw M6 X 12

210261250

$1.56

25a

SPEED SENSOR - Call your local BRP dealership | Includes 25a to 25b

706200495

Unavailable

25b

Speed Sensor Clip

219800059

$10.00

26

Hex. Flange Screw M6 X 16

210261650

$1.22

27

TONE WHEEL - Call your local BRP dealership

705600436

Unavailable

28

Steering Position Sensor

709400363

$610.00

29

Socket Head Screw M5 X 35

205053588

$1.56

30

Hex. Flange Elastic Nut M5

233251414

$1.66

31

ENCODER MAGNET - Call your local BRP dealership

709400362

Unavailable

32

LH WIRE SUPPORT - Call your local BRP dealership

710002019

Unavailable

33

RH WIRE SUPPORT - Call your local BRP dealership

710002018

Unavailable

34

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

35

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

36

Lock Washer Serrated M6

250200041

$0.92

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

38

Hex. Flange Screw M6 X 16

207661644

$0.61

39

Lock Washer Serrated M6

250200041

$0.92

40

TCM MODULE - Call your local BRP dealership | Semi-Automatic

710001946

Unavailable

41

Hex. Flange Screw M6 X 12

210261250

$1.56

42

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

43

MODULE SUPPORT - Call your local BRP dealership

705202002

Unavailable

44

Hex. Flange Screw M6 X 12

210261250

$1.56

45

Trim 1000Mm Long

219704354

$14.74

46

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

47

Pop Rivet 3/16"

390402400

$0.25

48

Clip

270000141

$8.33
