Description

Price

1

Crankcase Ass'y | Includes 1 to 13

420685726

Unavailable

2

Center Pin 8 X 12

420632010

$3.07

3

Oil Spraying Jet

420656972

$25.00

4

Plug Screw M12x1,5

420840658

$7.31

5

Plug Screw M20 X 1.5

420641317

$10.58

6

Plug Screw M18 X 1.5

420441050

$13.00

7

Plug Screw M10 X 1

420641323

$11.48

8

Plain Bearing

420933858

$27.00

9

Plain Bearing

420233848

$28.00

10

Plain Bearing

420233846

$28.00

11

SLEEVE - Call your local BRP dealership

420647280

Unavailable

12

Oil Seal

420230150

$2.94

13

Bleeder Screw M10 X 1

420441630

$14.85

14

Half-Ring

420933475

$9.37

15

Torx Flange Screw M9 X 113

420940945

$10.41

16

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420441082

$4.14

17

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

$7.80

18

Torx Flange Screw M6 X 35

420440274

$0.83

19

Gasket

420250610

$16.00

20

Oil Pan

420611742

$169.00

21

Plug Screw M8 x 1

420941614

$7.37

22

Torx Flange Screw M6 X 25

420440234

$3.00

23

Oil Seal

420230150

$2.94

24

Plug Screw M10 X 1

420641733

$10.58

25

Noise Sensor

420664031

$50.67

26

Torx Flange Screw M8 X 35

420641188

$6.11

27

Torx Flange Screw M6 X 35

420440274

$0.83

28

Engine, 1330 ACE (SM6)

351403116

Unavailable

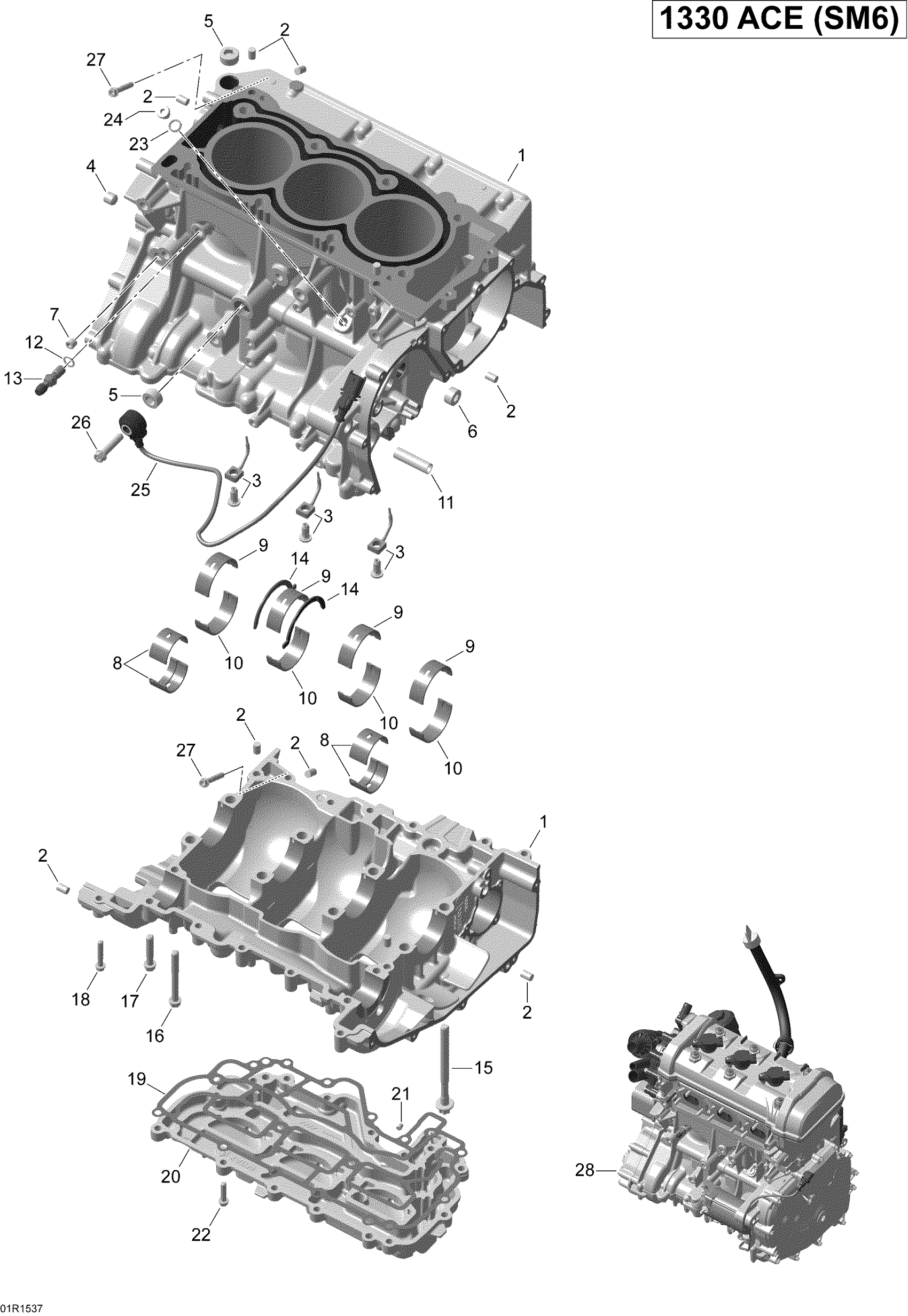

Can-Am Spyder F3 SM6, 2015 Crankcase _01R1537 Diagram

Crankcase Ass'y | Includes 1 to 13

SLEEVE - Call your local BRP dealership

Engine, 1330 ACE (SM6)
