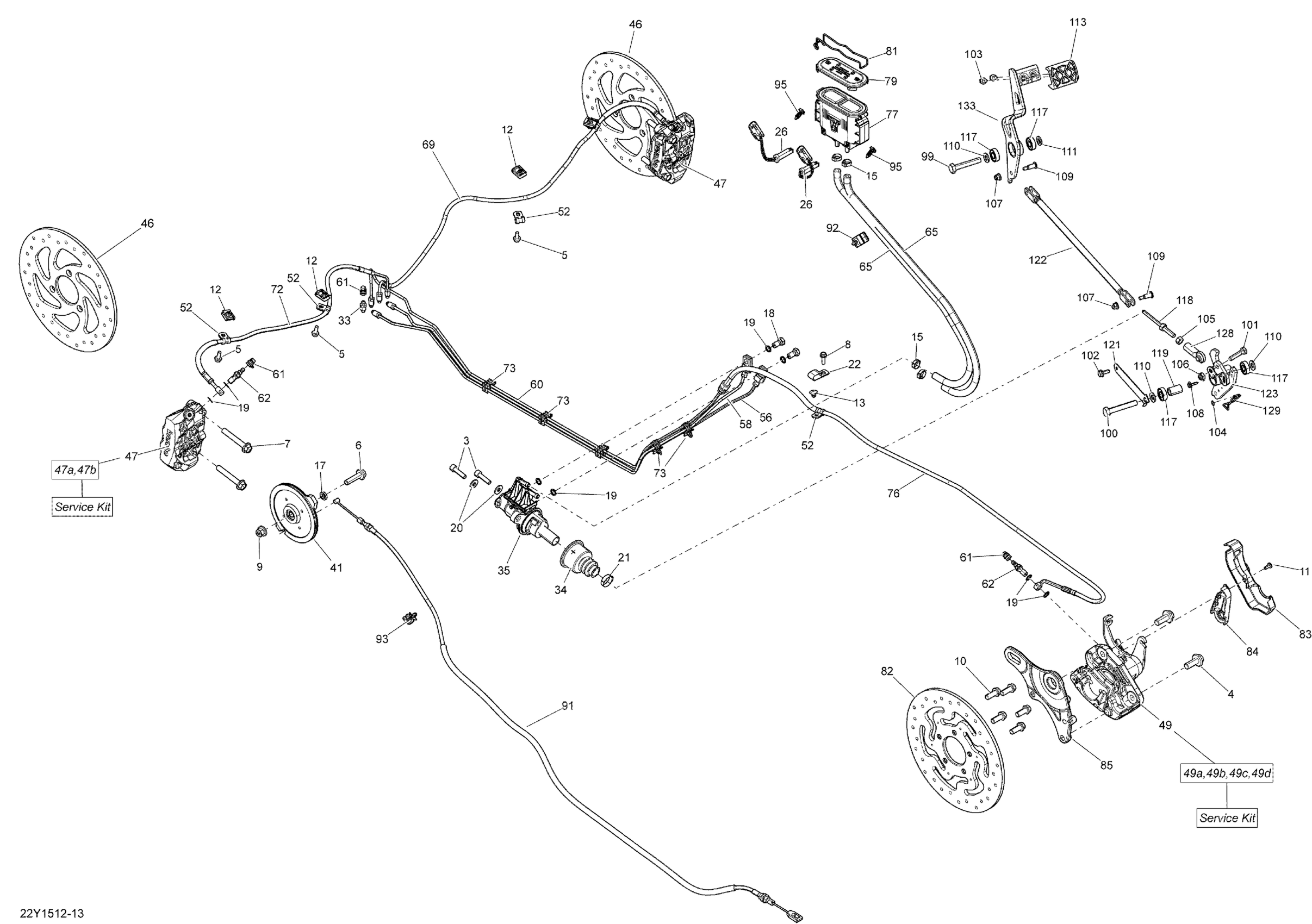

Can-Am Spyder F3-S SE6, 2015 Hydraulic Brake _22Y1513 Diagram

Screw-Socket Cap S.Grip M8 X 30

250001117

$2.00

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.00

Hex Flange Screw M10 X 65

207506556

$7.00

Hexagonal Head Screw

210262050

$1.74

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

Hex. Flange Screw M10 X 25

250001054

$12.48

Torx Screw 24 X 0.5

250000821

$2.00

Panel Nut M6 X 1.0

250100208

$1.07

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

Hexagonal Head Screw

210262050

$1.74

Crimp Clamp, 15.3-706R

293650047

$2.64

Bushing

293900087

$7.60

Banjo Bolt

414920500

$8.49

Washer

414920600

$1.52

Washer

506151245

$0.91

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

Open Clamp

515175507

$1.47

Oil Level Sensor

705601073

$50.74

Bleeder Screw

705600502

$11.06

Bellow

705600716

$12.00

Tandem Cylinder Master

705600722

$370.00

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$87.66

Front Brake Disk

705601631

$154.00

LH Front Caliper | Includes 10 to 10b

705600987

$381.00

RH Front Caliper | Includes 20 to 20b

705600988

$381.00

Brake Pad Kit

219800237

$79.00

Spring/Pin/Clip Kit

219800238

$27.00

Rear Caliper | Includes 90 to 90d

705600989

$498.00

Brake Pad Kit

219800239

$79.00

Spring/Pin/Clip Kit

219800240

$36.00

Rear Cable Support Kit

219800241

$41.00

Rear Dust Cover

219800242

$33.00

Clamp

293650256

$4.36

Tandem Rigid Tube | Includes 400 to 400a

705601157

$32.00

Tandem Rigid Tube | Includes 410 to 410a

705601158

$32.00

Rear Brake Rigid Tube

705601159

$32.00

Bleeder Bolt Cap

705601190

$4.28

Banjo Bolt/ Bleeder

705601201

$17.66

Formed Hose

705601236

$17.00

RH Front Hose | RS

705601254

$61.00

-LH Front Hose

705601471

$61.00

Anchorage Tube

705601987

$5.00

Brake Line

705601501

$75.00

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$110.74

Diaphragm Cover Ass'y

219800350

$17.66

Spindle Lock

705601294

$14.37

Rear Brake Disk

705601632

$245.00

Caliper Trim Cap

705601400

$10.00

Caliper Trim Cap

705601406

$10.00

REAR BRAKE CALIPER SUPPORT - Call your local BRP dealership

705601450

Unavailable

Parking Brake Cable

707001375

$67.00

Hose Support

709000571

$4.60

Harness Support

709000633

$7.00

Connector Holder

710002033

$3.22

Hex. Cap Screw M10 X 60

207006056

$6.18

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

Hexagonal Head Cap Screw M8 X 35

207283544

$3.00

Torx Screw M6 X 16

250000223

$1.74

Hex. Flange Screw M6 X 12

210261250

$1.56

Push Nut

250100178

$0.58

Hex. Nut M8

232081414

$0.60

Hex. Elastic Stop Nut M8

232581414

$0.47

Hex. Flange Elastic Nut M6

233261466

$1.66

Screw M4 X 16

250000725

$2.87

Flange Screw M6 X 26

250000714

$4.00

Washer

503183800

$3.20

Washer

503192496

$0.75

Rubber Pad

705004933

$21.00

Bearing

705600458

$7.03

Piston Rod

705600468

$23.00

Bushing

705600541

$15.00

Locking Tab | Includes 940 to 940b

705601229

$26.00

Brake Linkage Kit (313.7 mm) | Includes 1000 to 1000a2a

219400561

$38.00

Brake Linkage Kit (359.3 mm) | Includes 1000 to 1000a2a

219400563

$38.00

Brake Linkage Kit (410.7 mm) | Includes 1000 to 1000a2a

219400628

$21.00

Brake Linkage Kit (458.3 mm) | Includes 1000 to 1000a2a

219400566

$42.00

Brake Linkage Kit (505.1 mm) | Includes 1000 to 1000a2a

219400571

$42.00

Master Cylinder Rocker | Includes 900 to 900d

705601308

$50.00

MASTER CYLINDER TIE-ROD END - Call your local BRP dealership

705601340

Unavailable

Quick-Attach Bracket

705601350

$13.00

Brake Pedal | Includes 800 to 800a3

705601419

$105.00
