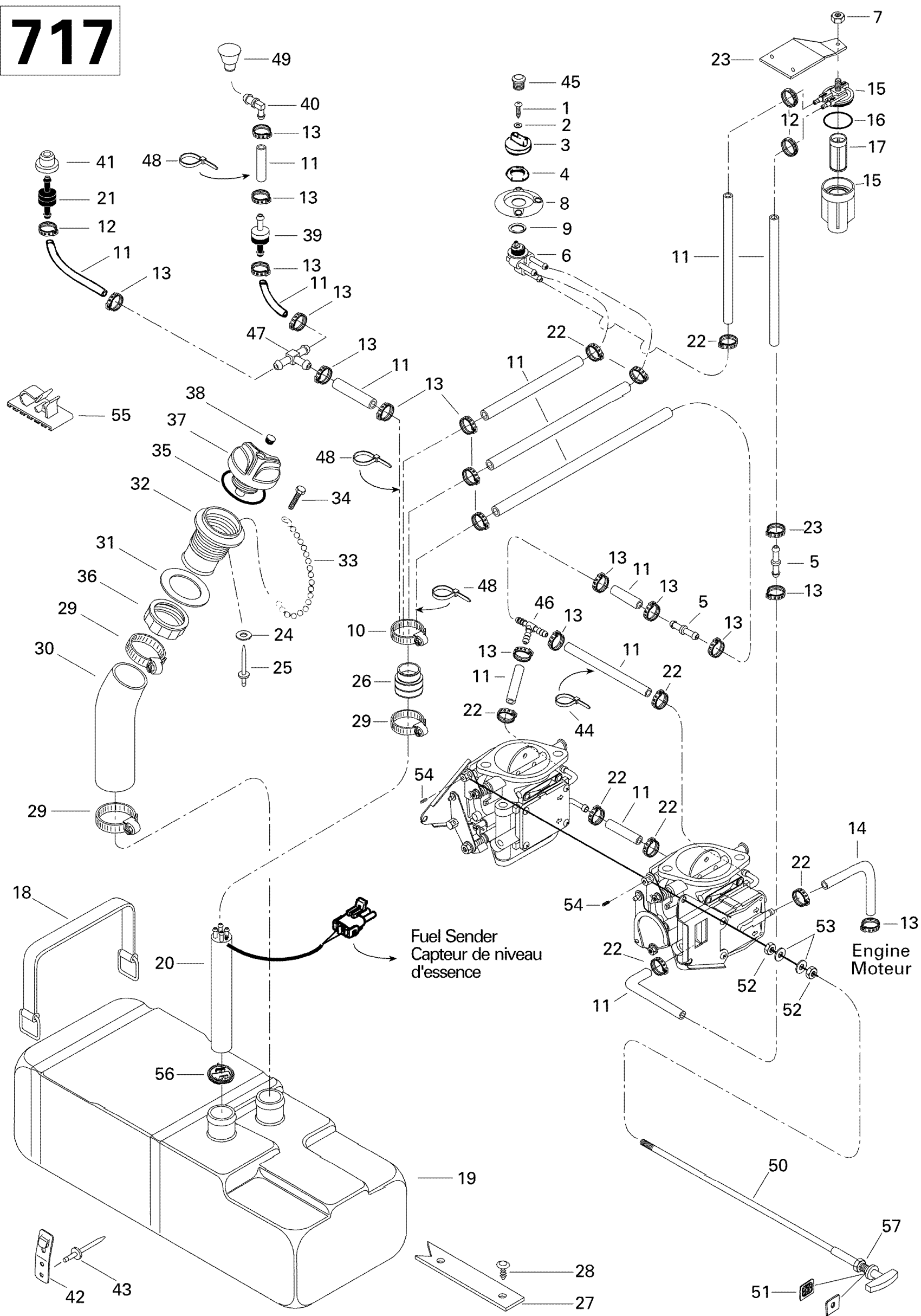

Sea-doo SPX, 5877, 1996 Fuel System SPX Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.46

3

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Straight Fitting

293710039

$6.75

6

Fuel Valve

275500098

$34.42

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

FUEL VALVE PLATE - Call your local BRP dealership

275500264

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650035

$5.80

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Clamp Caillau

293650062

Unavailable

13

CAILLAU CLIC CLAMP - Call your local BRP dealership

293650063

Unavailable

14

IMPULSE HOSE - Call your local BRP dealership

275500282

Unavailable

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$39.52

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$6.84

18

Strap

293850023

Unavailable

19

FUEL TANK - Call your local BRP dealership

275500109

Unavailable

20

BAFFLE (SP 96) - Call your local BRP dealership | Includes 2 - 3.

275500186

Unavailable

21

Pressure Relief Valve (1.5 P.S.I)

275500104

Unavailable

22

Oetiker Clamp

293650042

$1.40

23

Fuel Filter Support

275500113

Unavailable

24

Flat Washer M3, Stainless

234032600

$0.52

25

Pop Rivet 1/8"

390407900

$1.17

26

Tube Adapter

275500111

Unavailable

27

Pad Rubber

293830033

Unavailable

28

Black, Dart

293730006

$0.81

29

Tridon Clamp

293650023

$11.37

30

Filler Hose Neck

275500110

Unavailable

31

Gasket

293250029

$12.06

32

Filler Neck, Fuel

275500231

$12.40

33

Chain

275500168

Unavailable

34

Screw K40 X 10

241140060

$1.25

35

Gasket

293250017

Unavailable

36

Filler Neck Nut, Fuel

211100012

$11.51

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

38

Black, Snap Cap

293000034

$7.48

39

Check Valve This part replaces 275500087.

275501246

Unavailable

40

Male Connector

414580700

$3.38

41

Grommet

293720029

$1.13

42

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.47

44

Tie Wrap 142 mm

293750002

$0.88

45

Black, Cap

275500241

$2.76

46

Y-Fitting

293710059

$8.19

47

T-Fitting | Europe

293710024

$12.82

48

Tie-Rap 180 mm

414115200

$0.09

49

Rubber Washer

293830011

Unavailable

50

Choke Cable

270500257

Unavailable

51

Choke Plate

291000457

Unavailable

52

Hex. Nut M6

232160600

$1.04

53

Stainless Flat Washer M6

234061600

$0.25

54

Allen Screw M4 x 6

210100014

Unavailable

55

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

56

Fuel Filter

275500249

Unavailable

57

Hex. Nut

211100007

Unavailable
