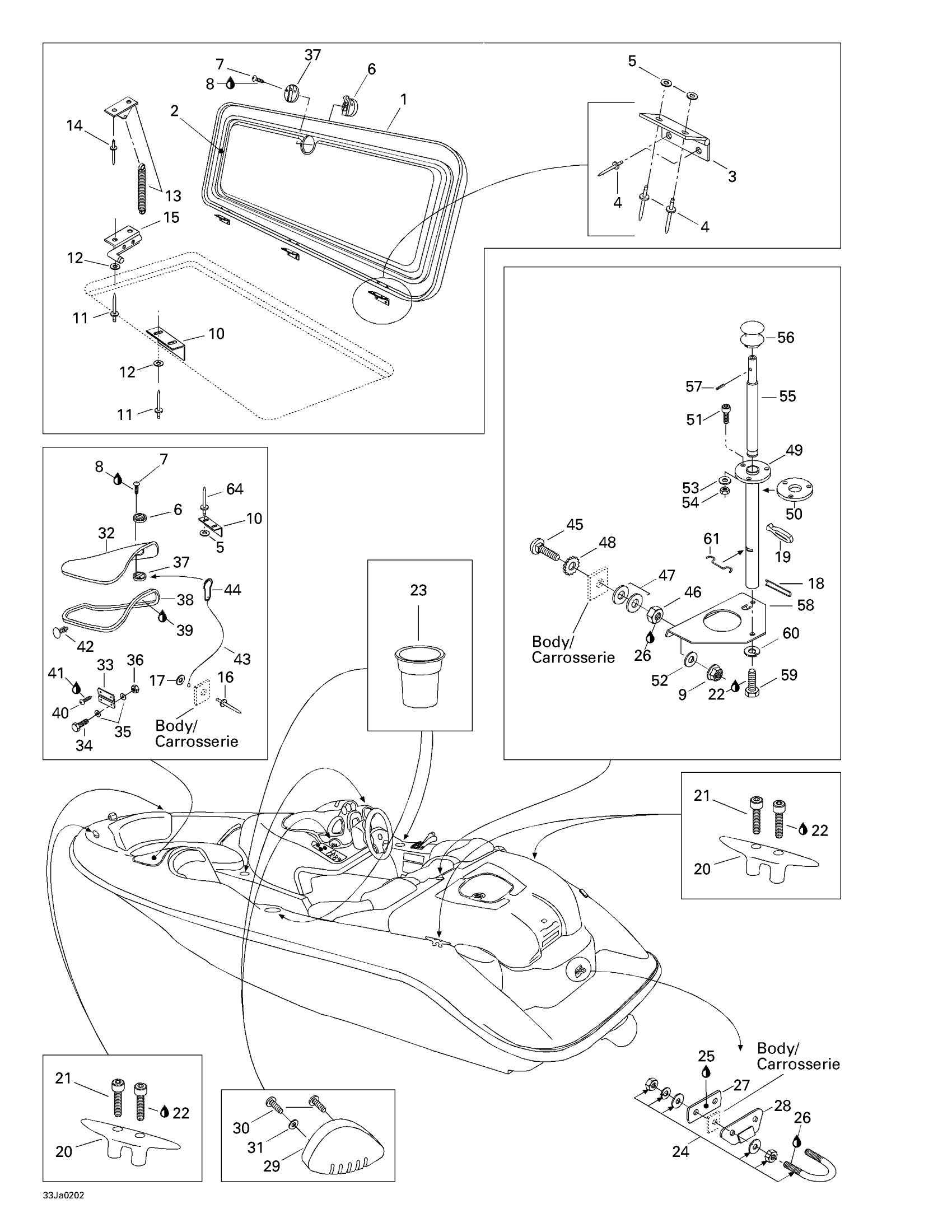

Sea-doo Sportster LT, 5493, 2002 Central Cover And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seal Tray 1000Mm Long

219704368

$12.91

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Pop Rivet 3/16"

293150088

Unavailable

5

Flat Washer M5, Stainless

234051600

Unavailable

6

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

7

SCREW M5 X 16 - Call your local BRP dealership

208651660

$1.69

8

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

9

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

$1.14

10

KEEPER - Call your local BRP dealership

204070060

$9.57

11

Pop Rivet 3/16"

293150088

Unavailable

12

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

13

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

14

RIVET_POP 3/16 - Call your local BRP dealership

293150055

Unavailable

15

Spring Bracket

291000719

Unavailable

16

Pop Rivet 3/16"

293150039

Unavailable

17

Flat Washer 5 mm, Stainless

234052600

Unavailable

18

Was 271000110 Protection Trim

219704353

Unavailable

19

Windshield Latch

570023800

$3.58

20

CLEAT - Call your local BRP dealership

204070100

Unavailable

21

Socket Head Screw M6 x 55

205365560

Unavailable

22

Loctite 243, 10 ml

293800060

Unavailable

23

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

24

U-Bolt

204070418

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

Unavailable

26

Loctite 271, 10 ml

293800005

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Ski Tow Plate, Black

204070054

Unavailable

29

Ventilation Grill, Yellow

291000829

Unavailable

30

Flange Screw K40 X 20

241642060

Unavailable

31

Flat Washer 4 mm, Stainless

234042600

Unavailable

32

Storage Door

204071120

Unavailable

33

Hinge

269700031

Unavailable

34

Socket Head Screw M3 X 10

205431060

Unavailable

35

Flat Washer 3 mm, Stainless Steel

234031600

Unavailable

36

HEX. JAM NUT 3 MM - Call your local BRP dealership

232130600

Unavailable

37

CUP BRACKET - Call your local BRP dealership

204070958

Unavailable

38

BLACK TRIM, METER - Call your local BRP dealership

204070055

Unavailable

39

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

40

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

41

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

42

Dart

293730013

Unavailable

43

RETAINER CABLE - Call your local BRP dealership

204000117

$37.66

44

CABLE CLIP - Call your local BRP dealership

293750000

Unavailable

45

Elevator Bolt

204000130

Unavailable

46

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

47

Stainless, Flat Washer 8 mm

234081600

Unavailable

48

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

51

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

$1.69

52

Flat Washer M6, Stainless

234062600

Unavailable

53

Stainless Flat Washer M6

234061600

Unavailable

54

Hex. Elastic Stop Nut M6

232561600

Unavailable

55

SKI SHAFT - Call your local BRP dealership

204071624

Unavailable

56

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

57

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

58

FIXATION PLATE - Call your local BRP dealership

204071140

Unavailable

59

Hex. Screw M8 X 18

207181860

$1.48

60

Lock Washer 8 mm, Stainless

234181601

Unavailable

61

Spring

291000750

Unavailable
