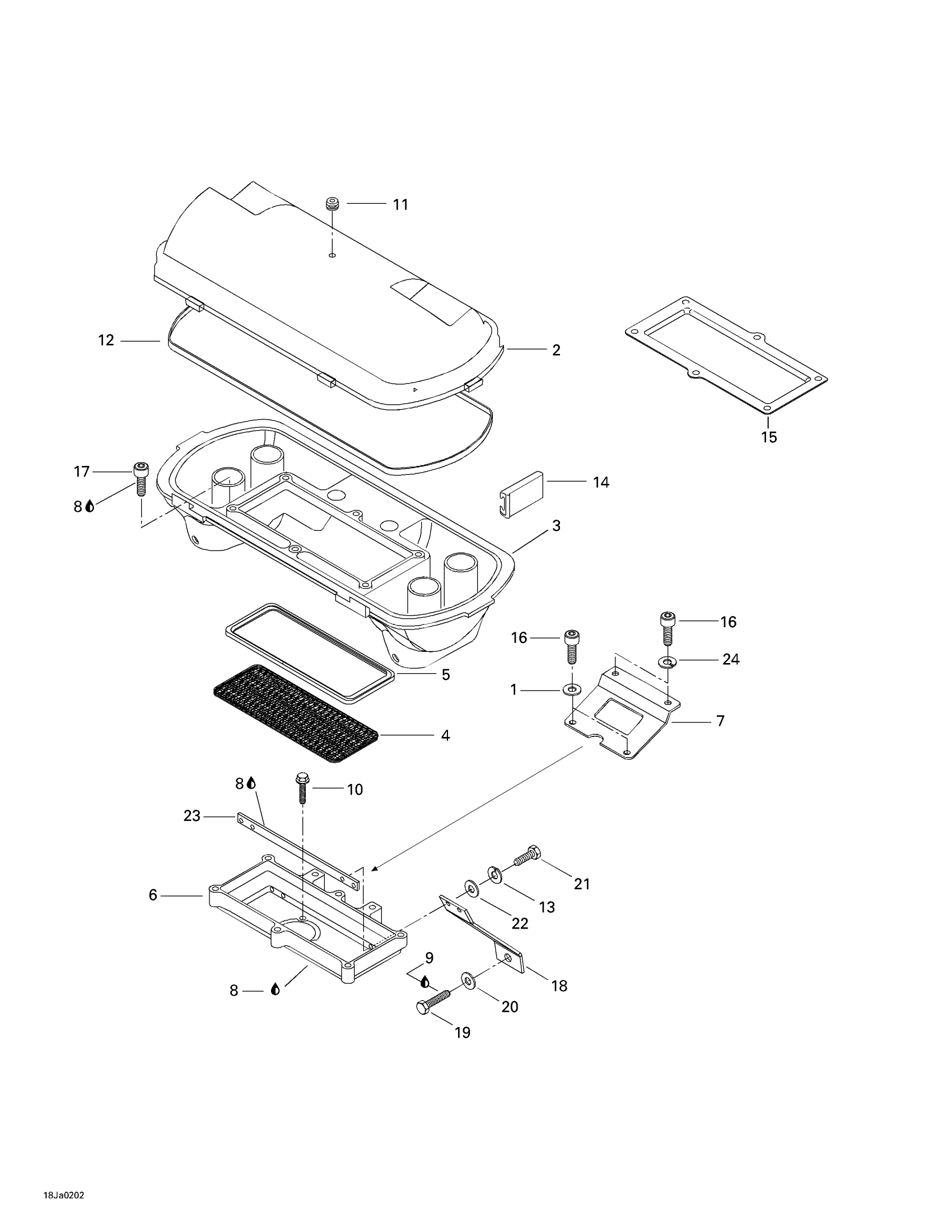

Sea-doo Sportster LT, 5493, 2002 Air Intake System Diagram

#

Description
Price

1

Stainless Flat Washer M6

234061600

$0.25

2

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

3

Air Intake Silencer Base

204250054

Unavailable

4

Flame Arrester

273000118

Unavailable

5

ISOLATOR - Call your local BRP dealership

273000020

$25.35

6

Housing Arrester

273000131

Unavailable

7

SUPPORT - Call your local BRP dealership

270000261

$20.74

8

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

9

Loctite 243, 10 ml

293800060

$20.77

10

Flanged Hex. Screw M6 X 25, Scotch

207562560

$0.62

11

Rubber Bumper

293830005

$5.33

12

GASKET - Call your local BRP dealership

293250023

Unavailable

13

Helical Lock Washer M5

234151601

$0.91

14

Retainer Clip

273000006

Unavailable

15

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

16

Socket Head Screw M6 x 12 (Scotch Grip)

205561206

Unavailable

17

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

18

FLAME ARRESTER SUPPORT PTO - Call your local BRP dealership

270000508

Unavailable

Flame Arrester Support MAG

270000507

Unavailable

19

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

$1.01

20

Flat Washer M8.5 x 18

293050001

$1.29

21

Hex. Screw M5 X 16, Scotch Grip

207351660

$0.69

22

Flat Washer M5, Stainless

234051600

$0.64

23

THREADED PLATE - Call your local BRP dealership

270000393

$19.97

24

Lock Washer Helical M6

234161601

$0.92
