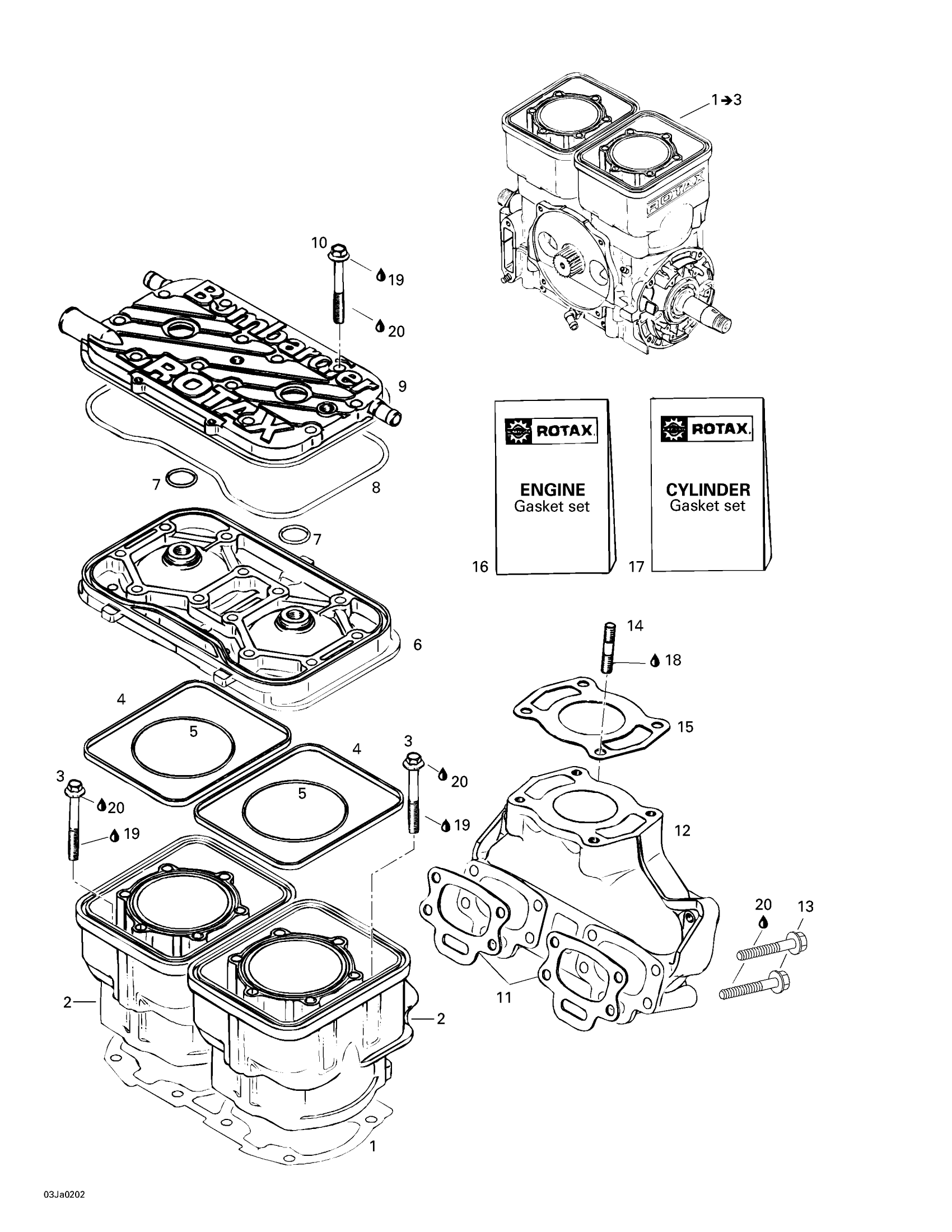

Sea-doo Sportster LT, 5493, 2002 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

SHORT BLOCK ASS'Y (SILVER) - Call your local BRP dealership | Includes 1 - 20.

290071703

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership

421000097

Unavailable

1

Gasket Cylinder 0.8 mm

290931404

Unavailable

Gasket Cylinder 0.6 mm

290931403

Unavailable

GASKET CYLINDER 0.5 MM - Call your local BRP dealership

290931402

Unavailable

Gasket Cylinder 0.4 mm

290931401

Unavailable

Gasket Cylinder 0.3 mm

290931400

Unavailable

2

Cylinder with Sleeve (Silver)

290923805

Unavailable

2

REBUILD-CYLINDERS RESLEEVING 717 95-96 - Call your local BRP dealership

421000056

Unavailable

3

HEX. FLANGE SCREW M8 X 90 - Call your local BRP dealership

290440368

Unavailable

4

Rubber Ring

290850045

Unavailable

5

O-Ring | Included in gasket kit

420931410

Unavailable

6

Head Cylinder (Silver)

290923252

Unavailable

7

O-Ring

420430782

Unavailable

8

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

9

Cylinder Head Cover (Silver)

290923262

Unavailable

10

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

11

Gasket This part replaces 290850638.

420850638

Unavailable

12

Exhaust Manifold

290979146

Unavailable

13

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

14

STUD M10 X 25, PTO - Call your local BRP dealership

290940798

Unavailable

15

Exhaust Gasket This part replaces 290950253.

420950253

Unavailable

16

ENGINE GASKET SET - Call your local BRP dealership This part replaces 290886319.

420886319

Unavailable

17

Cylinder Gasket Set (Not Shown)

290886318

Unavailable

18

Sealant Loctite 648

219703000

Unavailable

19

Loctite 243, 10 ml

293800060

Unavailable

20

Dow Corning 111, 150 g

413707000

Unavailable
