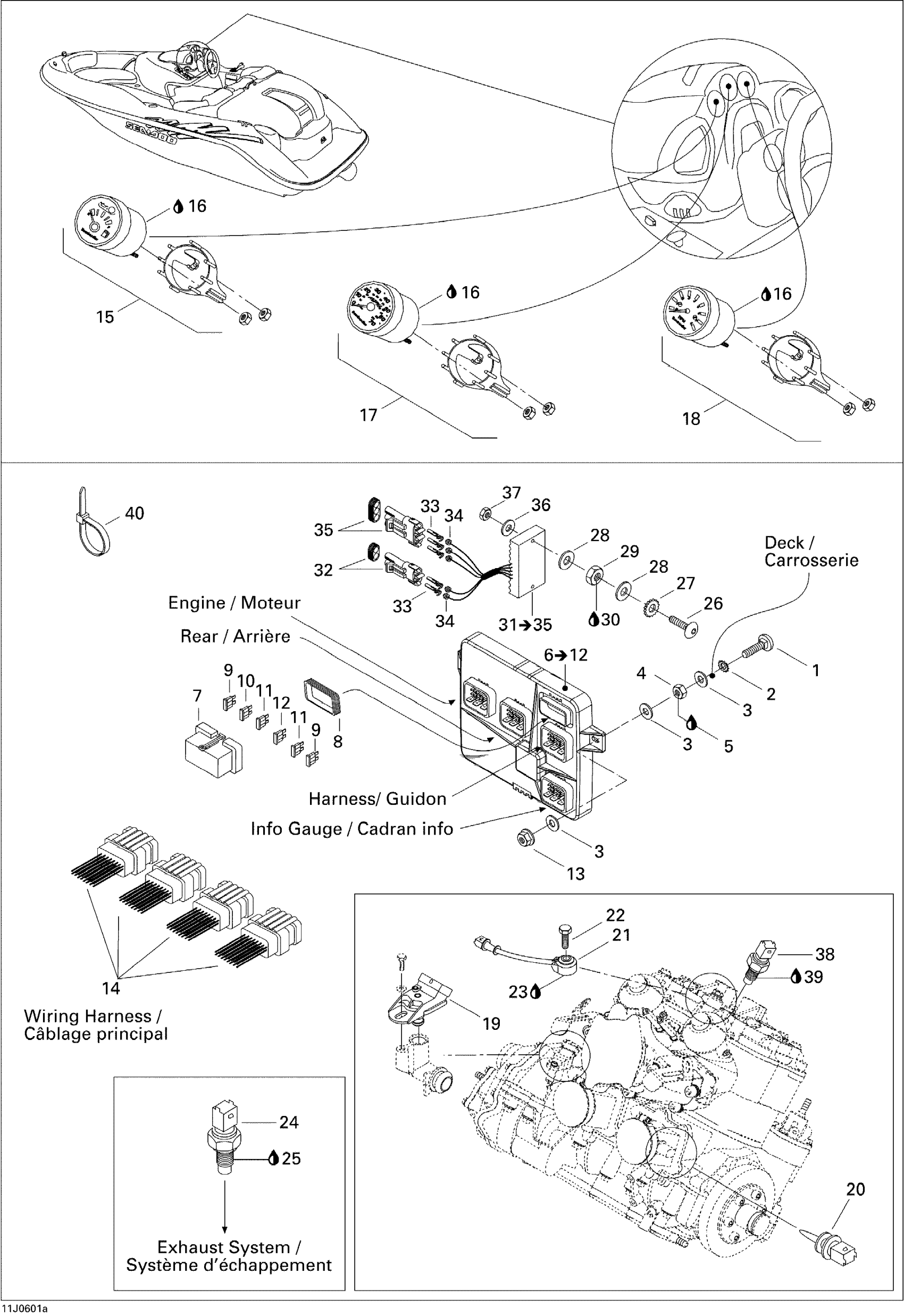

Sea-doo Sportster LE DI, 2006 Electrical Accessories 1 Diagram

#

Description
Price

1

Elevator Bolt

204000130

Unavailable

2

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

3

Flat Washer M6, Stainless

234062600

$0.64

4

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

5

Loctite 271, 10 ml

293800005

$20.77

6

Electronic Module Ass'y | Includes 6 to 12

278001747

Unavailable

7

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

8

Cover Seal

278001070

Unavailable

9

Fuse, 15 Amperes

278000343

$2.72

10

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

11

Fuse, 25 Amperes

278001443

$3.16

12

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

13

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

14

Harness Ass'y

204470863

Unavailable

15

Fuel/oil Gauge

204470963

Unavailable

16

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

17

Speedometer Gauge

204470964

Unavailable

18

Tachometer Gauge

204470965

Unavailable

19

Pressure Sensor

270600040

$157.92

20

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

21

Noise Sensor

270000484

$65.62

22

Hex. Screw M8 X 30

207183060

$1.30

23

Loctite 243, 10 ml

293800060

$20.77

24

Temperature Sensor

278002895

$31.82

25

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

26

Elevator Bolt

204000130

Unavailable

27

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

28

Flat Washer M6, Stainless

234062600

$0.64

29

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

30

Loctite 271, 10 ml

293800005

$20.77

31

Rectifier Ass’Y | Includes 30 - 34.

278001554

Unavailable

32

Male Connector, 2 Circuits

278000220

$11.02

33

Female Terminal

409007300

$0.36

34

Wire Seal

278000218

$3.48

35

Male Housing, 3 Circuits

278000273

$7.59

36

Stainless Flat Washer M6

234061600

$0.25

37

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

38

Temperature Sensor

278002895

$31.82

39

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

40

Tie-Rap 180 mm

414115200

$0.09
