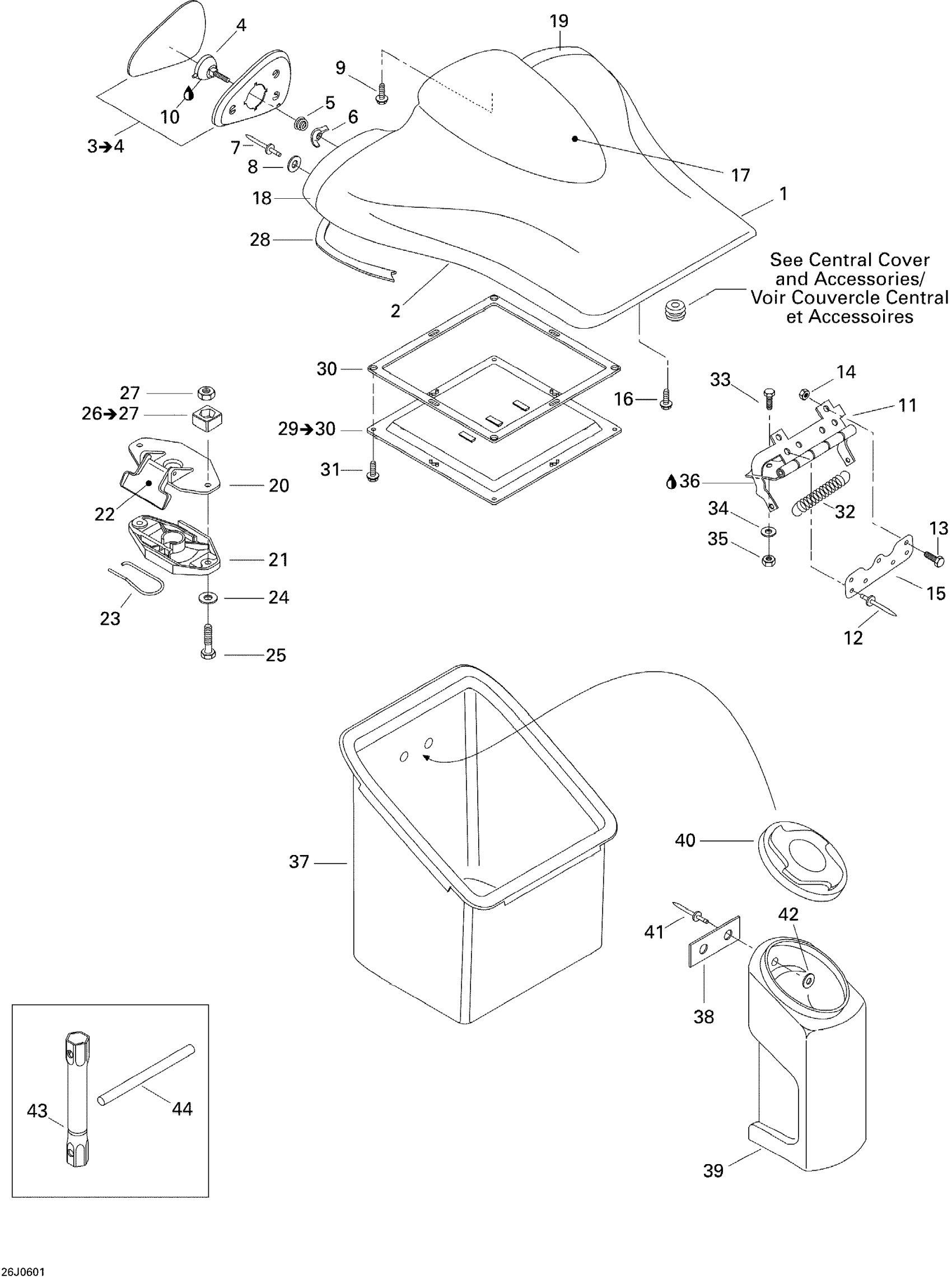

Sea-doo Sportster LE DI, 2006 Storage Compartment, Front Diagram

#

Description
Price

1

UPPER STORAGE COVER - Call your local BRP dealership

269500170

Unavailable

2

LOWER STORAGE COVER - Call your local BRP dealership

269500227

$105.35

3

RH Mirror | Includes 3 to 4

269500055

Unavailable

3

LH Mirror | Includes 3 to 4

269500056

Unavailable

4

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

5

Mirror Spring

269500082

Unavailable

6

WING NUT M6 - Call your local BRP dealership

232661600

$6.27

7

Pop Rivet 3/16"

293150008

$0.40

8

Flat Washer, Emhart

213200016

$0.68

9

Screw K40 X 10

241140060

$1.25

10

Synthetic Grease, 400 G

293550010

Unavailable

11

HINGE ASS'Y - Call your local BRP dealership

204620281

Unavailable

12

Pop Rivet 3/16"

293150039

$1.37

13

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

$0.74

14

Hex. Elastic Nut M5 | X

232551600

$0.91

15

Retainer Plate

269500107

Unavailable

16

Hex. Flange Screw K40 X 16

241141660

$1.25

17

Deflector

204620237

Unavailable

18

RH Mirror Housing

269500172

Unavailable

19

LH Mirror Housing

269500173

Unavailable

20

Latch Ass'y

269700109

$20.12

21

Latch Ass'y

269700109

$20.12

22

Latch Ass'y

269700109

$20.12

23

Latch Spring

269700017

$7.27

24

Stainless Flat Washer M6

234061600

$0.25

25

Hex. Screw M6 X 35

207163560

$1.17

26

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

27

Hex. Nut M6

232061600

$0.91

28

Seal Tray 1000Mm Long

219704368

$12.91

29

ACCESS COVER ASS'Y - Call your local BRP dealership | Includes 29 to 30

269500241

Unavailable

30

TRAY SEAL - Call your local BRP dealership

293200033

Unavailable

31

Hex. Flange Screw K40 X 16

241141660

$1.25

32

Hinge Spring

204620049

Unavailable

33

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

$1.72

34

Flat Washer M5, Stainless

234051600

$0.64

35

Hex. Elastic Nut M5 | X

232551600

$0.91

36

Synthetic Grease, 400 G

293550010

Unavailable

37

STORAGE TRAY - Call your local BRP dealership

269501940

Unavailable

38

GASKET - Call your local BRP dealership

293250037

$5.00

39

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

$23.82

40

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

41

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

$0.35

42

Flat Washer M3, Stainless

234032600

$0.54

43

Socket Wrench

529035731

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable
