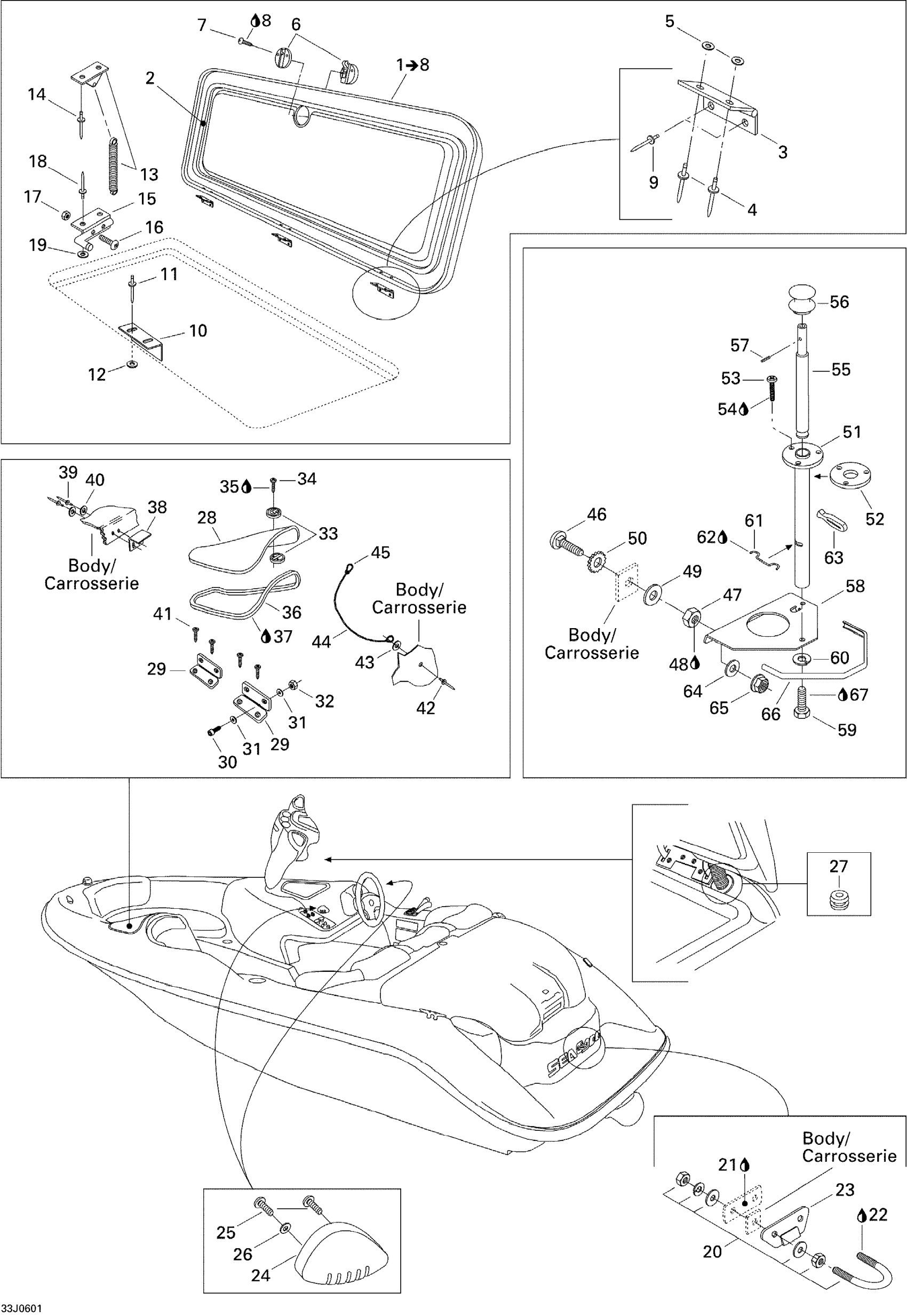

Sea-doo Sportster LE DI, 2006 Central Cover And Accessories Diagram

#

Description
Price

1

CENTRAL COVER - Call your local BRP dealership

204072636

Unavailable

2

Seal Tray 1000Mm Long

219704368

$12.91

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Pop Rivet 3/16"

293150088

$0.91

5

Flat Washer M5, Stainless

234051600

$0.64

6

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

7

SCREW M5 X 16 - Call your local BRP dealership

208651660

$1.69

8

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

9

Pop Rivet 3/16"

293150005

$0.40

10

KEEPER - Call your local BRP dealership

204070060

$9.57

11

Pop Rivet 3/16"

293150088

$0.91

12

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

13

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

14

RIVET_POP 3/16 - Call your local BRP dealership

293150055

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

PHILLIPS SCREW 6-32 X 3/8 - Call your local BRP dealership

250000231

$0.80

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Pop Rivet 3/16"

293150043

$1.61

19

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

20

U-Bolt

204070418

Unavailable

21

Silicone Sealant 51388, 300 ml

296000309

$35.72

22

Loctite 271, 10 ml

293800005

$20.77

23

Ski Tow Plate, Black

204070054

Unavailable

24

Ventilation Grill, Yellow

291000829

Unavailable

25

Flange Screw K40 X 20

241642060

$1.09

26

Flat Washer 4 mm, Stainless

234042600

$0.92

27

Grommet

204070238

Unavailable

28

STORAGE DOOR - Call your local BRP dealership

204072062

Unavailable

29

Hinge

269700031

$7.80

30

Socket Head Screw M3 X 10

205431060

Unavailable

31

Flat Washer 3 mm, Stainless Steel

234031600

$0.54

32

HEX. JAM NUT 3 MM - Call your local BRP dealership

232130600

$0.43

33

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

34

SCREW M5 X 16 - Call your local BRP dealership

208651660

$1.69

35

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

36

BLACK TRIM, METER - Call your local BRP dealership

204070055

Unavailable

37

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

38

KEEPER - Call your local BRP dealership

204070060

$9.57

39

Pop Rivet 3/16"

293150039

$1.37

40

Flat Washer M5, Stainless

234051600

$0.64

41

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

42

Pop Rivet 3/16"

293150039

$1.37

43

Flat Washer 5 mm, Stainless

234052600

$0.64

44

RETAINER CABLE - Call your local BRP dealership

204000117

$37.66

45

CABLE CLIP - Call your local BRP dealership

293750000

$15.35

46

Elevator Bolt

204000130

Unavailable

47

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

48

Loctite 271, 10 ml

293800005

$20.77

49

Flat Washer M6, Stainless

234062600

$0.64

50

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

51

FIXED TUBE - Call your local BRP dealership

204071495

Unavailable

52

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

53

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

$1.69

54

Loctite 243, 10 ml

293800060

$20.77

55

SKI SHAFT - Call your local BRP dealership

204071624

Unavailable

56

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

57

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

58

FIXATION PLATE - Call your local BRP dealership

204071140

Unavailable

59

Hex. Screw M8 X 18

207181860

$1.48

60

Lock Washer 8 mm, Stainless

234181601

$0.46

61

SPRING - Call your local BRP dealership

291001205

Unavailable

62

Synthetic Grease, 400 G

293550010

Unavailable

63

Windshield Latch

570023800

$3.58

64

Flat Washer M6, Stainless

234062600

$0.64

65

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

$1.14

66

Was 271000110 Protection Trim

219704353

$15.03

67

Loctite 243, 10 ml

293800060

$20.77
