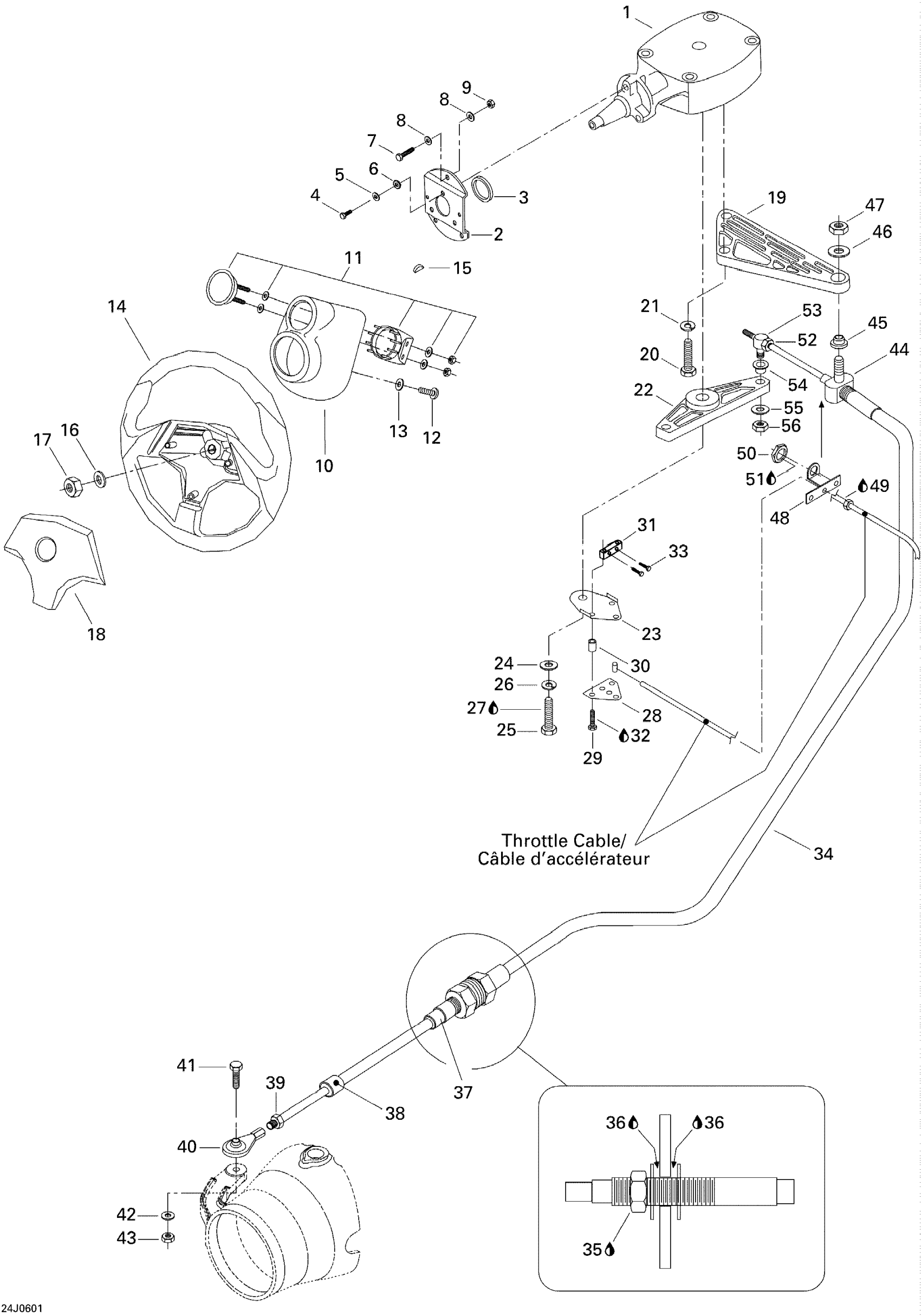

Sea-doo Sportster LE DI, 2006 Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership | Single HO Engine Models

204390361

Unavailable

2

Support

277000383

Unavailable

3

SPACER - Call your local BRP dealership

277000593

Unavailable

4

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.64

6

Serrated Lock Washer 8 mm

234481608

$1.09

7

Hex. Screw M6 X 30

207163060

$1.25

8

Stainless Flat Washer M6

234061600

$0.25

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

COLLAR, YELLOW - Call your local BRP dealership

277000507

Unavailable

11

GAUGE CAP - Call your local BRP dealership

204390379

$32.28

12

Hex. Flange Screw K40 X 25

241142560

$2.17

13

Flat Washer 4 mm, Stainless

234042600

$0.92

14

STEERING, BLACK - Call your local BRP dealership

204390440

Unavailable

15

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

16

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

$1.78

17

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

18

STEERING COVER, YELLOW - Call your local BRP dealership

204390441

Unavailable

19

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

20

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

21

Lock Washer 1/4”

211200025

$1.26

22

ARM - Call your local BRP dealership

204390040

Unavailable

23

Lower Clip

204390285

Unavailable

24

Spacer

204390057

Unavailable

25

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

26

Lock Washer 1/4”

211200025

$1.26

27

Loctite 243, 10 ml

293800060

$20.77

28

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

29

Hex. Screw M6 X 25

207162560

$1.22

30

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

31

Adjustment Block

204390056

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

$1.72

34

Steering Cable

277001765

$239.97

35

Loctite 243, 10 ml

293800060

$20.77

36

Silicone Sealant 51388, 300 ml

296000309

$35.72

37

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

38

Terminal Wiper

277000441

Unavailable

39

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

$6.23

40

BALL JOINT - Call your local BRP dealership

204120074

$31.82

41

Hex. Screw M6 X 35

207063560

$1.85

42

Stainless Flat Washer M6

234061600

$0.25

43

Hex. Elastic Stop Nut M6

232561600

$0.92

44

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

45

Flanged Bushing

293350014

$12.08

46

Flat Washer 10 mm, Stainless

234001600

$0.91

47

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

48

Cable Support

204390035

Unavailable

49

Loctite 243, 10 ml

293800060

$20.77

50

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

$10.78

51

Loctite 243, 10 ml

293800060

$20.77

52

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

$6.23

53

PIVOT - Call your local BRP dealership

277000456

Unavailable

54

BUSHING - Call your local BRP dealership

204130095

Unavailable

55

FLAT WASHER - Call your local BRP dealership

211200019

$1.14

56

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

$1.14
