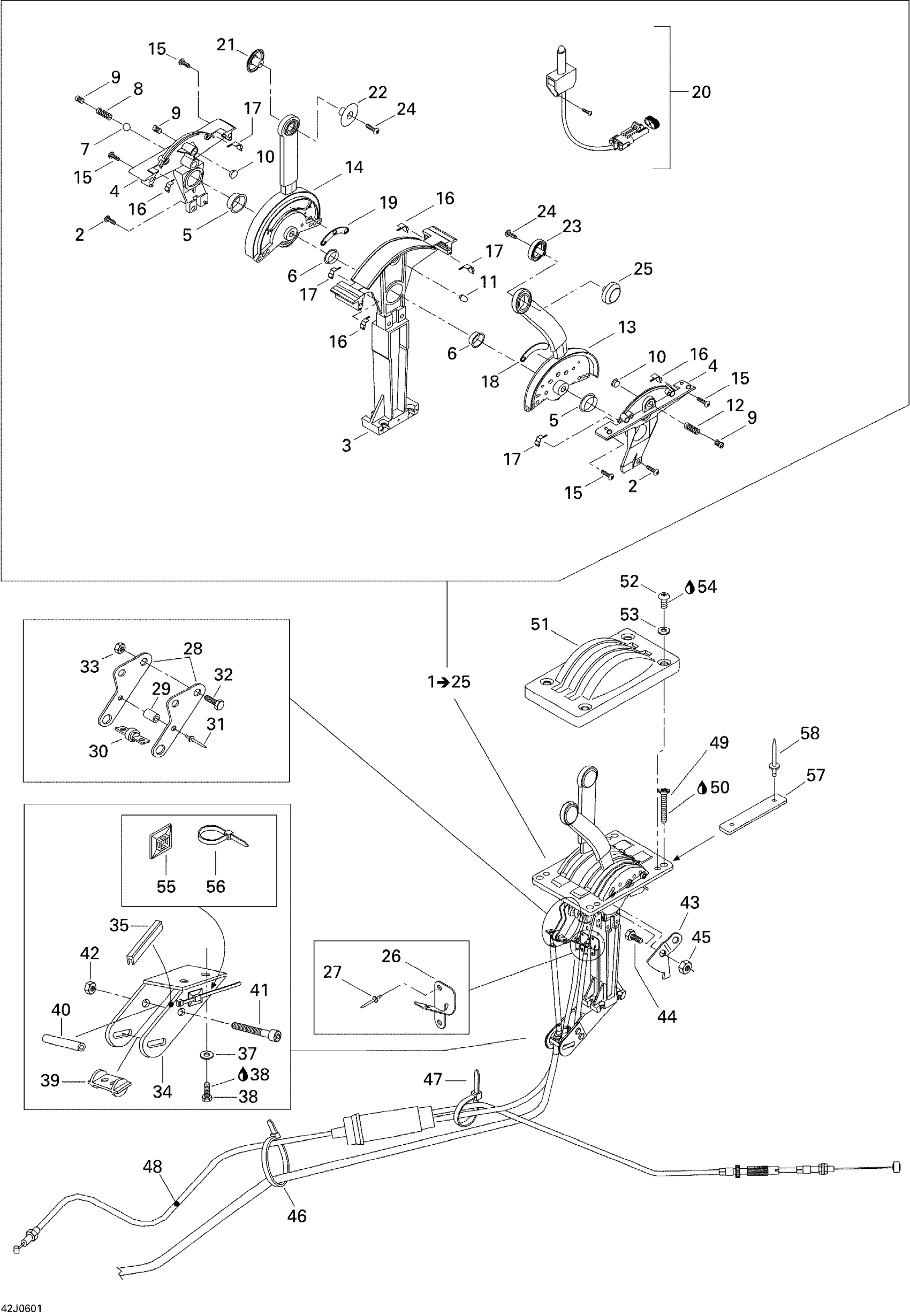

Sea-doo Sportster LE DI, 2006 Control Handle Diagram

#

Description
Price

1

Ultraflex Control Ass'y | Includes 18 to 46

204390377

$1,013.32

2

Screw M5 X 14

277000660

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Half-Case

277000653

Unavailable

5

BUSHING - Call your local BRP dealership

277000397

Unavailable

6

BUSHING - Call your local BRP dealership

277000398

Unavailable

7

BALL - Call your local BRP dealership

277000399

Unavailable

8

SPRING - Call your local BRP dealership

277000400

Unavailable

9

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

10

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

11

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

12

SPRING - Call your local BRP dealership

277000401

Unavailable

13

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

14

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

15

Screw M5 X 20

277000421

Unavailable

16

RH Water Seal

277000423

Unavailable

17

LH Water Seal

277000424

Unavailable

18

THROTTLE LEVER SPACER - Call your local BRP dealership

277000659

Unavailable

19

Shift Lever Spacer

277000408

Unavailable

20

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

21

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

22

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

23

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

24

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

25

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

26

CABLE SUPPORT - Call your local BRP dealership

277000504

$16.60

27

RIVET_POP 1/8 - Call your local BRP dealership

293150026

$0.29

28

LINK - REVERSE - Call your local BRP dealership

277000578

Unavailable

29

SPACER - Call your local BRP dealership

277000449

Unavailable

30

PIVOT BRACKET - Call your local BRP dealership

277000450

$79.97

31

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

$1.19

32

Hex. Screw M6 X 16

207161660

$1.22

33

Hex. Elastic Stop Nut M6

232561600

$0.92

34

SUPPORT - Call your local BRP dealership

277000452

Unavailable

35

Was 271000110 Protection Trim

219704353

$15.03

36

Hex. Cap Screw M6 X 12

207161260

$1.25

37

Lock Washer Helical M6

234161601

$0.92

38

Loctite 243, 10 ml

293800060

$20.77

39

PIVOT BRACKET - Call your local BRP dealership

277000451

Unavailable

40

SPACER - Call your local BRP dealership

277000453

Unavailable

41

SOCKET HEAD SCREW M6 X 80 - Call your local BRP dealership

205068060

$2.94

42

Hex. Elastic Stop Nut M6

232561600

$0.92

43

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

44

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

$1.20

45

Hex. Elastic Nut M5 | X

232551600

$0.91

46

Tie-Rap 180 mm

414115200

$0.09

47

Tie Wrap 142 mm

293750002

$0.88

48

THROTTLE CABLE - Call your local BRP dealership

204390384

Unavailable

49

PHILLIPS SCREW M5 X 30 - Call your local BRP dealership

208453060

Unavailable

50

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

51

Control Cover

204390123

Unavailable

52

Phillips Screw M4 X 10

208641060

$0.98

53

Flat Washer 4 mm

234040600

$0.46

54

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

55

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

56

Tie Wrap 94 mm | 4X4

293750001

$0.83

57

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

58

Pop Rivet 3/16"

293150013

$1.11
