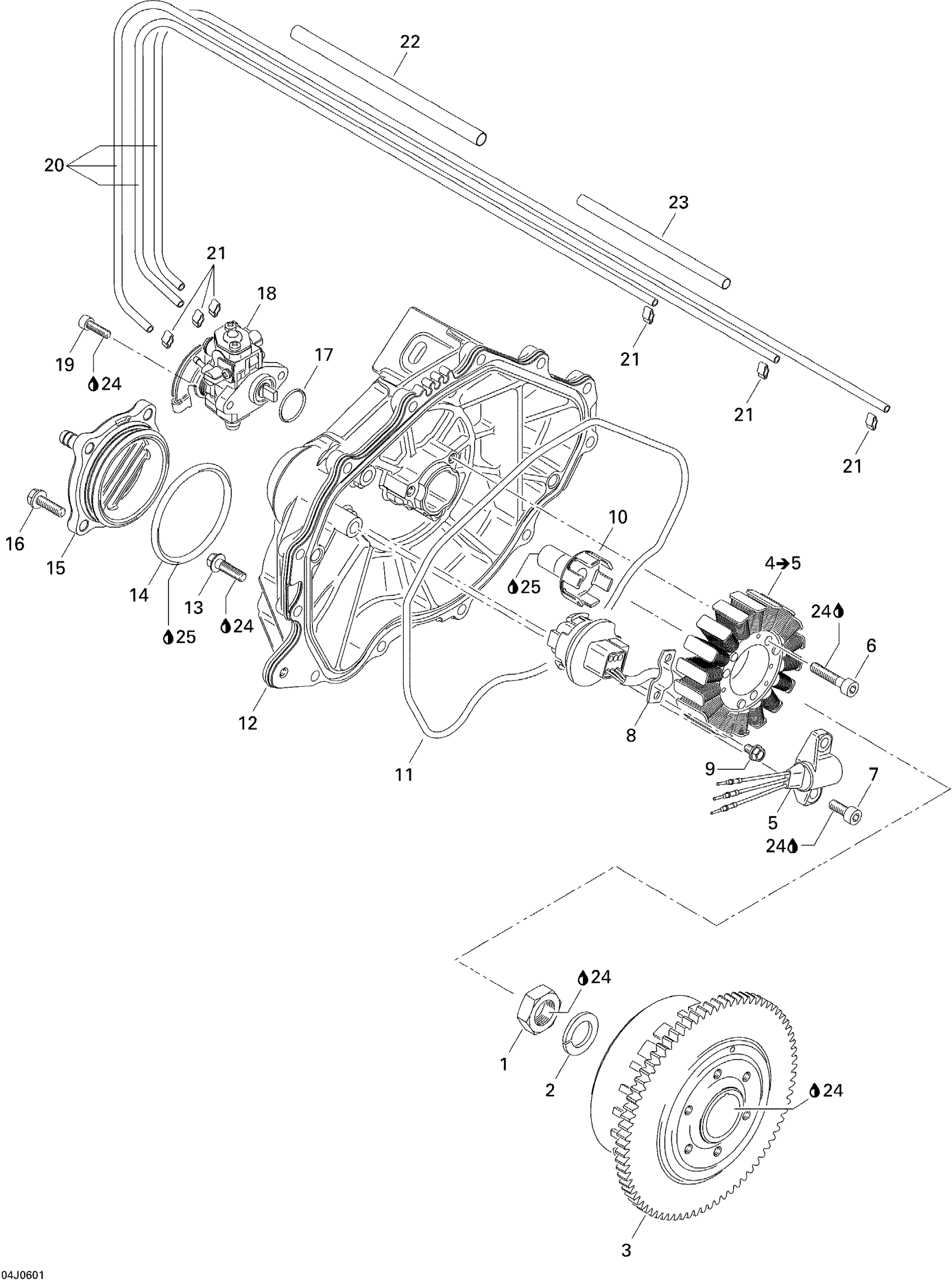

Sea-doo Sportster LE DI, 2006 Magneto And Oil Pump Diagram

#

Description
Price

1

HEX. NUT M18 - Call your local BRP dealership

420942220

$9.52

2

LOCK WASHER 18 MM - Call your local BRP dealership

420945757

$1.60

3

Flywheel Hub

420966822

Unavailable

4

STATOR PLATE ASS'Y, 270 WATTS - Call your local BRP dealership | Includes 4 to 5

420888656

Unavailable

5

Sensor Ass'y

420966760

Unavailable

6

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

Unavailable

7

Hex.Screw M6 X 20

420441311

$4.24

8

RETAINER PLATE - Call your local BRP dealership

420853080

$9.97

9

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

$1.18

10

OIL PUMP SHAFT - Call your local BRP dealership

420837395

Unavailable

11

O-RING - Call your local BRP dealership

420931690

$11.98

12

IGNITION COVER, BLACK - Call your local BRP dealership

420811422

$223.82

13

HEX. FLANGED SCREW M6 X 25 - Call your local BRP dealership

420240033

$5.35

14

O-RING - Call your local BRP dealership

420850390

$9.89

15

WATERCHANNEL COVER - Call your local BRP dealership

420811225

$18.43

16

TAPPING SCREW M6 X 20 - Call your local BRP dealership

420941253

$10.17

17

O-RING - Call your local BRP dealership

293300018

Unavailable

18

OIL PUMP ASS'Y - Call your local BRP dealership

420888541

Unavailable

19

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

$1.60

20

Oil Hose 1500Mm Long

219704404

$13.62

21

Clamp

293650105

$3.68

22

PROTECTION HOSE - Call your local BRP dealership

420960205

$9.20

23

PROTECTION HOSE - Call your local BRP dealership

420260465

Unavailable

24

Loctite 243, 10 ml

293800060

$20.77

25

Dow Corning 111, 150 g

413707000

$57.82
