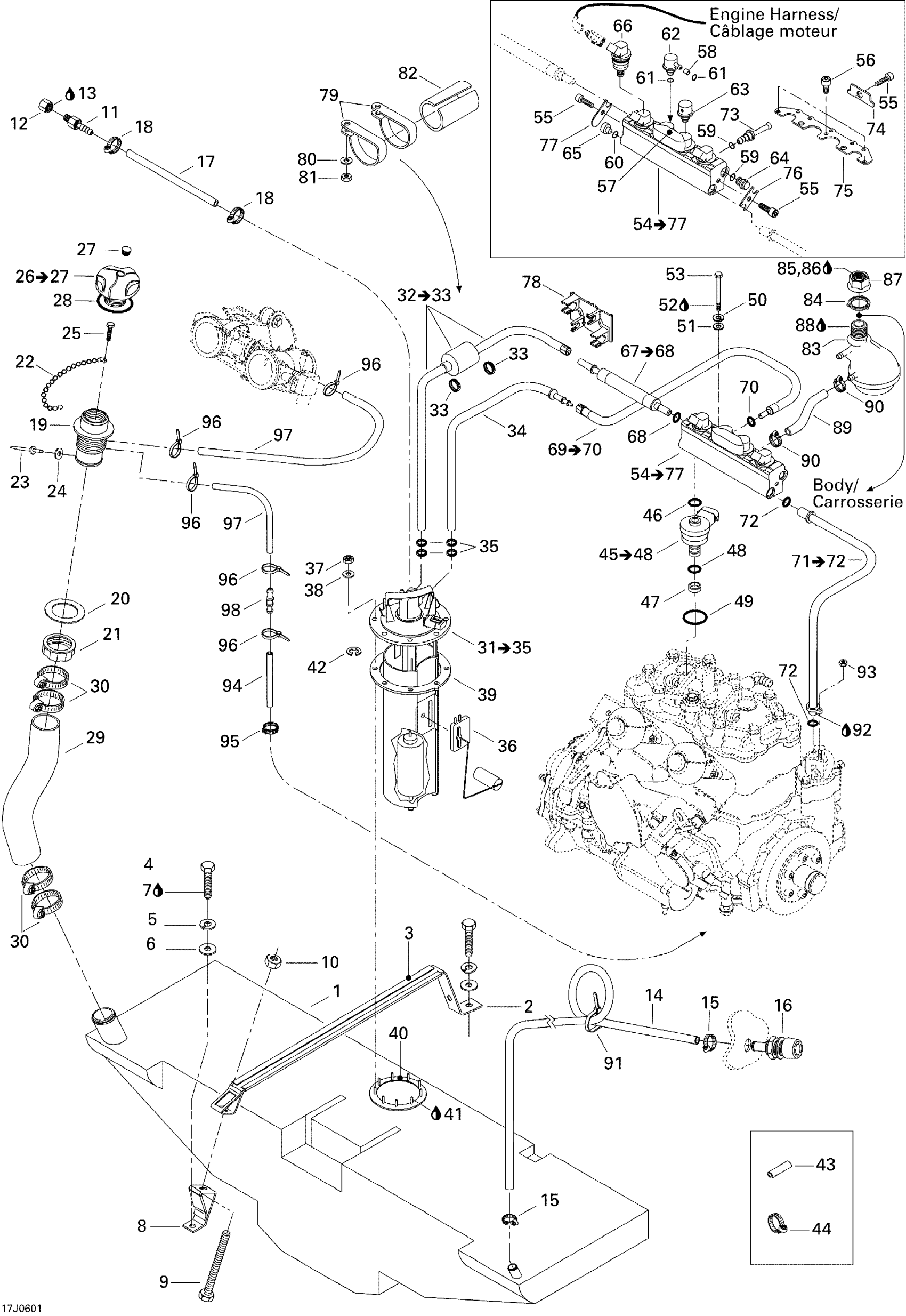

Sea-doo Sportster LE DI, 2006 Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership

204560326

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.30

5

Lock Washer 8 mm, Stainless

234181601

$0.46

6

Flat Washer 8 mm, Stainless

234082600

$1.98

7

Loctite 271, 10 ml

293800005

$20.77

8

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

9

HEX. SCREW M8 X 35 - Call your local BRP dealership

207183560

Unavailable

10

Hex. Elastic Nut M8

232581600

$1.25

11

COUPLER - Call your local BRP dealership

204560265

Unavailable

12

Pipe Cap

204560263

Unavailable

13

Was 293800013 Loctite 56765

219704454

$65.35

14

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

15

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

16

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

17

Was 275500549 Hose 1/4"

219704357

$183.82

18

NORMA CLAMP - Call your local BRP dealership

293650121

$7.09

19

Filler Neck

275500247

Unavailable

20

Gasket

293250029

$12.06

21

Filler Neck Nut, Fuel

211100012

$10.02

22

Oil Cap Chain

275500015

Unavailable

23

Rivet 1/8”

293150057

Unavailable

24

Flat Washer M3, Stainless

234032600

$0.54

25

Screw K40 X 10

241140060

$1.25

26

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

27

Black, Snap Cap

293000034

$7.48

28

Gasket

293250017

Unavailable

29

NECK FILLER HOSE - Call your local BRP dealership

219700374

Unavailable

30

Norma Clamp

293650081

$9.87

31

FUEL MODULE ASS'Y - Call your local BRP dealership | Includes 31 to 35

204560289

Unavailable

32

SUPPLY HOSE ASS'Y - Call your local BRP dealership | Includes 32 to 33

204560290

$247.66

33

Oetiker Clamp | Europe

293650030

$4.32

34

Return Hose Ass'y

204560291

Unavailable

35

Oetiker Clamp | Europe

293650030

$4.32

36

Sensor Lever

204560266

Unavailable

37

Elastic Stop Nut 5 mm

232551200

$1.22

38

Flat Washer 5 mm, Stainless

234052400

$2.34

39

Gasket

293250088

$10.95

40

C-Ring, 9 Studs

275500679

$75.35

41

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

42

Circlip 5 mm

293370002

$5.52

43

Hose 5/16”, Meter

204560177

Unavailable

44

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

45

Air Injector | Includes 45 to 48

275500633

$252.82

46

O-Ring

293300084

Unavailable

47

INJECTOR RING - Call your local BRP dealership

270600030

Unavailable

48

O-Ring

293300076

Unavailable

49

O-Ring

293300083

Unavailable

50

Lock Washer 8 mm, Stainless

234181601

$0.46

51

Stainless, Flat Washer 8 mm

234081600

$0.46

52

Loctite 243, 10 ml

293800060

$20.77

53

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

54

FUEL DISTRIBUTOR ASS'Y - Call your local BRP dealership | Includes 54 to 77

204560300

Unavailable

55

Socket Head Screw M6 X 12

205061260

$1.26

56

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

205051260

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Not Available As Spare Part - Friction Washer

Unavailable

59

O-RING - Call your local BRP dealership

293300069

Unavailable

60

O-Ring

275500598

Unavailable

61

Not Available As Spare Part - Friction Washer

Unavailable

62

FUEL REGULATOR - Call your local BRP dealership

275500464

Unavailable

63

Air Regulator

275500463

Unavailable

64

Fuel Plug

204560304

Unavailable

65

Not Available As Spare Part - Friction Washer

Unavailable

66

Fuel Injector

275500460

$254.77

67

Fuel Supply Hose Ass'y | Includes 67 to 68

204560307

Unavailable

68

O-RING - Call your local BRP dealership

293300069

Unavailable

69

Fuel Return Hose Ass'y | Includes 69 to 70

204560313

Unavailable

70

Not Available As Spare Part - Friction Washer

Unavailable

71

Not Available As Spare Part - Friction Washer

Unavailable

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Not Available As Spare Part - Friction Washer

Unavailable

74

Not Available As Spare Part - Friction Washer

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Not Available As Spare Part - Friction Washer

Unavailable

77

Not Available As Spare Part - Friction Washer

Unavailable

78

Clamp Tie

291001399

Unavailable

79

CLAMP - Call your local BRP dealership

293650139

$12.28

80

Flat Washer 5 mm

234051500

$0.69

81

Hex. Elastic Nut M5 | X

232551600

$0.91

82

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

83

Noise Reducer

270000569

Unavailable

84

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

85

Was 293800041 Loctite Primer 7649

219704458

$41.99

86

Loctite 243, 10 ml

293800060

$20.77

87

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

88

Silicone Sealant 51388, 300 ml

296000309

$35.72

89

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

90

Tridon Gear Clamp

293650170

$1.74

91

Tie-Rap 180 mm

414115200

$0.09

92

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

93

Hex. Elastic Stop Nut M6

232561600

$0.92

94

HOSE 3 MM - Call your local BRP dealership

270000469

$5.77

95

Clamp

293650105

$3.68

96

Tie Wrap 94 mm | 4X4

293750001

$0.83

97

Was 420660574 Pressure Hose 280 mm

219704352

$208.43

98

STRAIGHT FITTING - Call your local BRP dealership

275500444

$7.66
