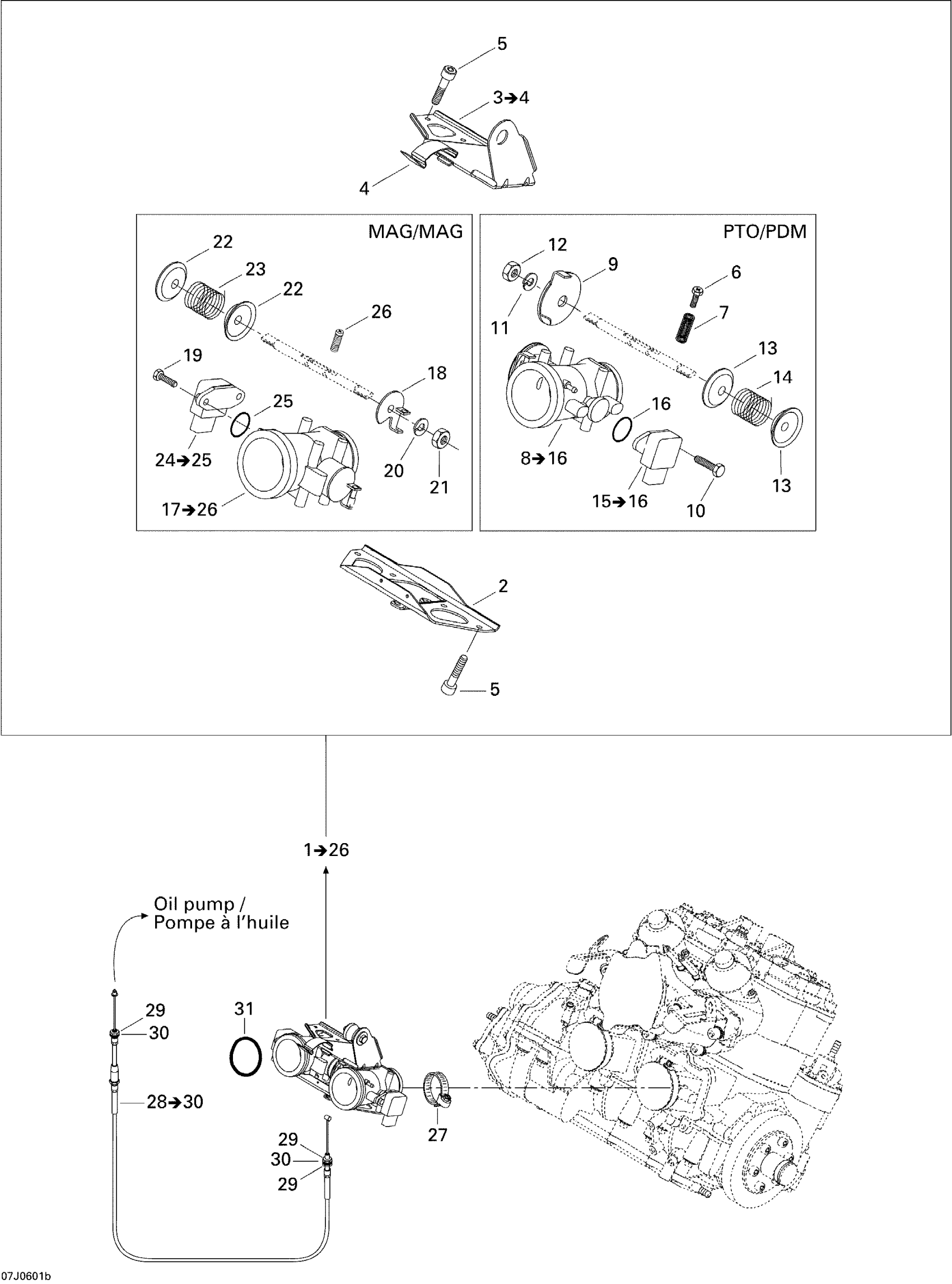

Sea-doo Sportster LE DI, 2006 Engine 2 Diagram

#

Description
Price

1

Throttle Body | Includes 1 to 26

270600058

Unavailable

2

LOWER SUPPORT - Call your local BRP dealership

270600069

$38.43

3

Support Ass'y | Includes 3 to 4

270600070

Unavailable

4

LATCH BRACKET - Call your local BRP dealership

270600073

$16.60

5

Socket Head Screw M5 X 10

205051060

$1.54

6

ADJUSTER SCREW - Call your local BRP dealership

270600074

$2.52

7

Spring

270600075

Unavailable

8

PRIMARY THROTTLE BODY - Call your local BRP dealership | Includes 8 to 16

270600076

Unavailable

9

Throttle Lever Ass'y

270600077

Unavailable

10

POTENTIOMETER SCREW M4 - Call your local BRP dealership

270600078

$4.00

11

Lock Washer Helical M6

234161601

$0.92

12

Hex. Nut M6

232061600

$0.91

13

GUIDE SPRING - Call your local BRP dealership

270600079

$10.26

14

Spring

270600080

Unavailable

15

Position Sensor

420866120

$77.97

16

O-Ring

270000544

$4.60

17

SECONDARY THROTTLE BODY - Call your local BRP dealership | Includes 17 to 26

270600081

Unavailable

18

Pick-Up Lever

270600082

Unavailable

19

POTENTIOMETER SCREW M4 - Call your local BRP dealership

270600078

$4.00

20

Lock Washer Helical M6

234161601

$0.92

21

Hex. Nut M6

232061600

$0.91

22

GUIDE SPRING - Call your local BRP dealership

270600079

$10.26

23

Spring

270600083

Unavailable

24

Position Sensor

420866120

$77.97

25

O-Ring

270000544

$4.60

26

IDLE SCREW - Call your local BRP dealership

270600084

$8.06

27

Norma Clamp

293650079

$8.89

28

Injection Cable | Includes 28 to 30

270000546

$55.35

29

Hex. Nut M6

232160600

$1.08

30

Stainless Flat Washer M6

234061600

$0.25

31

O-Ring

293250065

Unavailable
