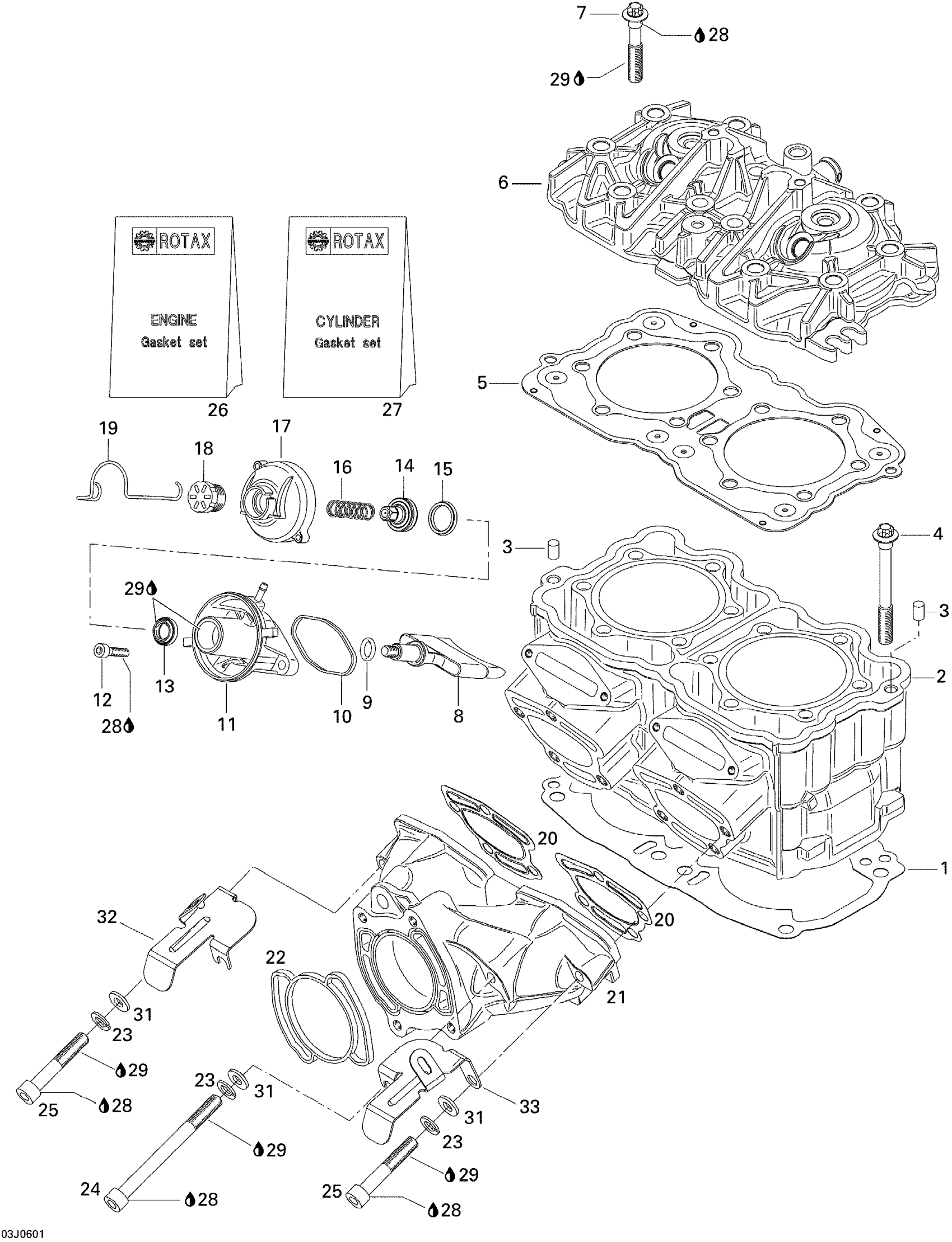

Sea-doo Sportster LE DI, 2006 Cylinder And Exhaust Manifold Diagram

#

Description
Price

1

GASKET CYLINDER 0.5 MM - Call your local BRP dealership

420931905

$13.82

1

GASKET CYLINDER 0.6 MM - Call your local BRP dealership

420931906

$17.66

1

GASKET CYLINDER 0.7 MM - Call your local BRP dealership

420931908

Unavailable

1

GASKET CYLINDER 0.8 MM - Call your local BRP dealership

420931907

$16.89

2

Cylinder With Sleeve, Black

420613579

Unavailable

3

Center Pin 8 X 12

420632010

$3.07

4

TORX SCREW M10 X 94 - Call your local BRP dealership

420640293

$17.23

5

CYLINDER HEAD GASKET - Call your local BRP dealership

420931706

Unavailable

6

Head Cylinder, Silver

420613681

Unavailable

7

TORX SCREW M10 X 60 - Call your local BRP dealership

420640308

Unavailable

8

EXHAUST VALVE - Call your local BRP dealership

420854540

$92.27

9

O-RING - Call your local BRP dealership

420250462

$3.11

10

RUBBER GASKET - Call your local BRP dealership

420931670

$7.11

11

Valve Housing

420854556

Unavailable

12

Socket Head Screw M6 X 25

205062560

$1.42

13

SEALING RING - Call your local BRP dealership

420931970

$24.67

14

EXHAUST VALVE PISTON - Call your local BRP dealership

420854560

Unavailable

15

GROOVED RING - Call your local BRP dealership

420931950

$19.20

16

COMPRESSION SPRING - Call your local BRP dealership

420939130

$9.08

17

Valve Cover This part replaces 420911558.

420911559

$24.02

18

SCREW ADJUSTMENT - Call your local BRP dealership

420241222

$15.35

19

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

20

EXHAUST MANIFOLD GASKET - Call your local BRP dealership

420931653

$14.83

21

Exhaust Manifold

420979607

$373.82

22

EXHAUST GASKET - Call your local BRP dealership

420931990

$11.98

23

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

24

SOCKET HEAD SCREW M10 X 110 - Call your local BRP dealership

420941483

$10.17

25

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

26

ENGINE GASKET SET - Call your local BRP dealership

420888134

Unavailable

27

CYLINDER GASKET SET - Call your local BRP dealership

420888139

Unavailable

28

Loctite 243, 10 ml

293800060

$20.77

29

Dow Corning 111, 150 g

413707000

$57.82

30

Short Block Ass'y, 947 Di

420094707

Unavailable

31

Flat Washer 10 mm, Stainless

234000600

$1.07

32

DUCT SUPPORT, MAG - Call your local BRP dealership

273000170

$16.45

33

Duct Support, PTO

273000169

Unavailable
