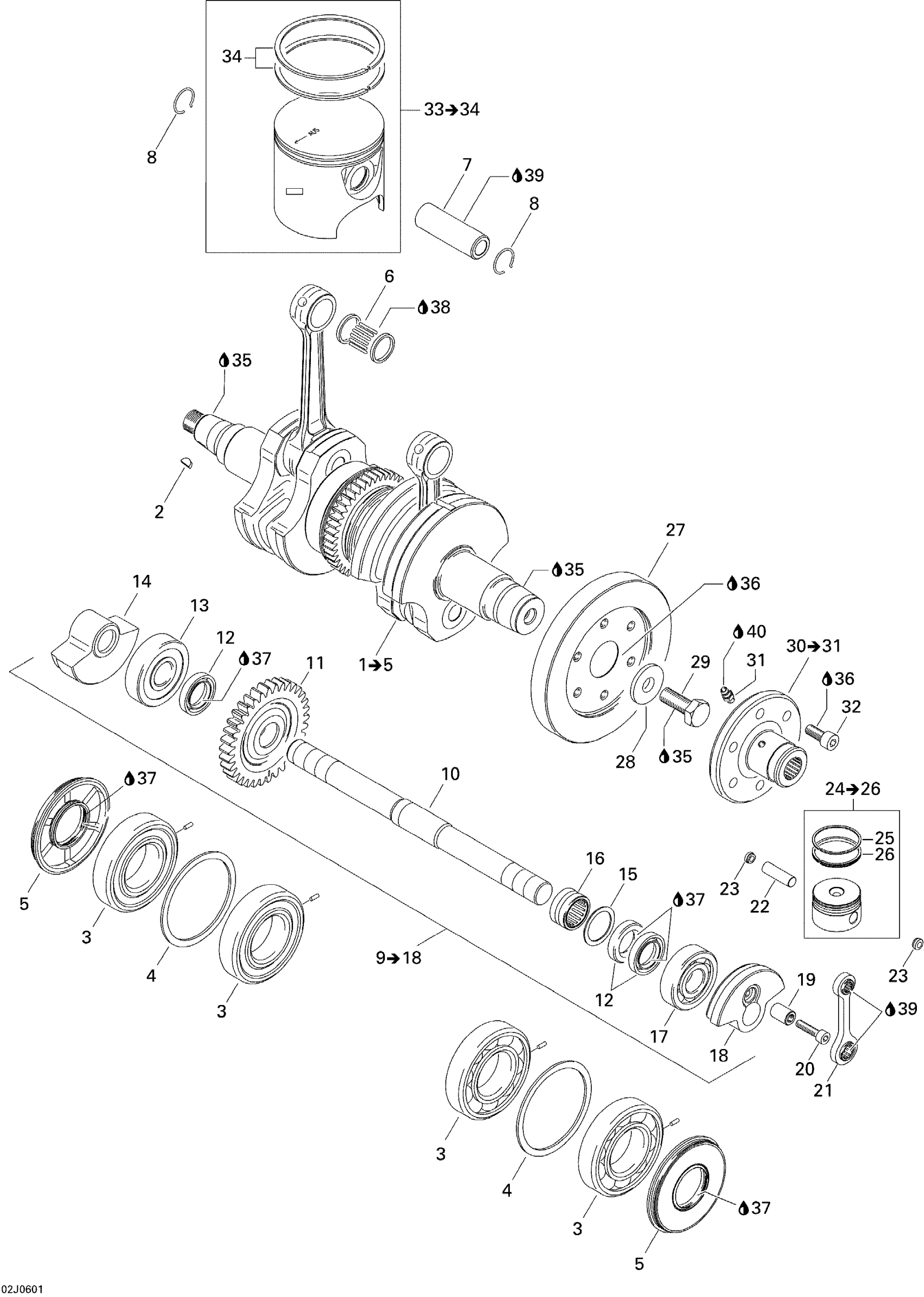

Sea-doo Sportster LE DI, 2006 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 5

420887767

Unavailable

2

Woodruff Key

420246055

$1.99

3

Bearing_Ball - Call your local BRP dealership

420432271

Unavailable

4

Washer

420926190

$9.37

5

OIL SEAL - Call your local BRP dealership

420931731

Unavailable

6

Bearing_Needle This part replaces 420832552.

420832553

$29.20

7

Piston Pin - Call Your Local BRP Dealership

420916398

Unavailable

8

CIRCLIP - Call your local BRP dealership

420845465

$1.48

9

BALANCED SHAFT 947 ASS'Y - Call your local BRP dealership | Includes 9 to 18

420837446

$643.05

10

BALANCED SHAFT 947 - Call your local BRP dealership

420837382

$96.89

11

Balanced Gear 34 Teeth

420834360

$281.51

12

Oil Seal

420930267

$27.66

13

BALL BEARING 6304 - Call your local BRP dealership

420932097

$27.66

14

Balance Mass 947

420818950

Unavailable

15

Washer

420927192

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership

420232555

Unavailable

17

BALL BEARING - Call your local BRP dealership

420932090

Unavailable

18

MASS BALANCE - Call your local BRP dealership

420818955

$76.12

19

COMPRESSOR PIN - Call your local BRP dealership

420921460

Unavailable

20

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

420640690

Unavailable

21

CONROD ASS?Y - Call your local BRP dealership

420917505

$61.51

22

PISTON PIN 9 X 30 - Call your local BRP dealership

420916430

$27.66

23

DISTANCE BUSHING - Call your local BRP dealership

420847940

$12.75

24

PISTON ASS?Y 38.95 MM - Call your local BRP dealership | Includes 24 to 26

420888550

$55.35

25

RECTANGULAR RING - Call your local BRP dealership

420215970

$14.88

26

OIL SCRAPER RING - Call your local BRP dealership

420215960

Unavailable

27

COUPLING - Call your local BRP dealership

420958083

Unavailable

28

WASHER - Call your local BRP dealership

420827782

$9.97

29

HEX. SCREW M12 X 30 - Call your local BRP dealership

420640120

$10.17

30

COUPLING FLANGE BLACK - Call your local BRP dealership | Includes 30 to 31

420958123

Unavailable

31

GREASE FITTING - Call your local BRP dealership

420499113

Unavailable

32

SOCKET SCREW M8 X 20 - Call your local BRP dealership

205082060

$1.74

33

PISTON WITH 2 RINGS 87,88 MM - Call your local BRP dealership | Includes 33 to 34

420889045

$147.66

33

PISTON OVERSIZE 88,13 MM - Call your local BRP dealership | Includes 33 to 34

420889046

$156.89

34

RECTANGULAR RING - Call your local BRP dealership

420815267

$40.74

34

RECTANGULAR RING, OVERSIZE - Call your local BRP dealership

420815268

$40.74

35

Loctite 243, 10 ml

293800060

$20.77

36

Sealant Loctite 648

219703000

$35.72

37

Dow Corning 111, 150 g

413707000

$57.82

38

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Synthetic Grease, 400 G

293550010

Unavailable
